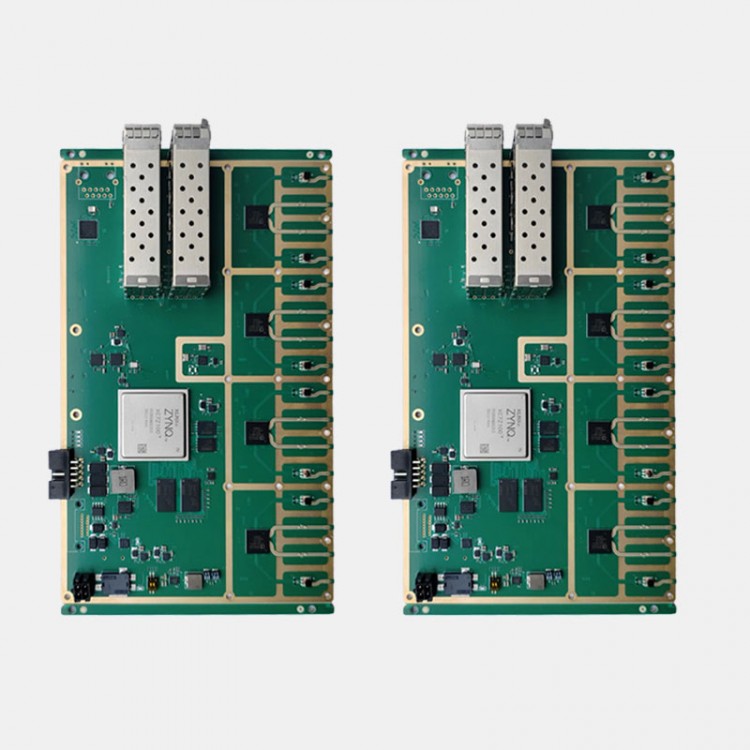

2PCS HAMGEEK F440 70MHZ-6GHZ SDR Development Boards w/ ZYNQ7Z100 8TX 8RX Channels 1GB DDR3 & 4 AD9361

Features:

- 2pcs HAMGEEK F440 SDR development boards
- Using Using material for Rogers
- 8 TX, 8 RX and multi-channel synchronization
- Support OEM customization. Please contact customer service for details

Specifications:
- Brand: HAMGEEK
- FPGA: ZYNQ-XC7Z100-FFG900
- RF chip: AD9361*4
- Memory: 1GB 32 Bit DDR3
- Interface: 1G-ETH/SD-CARD/UART/SFP
- SMA: 8 TX and 8 RX
- Hardware frequency range: 70MHZ-6GHZ
- Signal bandwidth: 200KHZ-56MHZ

More Detailed Parameters:
1. Basic Index Requirements:
(1) Number of RF transceiver channels: 8 TX and 8 RX;
(2) Number of AD9361: 4 pieces;
(3) Optical module requirements: 10Gbps optical modules*4;
(4) FPGA requirements: Use XC7Z100 FPGA;
(5) Ethernet requirements: One Gigabit Ethernet on the PS side;
(6) Other external interfaces: One RS485, one UART, one FPGA JTAG download port;
(7) RF receive link gain: Use the original gain of AD9361;
(8) RF transmit link gain: Use the original transmit power of AD9361;
(9) RF receive link characteristics: Consistent with the receive channel characteristics marked in the AD9361 official website manual;
(10) RF transmit link characteristics: Consistent with the transmit channel characteristics marked in the AD9361 official website manual;
(11) Isolation between RF channels: >50dB. The RF channels are isolated by adding partition walls;
(12) The boards adopt the mixed pressure method of surface layer Rogers4350B + middle layer FR4;
(13) The RF signal input and output interfaces are extended to the edge of the board with microstrip lines, which is convenient for the SMA on the external structure to pass through the wall and overlap on the PCB;
(14) Power input: DC12V±2V/3A;
(15) Software driver requirements: drive AD9361 and drive optical port.

2. External Interface Sockets and Dimensions:
(16) RF input and output: SMA-K. Use SMA-KFD with flange type socket to pass through the cavity and overlap solder on the PCB;
(17) Optical port socket: SFP;
(18) Ethernet socket: RJ45;
(19) Power socket: feed-through capacitor;
(20) FPGA debugging download port socket: 6-core 2.54 bent pin socket (extending from the edge of the board);
(21) RS485, UART socket: J30J-15;
(22) External dimensions: A metal external structure is required. Overall dimensions: 200×120×45mm, with sockets available on three sides.

3. Environmental Characteristics:
(23) Temperature: Operating temperature: -40℃ to 70℃; storage temperature: -10℃ to 50℃;
(24) Relative humidity: Operating relative humidity: ≤80%RH (non-condensing); storage humidity: ≤85%RH (non-condensing);
(25) Waterproof characteristics: None;
(26) Vibration characteristics: Execute GJB 8481-2015 standard;
(27) Electromagnetic compatibility requirements: Under working conditions, the electromagnetic emission and conduction of the equipment must comply with the requirements of Group 1 equipment in GB 4824-2013 Industrial, Scientific and Medical (ISM) Radio Frequency Equipment Characteristics Limits and Measurement Methods. In addition, under working conditions, the electromagnetic emission and conduction of the equipment will not affect the normal operation of the product under test, nor will it be affected by the product under test and other surrounding equipment.

Package Included:
- 2 x HAMGEEK F440 Development Boards

Packaging Details:
- Weight: 1.5kg

Note:
- The boards are custom products with a minimum order of 2 pieces and a production time of 15 days.
