2PCS HAMGEEK ZCU-102 Development Boards AD9361 MPSoC XCZU15EG + 2PCS FMCOMMS5 70MHz-6GHz AD9361 SDR

2PCS HAMGEEK ZCU-102 Development Boards AD9361 MPSoC XCZU15EG + 2PCS FMCOMMS5 70MHz-6GHz AD9361 SDR

HAMGEEK ZCU-102:
Features:
- 2pcs HAMGEEK ZCU-102 SDR boards
- Embedded software radio processing platform
- Powerful programmable logic resources
- Rich external interface capabilities
- Can run Ubuntu desktop system

Specifications:
- Reset Management Chip: MAX16025 for ADI (refer to ZCU102)
- Processing Chip: SOC chip xczu15eg-ffvb1156-2-i for AMD
- PS DDR4: DDR4, 4GB, 72/64bit, 2400Mbps
- PL DDR4: DDR4, 2GB, 32bit, 2400Mbps
- PS QSPI: 64MB
- PS eMMC Capacity: Not less than 32GB
- Power Supply Capability: Core not less than 50A (PS: 10A + PL: 40A. Power supply can refer to ZCU102)
- NVMe Interface: M.2
- Network Interface Chip: DP83867IR (refer to ZCU102)
- FMC Interface: 2 HPC (LA+10GT, refer to ZCU102, and 8GT expanded to 10GT)
- GTH Allocation:
  * GTH228 (all) + GTH229 (all) + 2GT from GTH230 allocated to HPC0; the remaining 2GT from GTH230 allocated to 2 SFP28 ports.
  * GTH129 (all) + GTH130 (all) + 2GT from GTH128 allocated to HPC1; the remaining 2GT from GTH128 allocated to 2 SATA ports.

Detailed Introduction to ZCU-102 Parameters:
1.1 Processing Module Functional Requirements:
- Possess computer host functionality and be capable of running the Ubuntu desktop system;
- Have power-on reset and system reset management functions. Able to connect to an external short-circuit button to achieve reset functionality;
- Feature monitoring of key point temperatures, voltages, and other statuses;
- Boast powerful processing capabilities, specifically the ability to perform large-scale signal processing through programmable logic;
- Offer a rich set of external interfaces, including network ports;
- Support the ability to update the processing module program online.

1.2 Channel Module Functional Requirements:
- Support 4 channels of RF reception and 4 channels of RF transmission;
- Include frequency reference input and frequency reference output capabilities;
- Feature monitoring of key point temperatures and voltages.

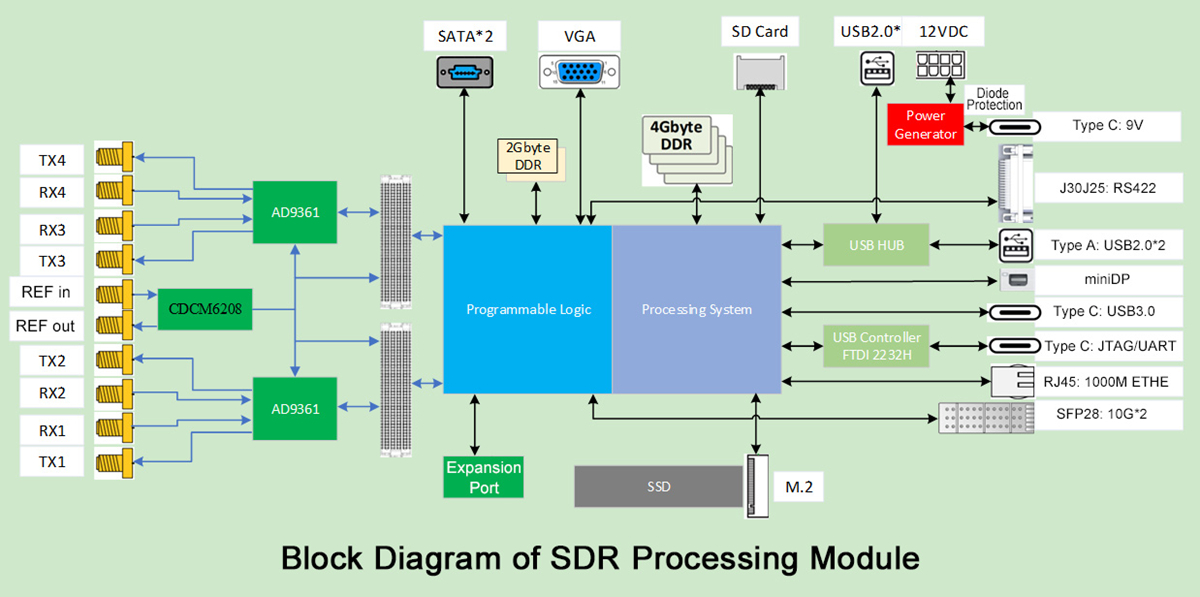

1.3 External Interfaces of the Processing Module:
- 10 Gigabit Optical Port: SFP28, 2 ports;
- Gigabit Ethernet Port: RJ45, 1 port;
- JTAG/UART Debugging Port: Type C, 1 port;
- USB 3.0 Interface: 3.0, Type C, 1 port (GTR1);
- Display Interface: miniDP, 1 port (external GTR2 & 3);
- RS422 Interface: J30J, 1 port;
- USB 2.0 Interface: Type A, HUB, 4 ports (2 external, 2 internal);
- Display Interface: VGA, 1 port (internal);
- Hard Drive Interface: M.2, 1 port (internal GTR0);
- Hard Drive Interface: SATA, 2 ports (GTH);
- SD Card Interface: TF card slot, 1 port (internal);
- Power Interface: 2 ports, 9~36VDC, external Type C, internal DIP;
- Internal Expansion Port: 1 port.

FMCOMMS5:
Features:
- 2pcs HAMGEEK FMCOMMS5 SDR boards
- Supports external clock input and output
- Standard FMC design
- Low phase noise
- The RF daughter board can be used for radar and signal detection

Specifications:
- RF chip: AD9361*2
- Interface: LVDS
- SMA: 4TX & 4 RX
- Hardware frequency range: 70MHZ-6GHZ
- Signal bandwidth: 200KHZ-56MHZ

Package Included:
- 2 x HAMGEEK ZCU-102 SDR
- 2 x HAMGEEK FMCOMMS5 Boards

Packaging Details:
- Weight: 2kg

Note:
- The boards are custom products with a minimum order of 2 pieces and a production time of 15 days.
- SD card is not included.
