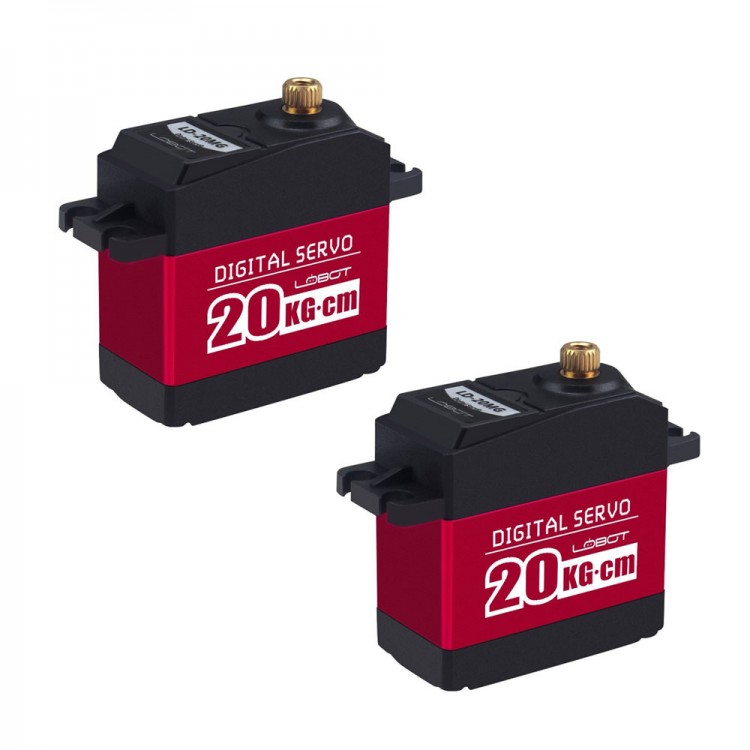

2PCS LewanSoul LD-20MG Metal Gear Standard Digital Servo with 20kg High Torque for Robot RC Car

2PCS LewanSoul LD-20MG Metal Gear Standard Digital Servo with 20kg High Torque for Robot RC Car

Attention: Please make sure that the duty cycle of the controller you are using conform to our specifications,otherwise the servo can't turn up to claimed degree.

Product description:
- 20kg large torque.20 kg.cm (277.6 oz.in)@6.6V.

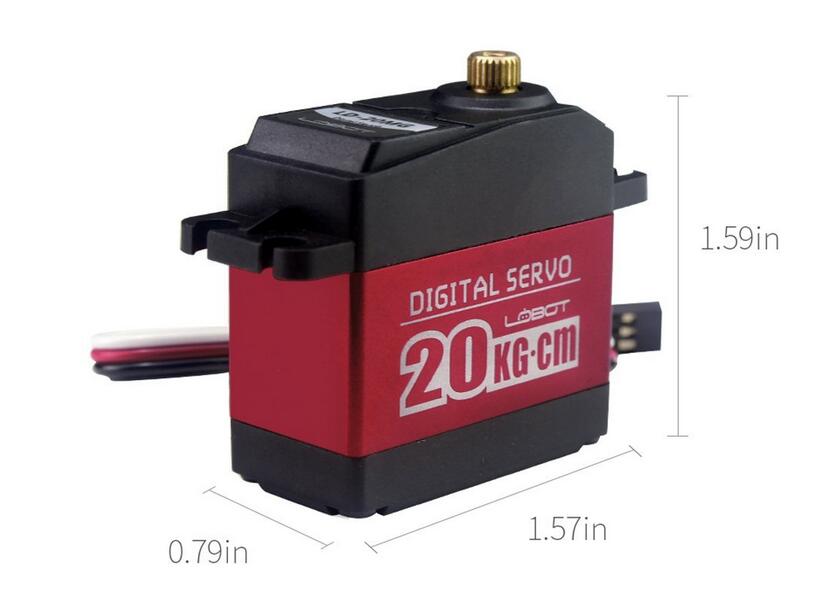

- Dimension: 40x20x40.5mm(1.57x0.78x1.59inch)

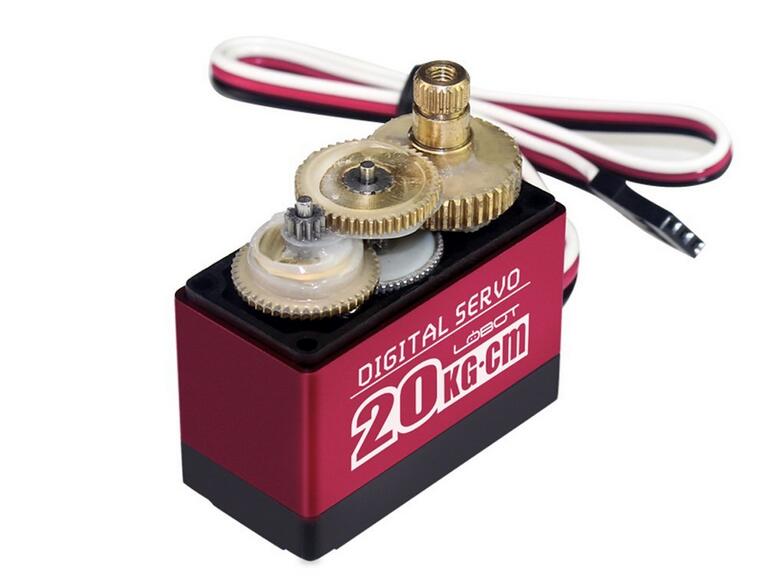

- Full metal gear.it's better for accuracy,service life has been greatly increased

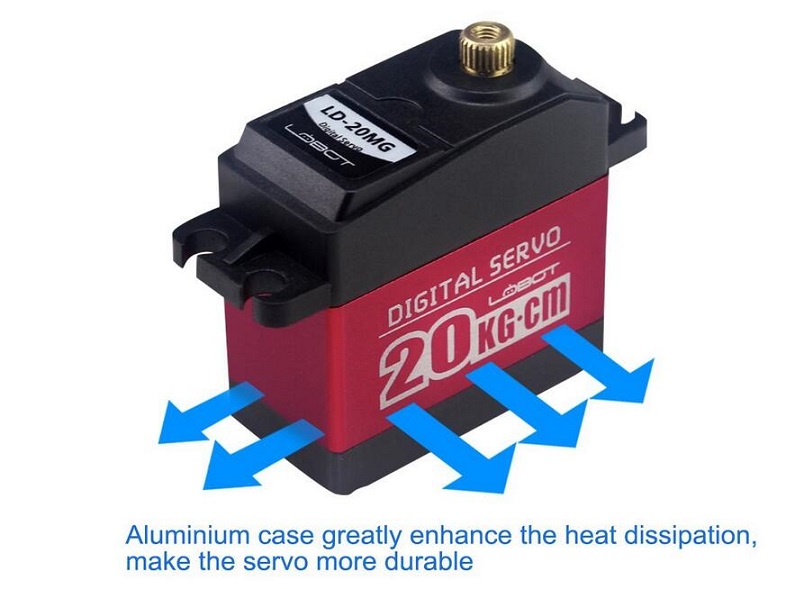

- Aluminium Case.Enhance the heat dissipation,ensure that servo motor can work well
- Using high-precision potentiometer with new design.Accuracy and linearity have been greatly improved.Accurate movement can satisfy the needs of making robots.

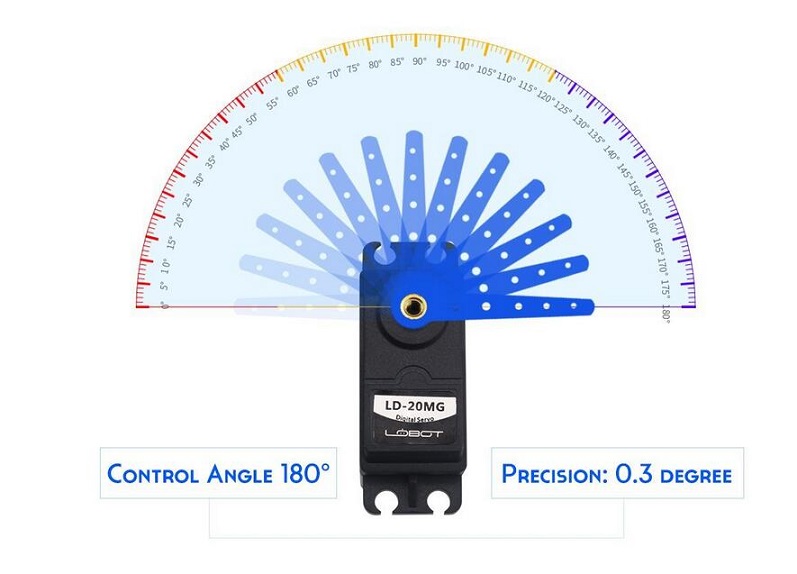

- 180 degree rotation.Controllable angle range from 0 to 180 degrees,Excellent linearity,precision control.Can be rotated within 360 degrees when power off

Specifications:
- Weight: 65g(2.32OZ)
- Dimension: 40x20x40.5mm(1.57x0.78x1.59inch)
- Speed: 0.16sec/60°(7.4V)
- Torque：20 kg.cm (277.6 oz.in) @6.6V
- Working Voltage: 6-7.4V
- Min Working Current: 1A
- No-Load Current: 100mA
- Spline: 25T(6mm in diameter)
- The servo wire: 30cm(11.8inch) in length

Control Specifications:
- Control Method: PWM
- Pulse Width: 500~2500
- Duty Ratio: 0.5ms~2.5ms
- Pulse Period: 20ms

Note:Please be sure to avoid locked-rotor when using servo,locked-rotor means that artificially or machine obstructs the servo to rotate normally,the locked-rotor will lead to internal current increased to more than 7 times and the temperature increases,servo will burn out.

Notice for use:

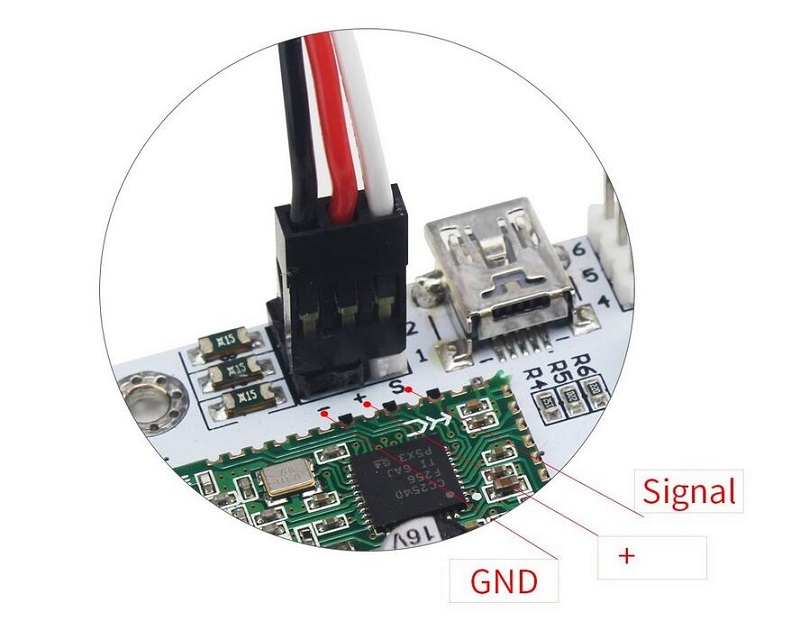

1.Connect GND is necessary.
2.It's recommended that use lithium polymer battery with high rate discharge(min 5C),please don't use dry battery.
3.Please use a short and thick power cord,don't use Dupont cord
4.Not compatible for redcat thunder drift rc car

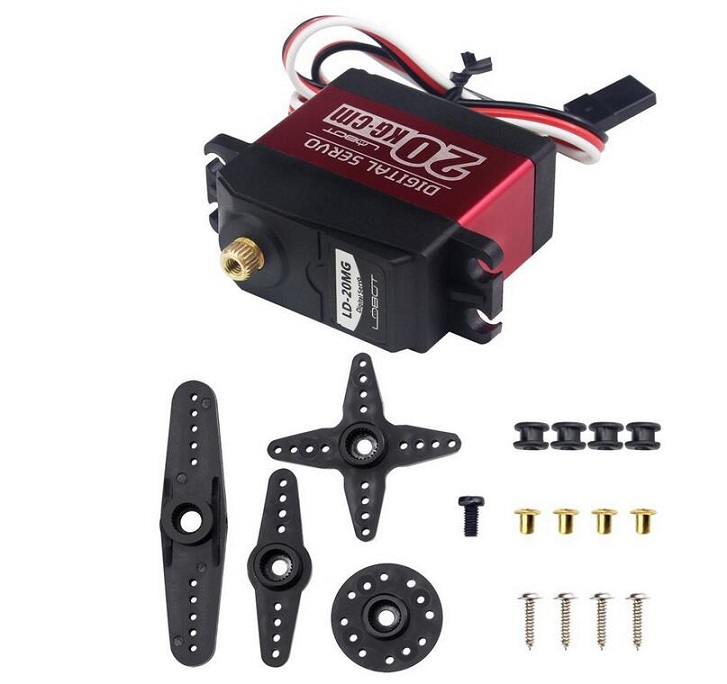

Package  List:
- 2 x Digital servo
- 2 x Servo horn kit
