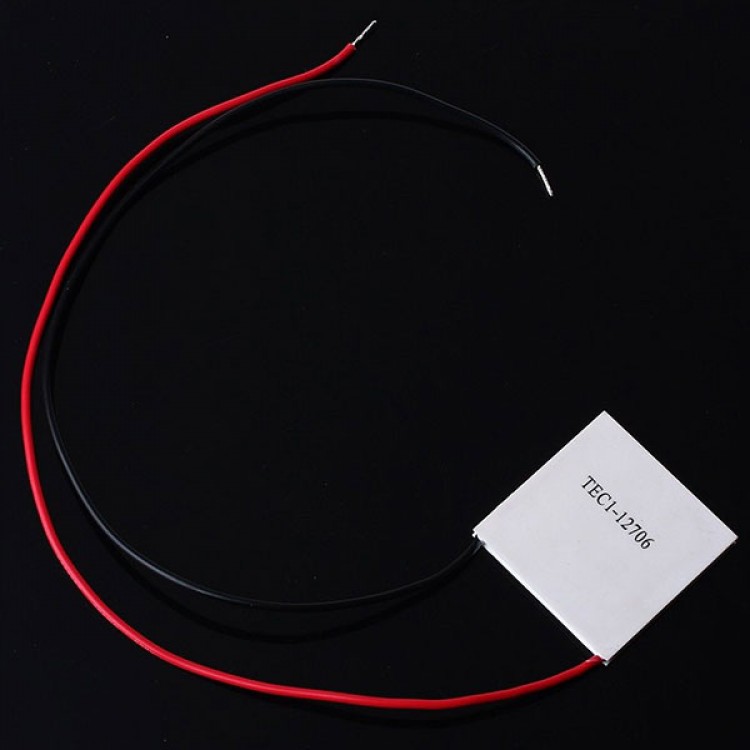

2pcs/lot 12V 60W 5.8A TEC1-12706 Heatsink Thermoelectric Cooler Cooling Peltier

Features:

- Model: TEC1-12706

- Size: 40mm x 40mm x 3.8mm

- Voltage     : 12V

- Umax (V)    : 15V

- Imax (A)    : 4.3-4.6A

- QMax (W)    : 50-60W

- Power Cord   : 300mm

- Working Temperature: -55℃-83℃

- Color  : White



Installation

- Cooling piece is very simple to install and use. Before installation, to find a dry cell, connected to the two leads of the cooler, obviously cold you can feel at one end and the other end of fever, remember that the polarity of the lead and determine a good cooler cold and hot end. If you want to get a bigger system Ling, it is recommended that two cooling mode, with two stack up with the above, a grim absorption following a fever, the experiments prove two refrigeration effect is much better than the single-stage, the condition can choose three, of course, have a large power supply support.



How to Use:

1. Prepare five things, Thermoelectric Cooler + heatsink + Grease + potholder + power.

2. Coated with silicone grease on both sides of the thermoelectric cooler.

3. Place the thermoelectric cooler on a heat sink with a potholder in the middle.

4 Tighten the screws. Powered, and it starts cooling.



Package included:

2pcs/lot



Note: heat side requires heat sink all the time.
