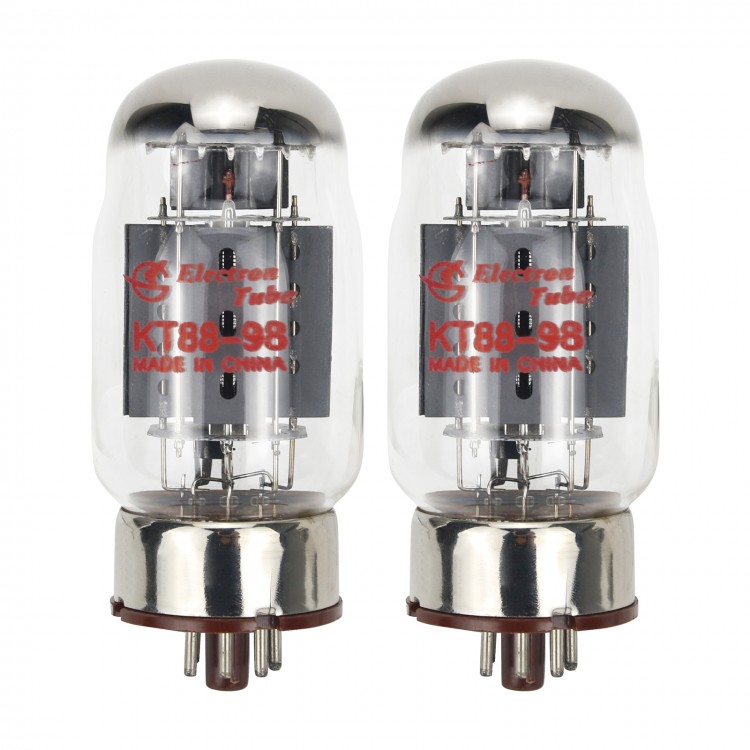

2PCS Shuguang KT88-98 Electron Tube Audio Vacuum Tube Replace 6550 CV5220 Fit Tube Amplifiers
Description:
KT88 series include KT88, GEKT88, KT88-98, KT100, CV5220, 6550A-98. This tube belongs to the indirectly heated cathode beam tetrode. Mainly used for models with higher audio power, for push-and-change output. Lower power consumption of KT88 and GEKT88 is 40W. KT88-98, KT100, CV5220, 6550A-98 boards can consume up to 45W, which is very suitable for ultra-linear tube amplifier circuits, with good voltage resistance, strong power, and wide range of sound. Design and technology of noise suppression and vibration resistance are adopted. The annual sales volume of this kind of products is between 80,000 and 100,000, which is popular with customers.
The anode limit dissipation power of the beam power tetrode KT88 is 42W. In an audio amplifier, 100W can be obtained when the two tubes are used as AB1 push-pull output. At the same time, KT88 can also be used in electronic voltage regulator circuits. KT88 is similar to CV5220 and 6550 and can be used interchangeably.
Package Included:
- 2 x Electron Tubes
