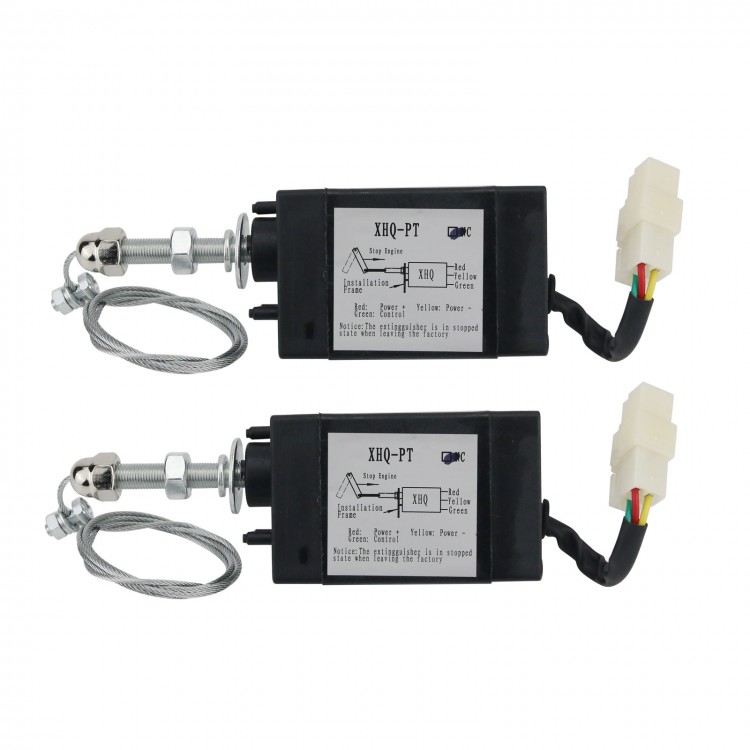

2pcs XHQ-PT Diesel Generator Engine Stop Solenoid Valve Flameout Device DC 12V Power Off Pulling Type

2pcs XHQ-PT Diesel Generator Engine Stop Solenoid Valve Flameout Device DC 12V Power Off Pulling Type

Version Introduction:
Normally Closed Type: The flameout device will act when control line is powered off, and will stop automatically when the action is in place. The flameout device is released after the control line is energized. That is, pull tight after power off, release after power on.

Used for shutdown control of diesel engines, suitable for different types of diesel engines.

Specifications:
- Rated voltage DC 12V or DC 24V
- Working current: ≤0.5A
- Action time: ≤1.5S
- Rally: ≥150N
- Working stroke: 45mm±5mm/1.8"±0.2"
- Ambient temperature: -40℃ to 105℃/-104℉ to 221℉
- Service life: ≥ 50,000 cycles
- Wiredrawing length: 100cm/39.4" (specific length can be customized according to needs)

Advantages:
1. Small Working Current: When pulling 150N, the flameout current is ≤0.5A, and the stroke length is about 50MM/2" (the pulling force of ordinary similar products is 100N, and stroke is about 40MM/1.6").
2. Leading Technology: The working time to cut fuel supply to stop is ≤1.5 seconds, and the machine will stop automatically when the work is in place; the internal relay is controlled by the travel switch.
3. Long Service Life: It can work for more than 50,000 cycles under normal use.
4. Small Size & Easy Installation: It can be directly installed on fuel injection pump, or it can be equipped with a flexible shaft and steel wire rope assembly, and choose an appropriate location for installation.
5. Sophisticated Material: The shell material boasts high strength, high hardness, flame retardant and antifreeze, impact resistance, aging resistance, etc.
6. Low Price: The price is much lower than that of shut-off solenoid valve used in large quantities on the market, which can reduce the production cost.

Package Included:
- 2 x Engine Stop Solenoids
