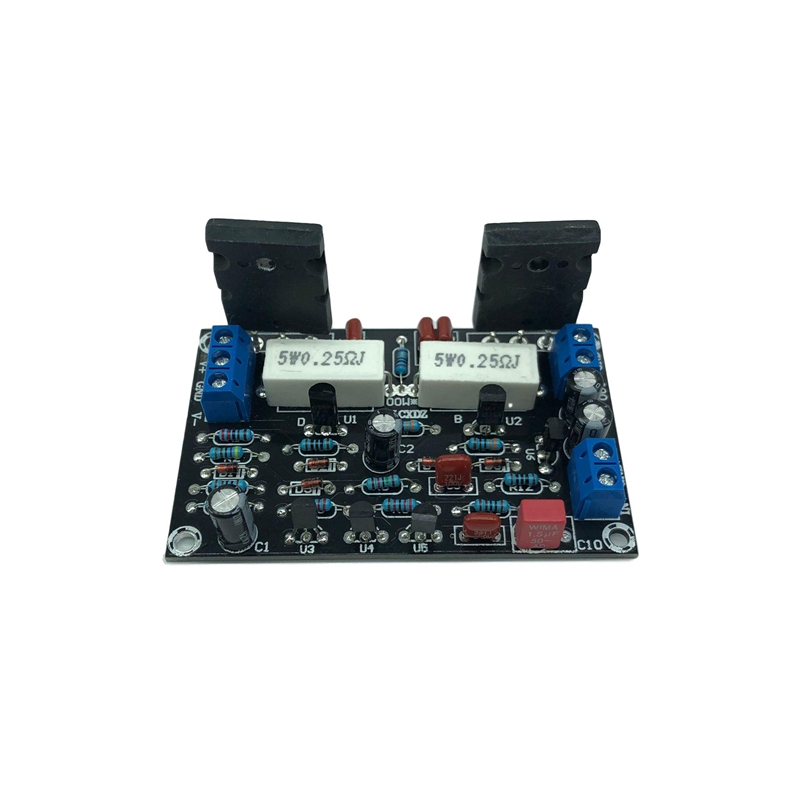

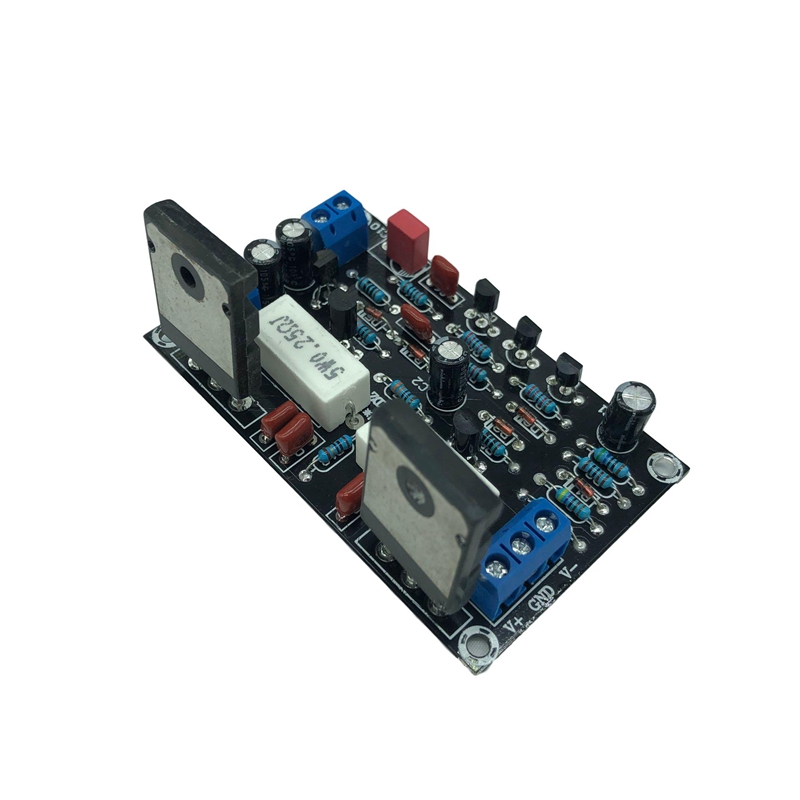

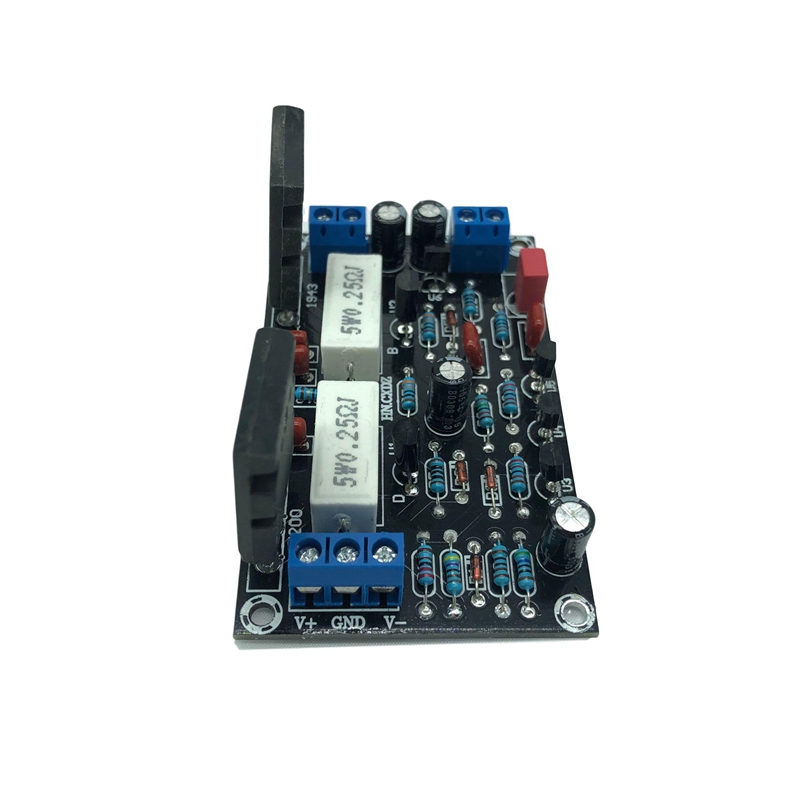

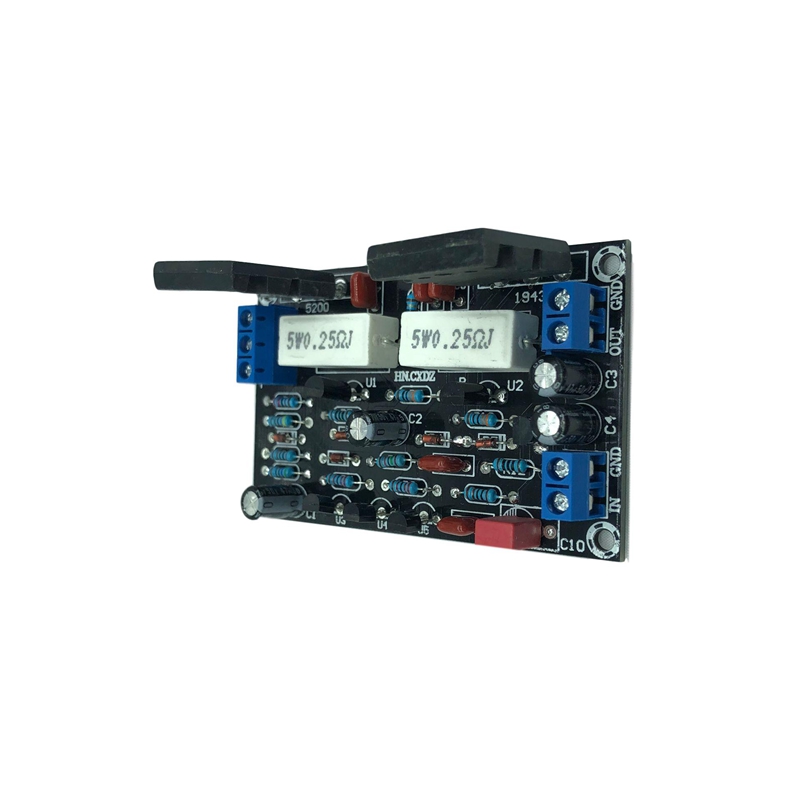

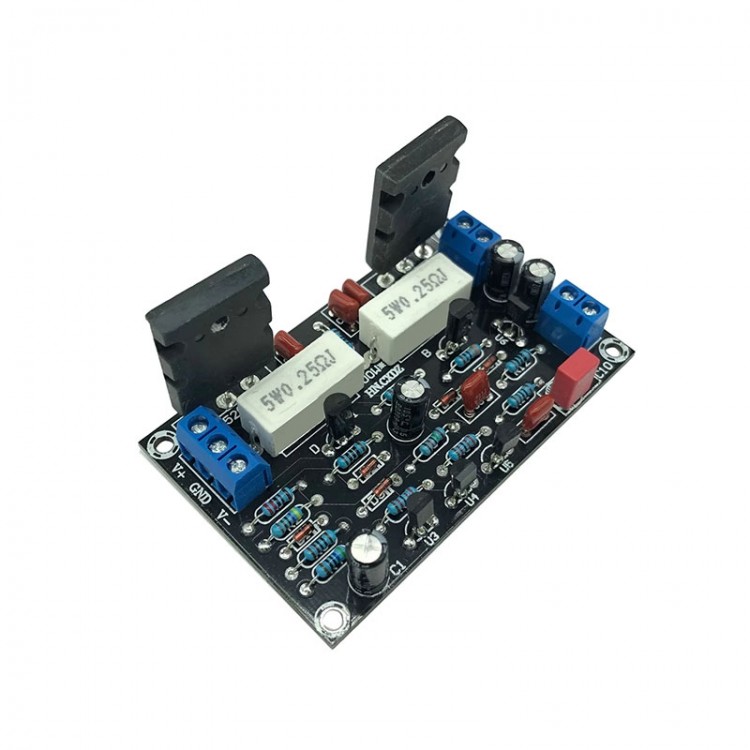

2SC5200 Power Amplifier Board 100W High Power Single Channel Amplifier Module for Toshiba Disassembly Parts+2SA1943

2SC5200 Power Amplifier Board 100W High Power Single Channel Amplifier Module for Toshiba Disassembly Parts+2SA1943

Features:
- The on/off noise is low and will not have a significant impact on the speaker. However, it is still recommended to add a speaker protection circuit. The speaker protection circuit can not only eliminate the impact noise of the power amplifier on/off, but also prevent the output DC from burning the speaker when the power amplifier is damaged.
- The background noise is very low, when your ear is close to the speaker, you can hardly hear the noise, which can be ignored.
- The zero drift voltage is small and does not require any debugging after installation. The output zero drift voltage generally does not exceed 50mV and is relatively stable.
- Due to the use of classic circuits, the work is stable and reliable, and some misoperations during production may not necessarily damage the components. It has a certain degree of durability and a high success rate in production.
- No debugging required. As long as you install correctly and make no mistakes, it is basically a one-time success without any debugging, and beginners also have a very high success rate.

Specifications:

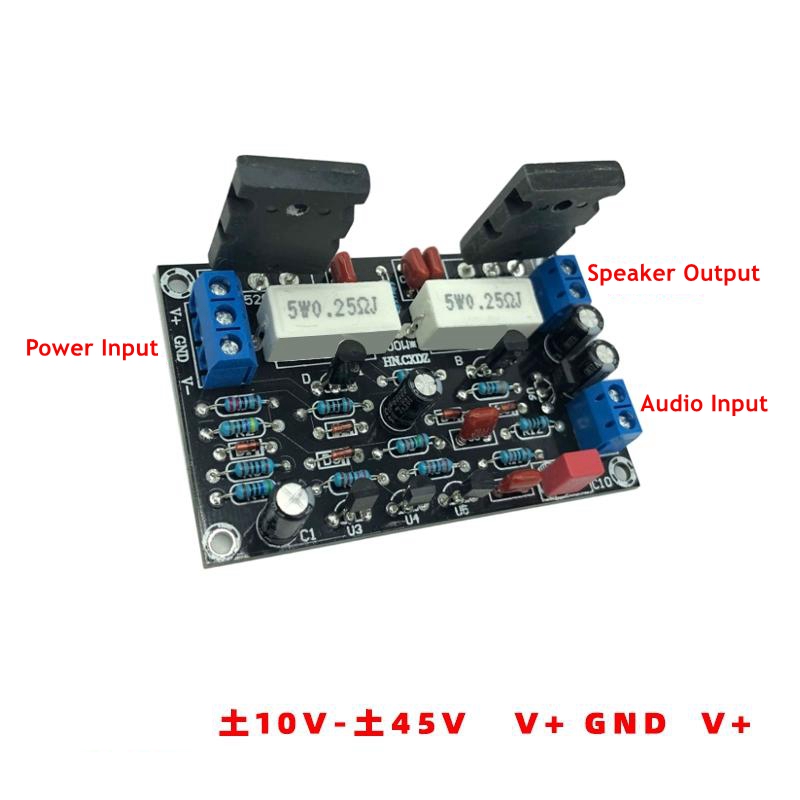

- Operating voltage: Dual DC ±10 ~ ±45V
- Rated output power: 100W(4ohm ± 35V)
- Maximum output power: 150W (4ohm ± 45V), enormous heat, which is not recommended.
- Input and output space: 5.08mm
- Hole distance between two power tube: 47mm

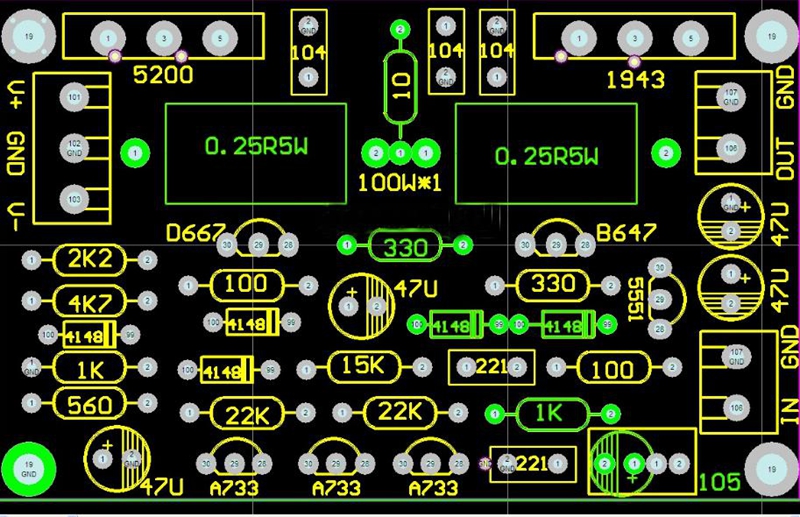

- Size: 8 x 5cm/3.15 x 1.97inch
- Power tubes: 2SC5200 + 2SA1943 (disassembly parts)

Note:
- Please allow 1-3mm error due to manual measurement.
- Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thanks for your understanding.

Package Included:
- 1 x Amplifier Board
