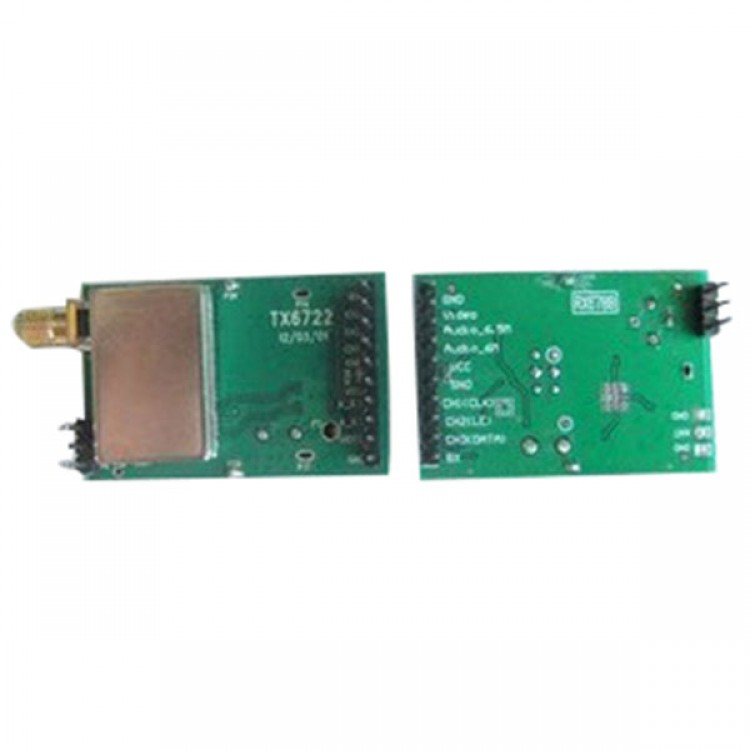

2W 2.4G High Power Wireless Audio and Video Transmitter+Receiver RX TX Module
Description
Launch module:
- Model: TX6722
- Operating frequency: 2.4 GHZ
- Power: 2 w
- Channel: 8 ch
- Working voltage: 5 v
- Current consumption: 600-800 ma
- Dimension: 45 * 28 * 10 mm
- Launch distance: empty around 1000-2000 m
- Transmission along the two way audio video, stereo
- TX6722 is work in 2414-2468 MHZ FM audio and video in the ISM band receiver demodulation module. - Module USES single chip design, the chip integrated VCO, PLL, broadband FM FM audio video demodulation, demodulation and the module of small low power consumption high sensitivity characteristic; Take the patch or plug-in package form, convenient installation requirements of users.
- The application of the module simply connect the power supply, single/double audio line, video line, connected to the antenna can receive music, image signal.
- Frequency of two groups of eight channel optional, easy to avoid the interference frequency
Frequency range:
CH 1 = 2414 MHZ CH 2 = 2432 MHZ
CH 3 = 2450 MHZ CH 4 = 2468 MHZ
CH 5 = 2390 MHZ CH6 = 2490 MHZ
CH7 = 2370 MHZ CH8 = 2370 MHZ
- Broadband FM modulation mode: FM
Receiving module: RX6788
- RX6788 is work in 2414-2468 MHZ FM audio and video in the ISM band receiver demodulation module. - Module USES single chip design, the chip integrated VCO, PLL, broadband FM FM audio video demodulation, demodulation and the module of small low power consumption high sensitivity characteristic; Take the patch or plug-in package form, convenient installation requirements of users.
- The application of the module simply connect the power supply, single/double audio line, video line, connected to the antenna can receive music, image signal.
- Performance indicators: Unit of measurement: slice
- Operating frequency: 2.4 GHZ
- Frequency of two groups of eight channel optional, easy to avoid the interference frequency
Frequency range:
- CH 1 = 2414 MHZ CH 2 = 2432 MHZ
- CH 3 = 2450 MHZ CH 4 = 2468 MHZ
- CH 5 = 2390 MHZ CH6 = 2490 MHZ
- CH7 = 2370 MHZ CH8 = 2370 MHZ
- Broadband FM modulation mode: FM
- The sensitivity of work: - 93 DBM
- Working voltage: 5 v
- Current consumption: around 150 mA
- Dimension: 45 mm * 30 mm * 4.8 mm
- Built-in frequency PLL high stability
- Low noise leak, can through the FCC and European CE (R&TTE) wireless authentication
- Directly output audio and video signals
- Patch installation, convenience for the user
Application
- DVD/DVB audio and video wireless transmission;
- baby monitor;
- engineering construction site image monitoring;
- wireless camera security systems;
- wireless video medical apparatus
- wireless visual reversing video transmission
- wireless video toys
- wireless doorbell
Package includes:
- Transmitter module x 1
- Receiver module x 1
