Features:
* Highly integrated, modular and combined design
* It adopts COFDM modulation technology and H.265 coding technology
* It can simultaneously transmit one-way analog video signal and one one-way data with a maximum rate of 230400bps
* Low latency: end-to-end latency is at least 120ms
* All-round communication and extremely strong diffraction performance
* High-speed inter-travel communication
* The heat sink type aluminum casing of the the transmitter is shockproof and impact-resistant
* For non-line-of-sight (NLOS) mobile transmission and ground transmission, when the transmission and reception height is 3 meters, the transmission distance is not less than 3KM. And the transmission distance under the visual condition is not less than 30KM (there is slight non-co-channel electromagnetic interference), and the longest distance can reach more than 100KM (the electromagnetic environment is clean)
* The maximum moving speed can reach 600KM/h (in tests)
* The receiver video signal is synchronously output in HD HDMI-compatible 1080P (multi-format optional), and the standard definition output DVD image quality
* The receiver supports recording and backing up video
* 128-bit AES encryption and decryption

Applications:
* Due to its extremely strong diffraction performance and high anti-interference ability of narrow band, this product is especially suitable for video transmission of low-altitude and high-speed UAVs and unmanned ground equipment.

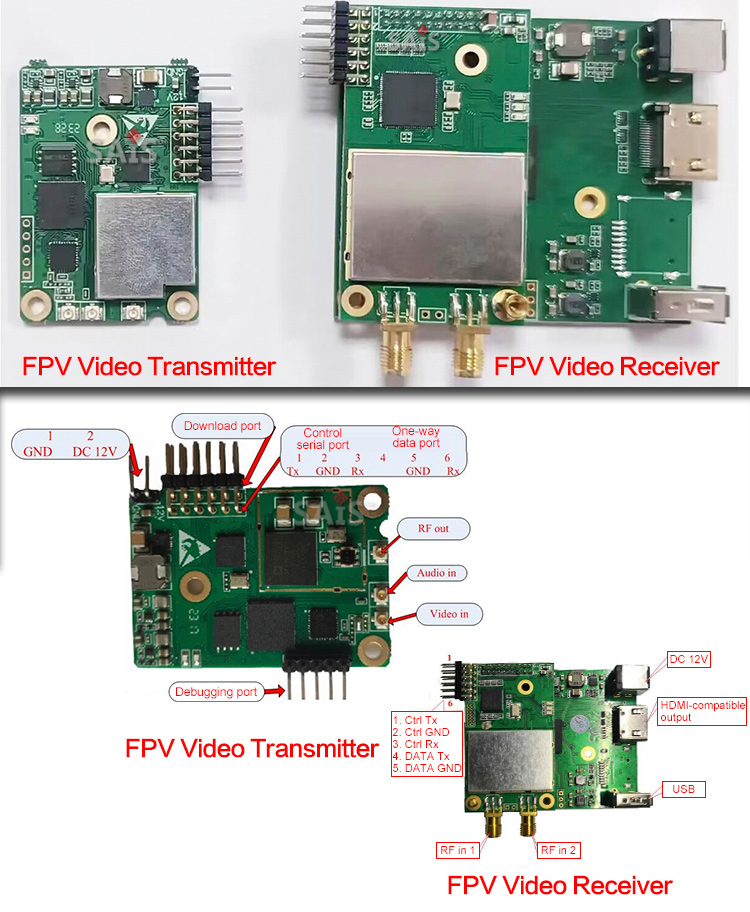

Transmitter Specifications (PCB Board Version):
* Modulation: COFDM
* Operating voltage: DC 11V~DC 18V
* Operating current of motherboard: 160mA
* Control interface : standard RS232 interface, 8-bit data bit, 1-bit stop bit, even check, baud rate : 19200
* Transparent data interface: a one-way transparent serial port transmission, 8-bit data bit, 1-bit stop bit, support odd check, even check and wireless check. Baud rates: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400
* Encryption: 128-bit AES encryption
* Modulation mapping: QPSK (4QAM), 16QAM, 64QAM (default is QPSK)
* Forward error correction: 1/2, 2/3, 3/4, 5/6 and 7/8 (default is 1/2)
* Protection interval: 1/32, 1/16, 1/8, 1/4 (1/32 by default)
* Number of carriers: 2K
* Frequency bandwidth: 2MHz/3MHz/4MHz/5MHz/6MHz/7MHz/8MHz adjustable (factory set to 2MHz)
* Transmission stream: 1200kbs~20000kbs adjustable (factory default is 1500kbs)
* Transmit power of the motherboard: -7dBm (average power)
* Transmission frequency: 170-2900MHz frequency is continuously adjustable, the step is 100KHz (the default parameter tuner is 1MHz), the frequency of the whole device needs to be customized
* Power flatness: less than 0.2dB in the band at 10MHz
* Shoulder ratio of motherboard: 52dB
* Second harmonic: ≤-65dB
* MER: 32dB
* Input video: CVBS: NTSC/PAL
* Video encoding format: H.265
* Video latency: End-to-end ≤ 120ms
* Motherboard size: 50mmx35mmx10mm
* Motherboard weight: ≤15g

Receiver Specifications (PCB Board Version):
* Attention: Do not connect the antenna of the receiver port directly to the receiver without passing through the sucker antenna interface
* Voltage: DC 12V power adapter
* Receiving frequency range: 170-860MHz VHF & UHF
* Frequency bandwidth: 2MHz/3MHz/4MHz/5MHz/6MHz/7MHz/8MHz, adjustable
* RF input level: -94dBm to 0dBm (at 8M bandwidth)/-98dBm to 0dBm (at 2M bandwidth)
* RF input impedance: 50 ohms
* RF input connector: SMA female
* Demodulation mode: COFDM
* Modulation constellation: QPSK, 16QAM, 64QAM (optional)
* Forward error correction: 1/2, 2/3, 3/4, 5/6, 7/8 (optional)
* Number of carriers: 2K
* Protection interval: 1/32, 1/16, 1/8, 1/4 (optional)
* Video transcoding: H.265
* Aspect ratio: 4:3; 6:9
* Video output: HDMI-compatible/CVBS
* Operating voltage: DC12V <0.3A
* Operating temperature: -35°C to 80°C
* PCB size: 80mm*60mm*16mm
* PCB weight: 0.1kg

Package Included:
* 1 x Set of FPV video transmitter and receiver boards

Packaging Details:
* Weight: 0.6kg

Note:
* Please install and screw antennas tightly before energizing, otherwise it is easy to burn the related equipment.
