Product Description:
- Environment:Technical parameters are valid in the following environment
- Temperature: 10 degrees Celsius - 30 degrees Celsius; in 5 to 40 degrees Celsius in the environment to ensure that the operation, the extreme temperature does not guarantee the rapid determination of moisture content
- Humidity: 80% - 15%, no condensation at 30
- Warm-up: moisture analyzer connected to the power supply and wait for at least 30 minutes. When it comes back from the standby state, the water meter can be used immediately.
- Power:Input AC voltage:200VAC - 240VAC,3A,50Hz±1Hz
Power supply load: the maximum power is 350W in the heating process
Protection: protection from dust and moisture, pollution levels: 2 class
Specifications:
- Model:3-110g
- Capacity (g):110g
- Readability accuracy (g):0.005g
- Repeatability:0.02-0.1%（≥3g）
- Suggested sample:3-10g
- Heating time:0-99min
- Drying parameter:water loss rate,drying rate
- Temperature regulation allowance:+-1℃
- Environment:10-40℃

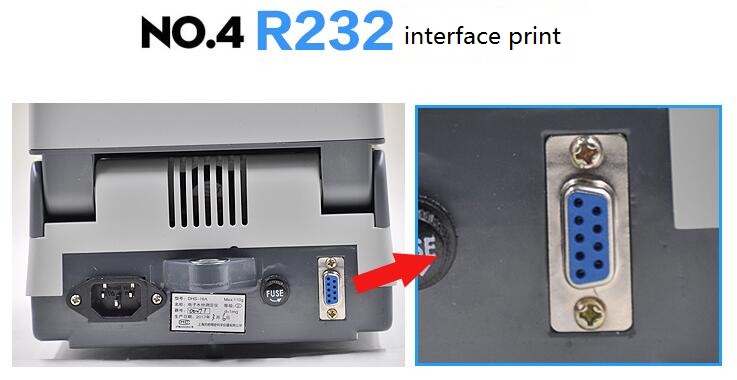

- Interface:RS232
- Heating Temp.:50℃ to 180℃
- Moisture:0-100%
- Pan:100mm
- Outline:330x180mmx140mm
- N./G. Weight:2.9kg/4.2kg

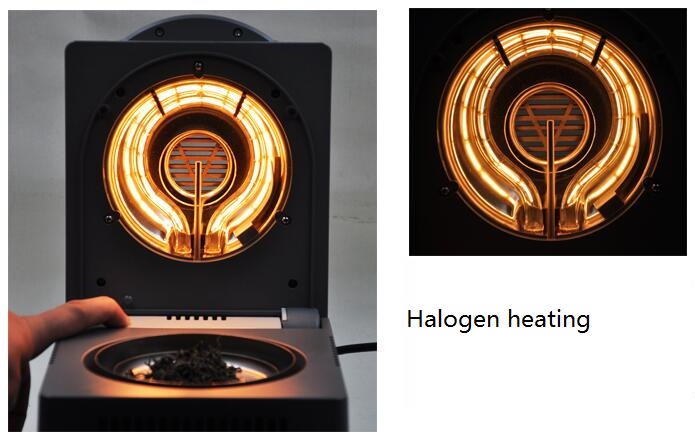

- Heating:Halogen
- Packing:47x31x33cm/carton
Installation of components:
1. Place wind proof cover
2. Place the sample tray support, rotate and position

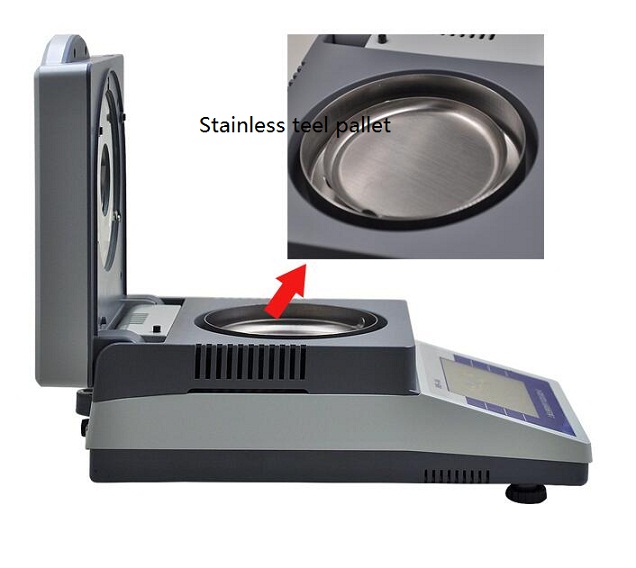

3. The stainless steel sample plate is flat on the said plate bracket

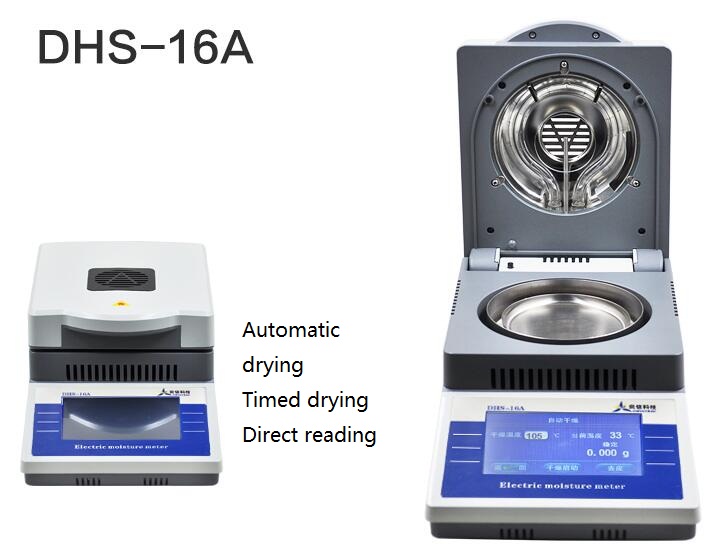

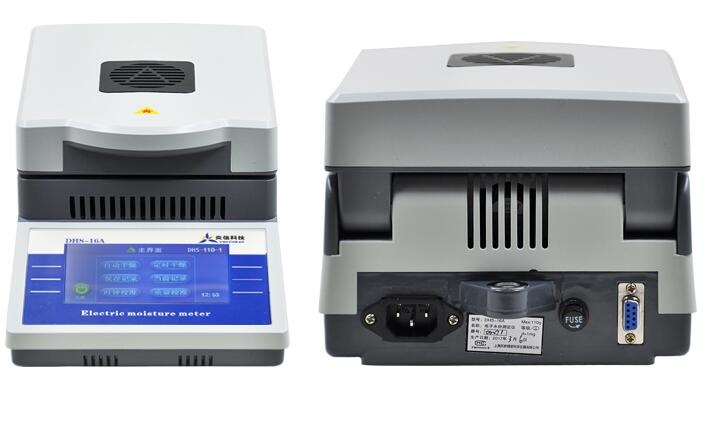

DHS16A Moisture Analyzer English Manual
Note:During the test, please do not change the size and frequency of the input power supply voltage (such as do not switch between 220V and 110V)

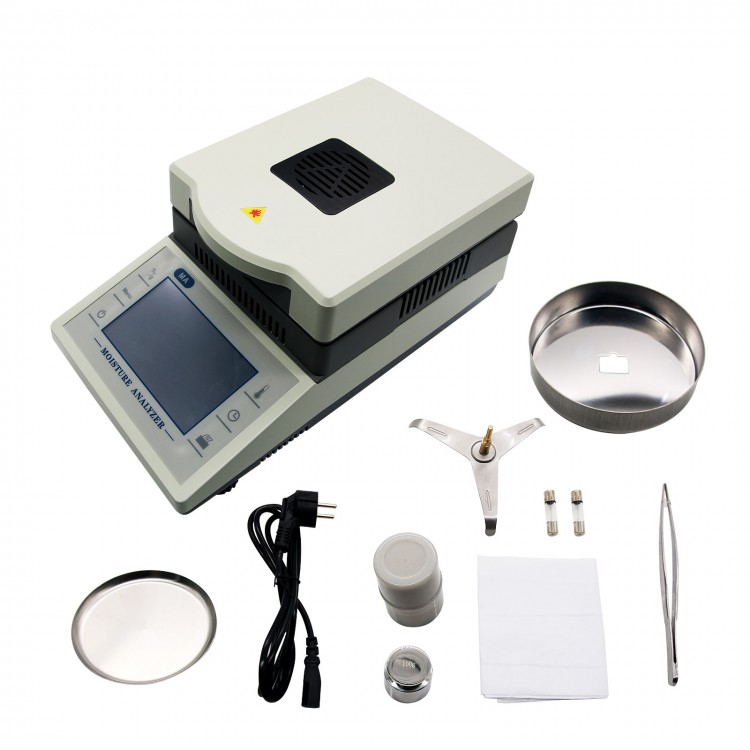

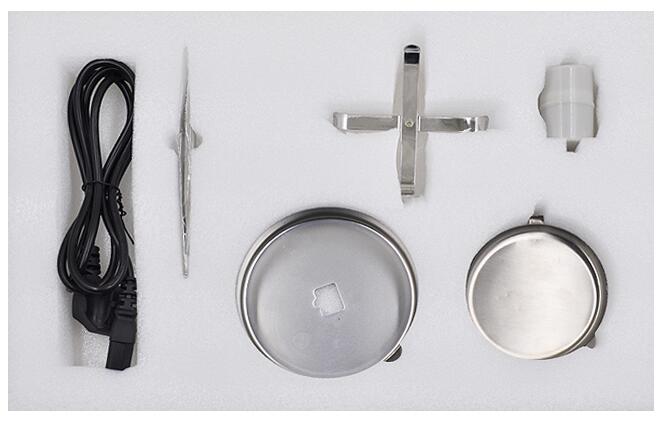

Package List:
- 1 x Machine
- 1 x Bracket
- 1 x Power cord
- 1 x Weighing plate
- 1 x Calibration weights 50g
- 1 x Tweezers
- 1 x Operation manual
