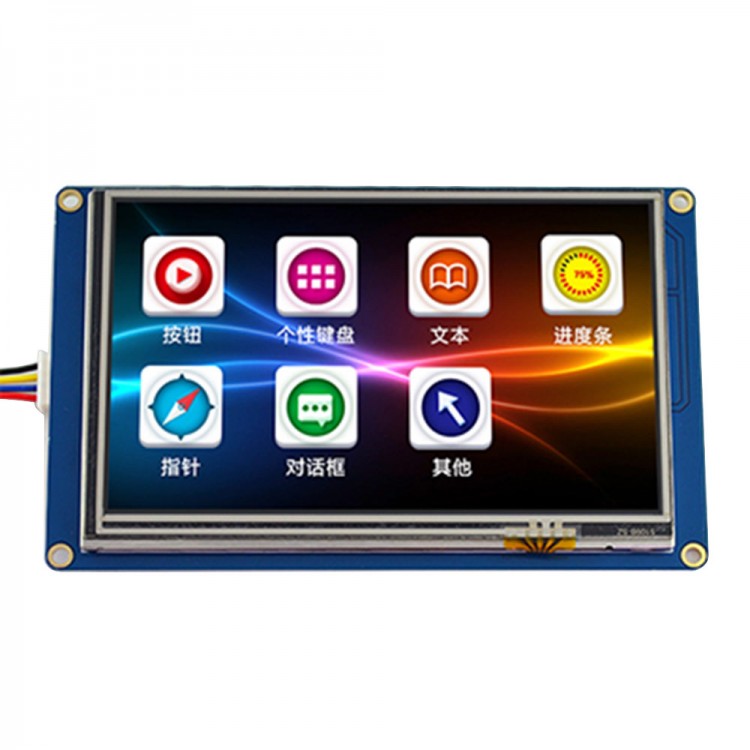

3.2" Smart USART UART Serial Touch TFT LCD Module Extension IO EEPROM 400x240 for Arduino
More information: Click here
Specification:
- Enchanced version
- Model: TJC4024K032_011R
- Touch: Resistive touch
- Resolution: 400*240
- 3.2 inch
- Communication interface: USART seriel port interface
- Interface level: 3.3V/ 5V TTL Level
- Operating voltage: 4.75-7V
- Operating temperature: -20~70 deg C
- FLASH: 16MB
- RAM: 3584 BYTE
Features:
- 16bit color RGB display
- Support button control/progress bar control/text control/ pointer control
- Can user-defined any Windows Font
- Support elementary GUI instructions
- Support picture format: BMP/JPG/JPEG/PNG
- Support computer software automatically upgrade,device firmware automatically upgrade
- Sleep mode, sleep current 20mA,support touch to wake up function
- Support seriel port download and SD card download,support PC for simulation debugging
Package List:
- 1 x LCD Module
