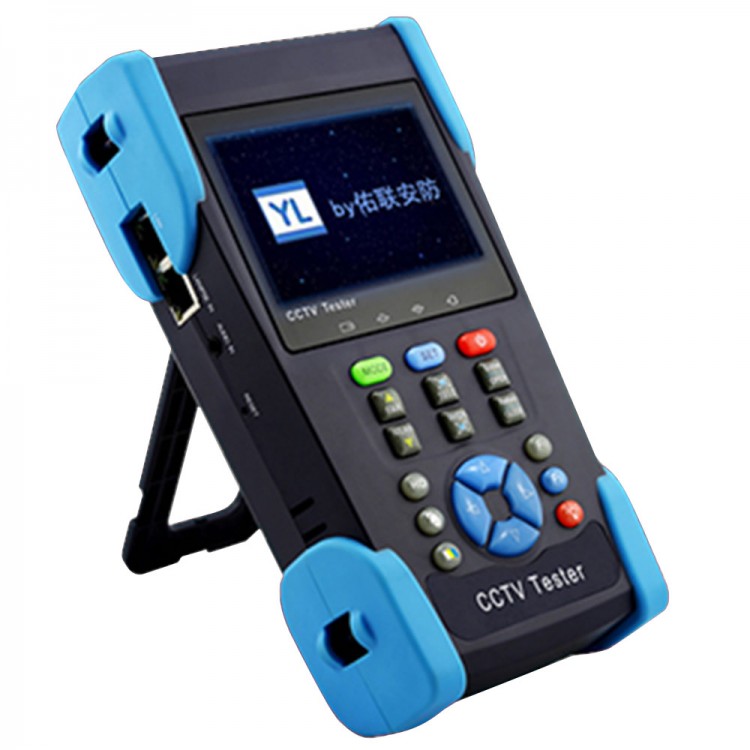

3.5" HVGA TFT LCD Screen 1080P HD Coaxial CVI Camera Test PTZ Control HD-2800D

3.5" HVGA TFT LCD Screen 1080P HD Coaxial CVI Camera Test PTZ Control HD-2800D

Description:
- Model: HD-2800D, HD-2800 with function D, D means CVI camera test.
- The new HD coaxial tester is developed for the On-Site installation and maintenance of coaxial camera, it also combine other functions analog camera test, video level meter, analog signal output, IP address scan, Ping, port finder, UTP test, digital multimeter ,optical power meter and TDR cable tester etc. Its portability, user-friendly design and many other functions make the IP tester an essential tool for all installers or technicians.

Features
- 3.5 inch HVGA TFT-LCD, 480x320 resolution
- HD-AHD camera test, video display, coaxial PTZ control, call coaxial camera menu to set parameter
- GVBS analog camera test and PTZ control
- Enhanced color bar generator
- Cable tracer (search BNC, UTP, telephone cable, etc)
- Visual fault locator
- Optical power meter
- Digital multimeter
- TDR cable breakpoint and short circuit test, means the functions are optional

Specification:
 - 3.5inch screen display, 480 (RGB)x320 resolution
- Low power consumption, working time lasts 11 hours
- LCD screen brightness/contrast/color saturation adjustable NTSC/PAL auto adjust
- AHD coaxial camera image display, coaxial PTZ control and call up the camera OSD menu
- Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator (Eight-system switchable, transmit/receive eight-system colorful images).
- LED Flashlight.
- HD coaxial control, PTZ control, color bar generator shortcut key.
- F1, F2 user-defined key
- Visual fault locator, to test fiber’s bending and breakage * (Optional)
- Digital Multi-meter, DC and AC voltage measurement, Resistance measurement Continuity test, Diode measurements, Capacitance measurement * (Optional)
- Cable tracer, by sending the audio signal, enables the blue cable tracer tester to find the    connected cable from messy cables. * (Optional)
- Ping test, PING is the most conventional network debugging tools; it is used for testing if the connected IP camera or other network equipment's Ethernet port is working normally and the IP address is correct.
- IP address scan The IP address scan can quickly search for connected IP cameras or another network device IP address
- POE Voltage tests the PoE voltage from a PoE switch. The unit will clearly display the voltage for each wire in an Ethernet cable.
- Port Finder, it will enable the installer to easily and quickly find the connected port for an Ethernet cable.
- Link monitor check if the new setting IP address is occupied.
- TDR cable test, TDR break-point and short-circuit measurement. * (Optional)
- PTZ control and PTZ protocol analysis
- Cable test, Test LAN cable or telephone cable, UTP cable etc, cable type and the sequence of wires will be displayed
- Support more than 30 protocols, such as Pelco-D, Pelco-P, SAMSUNG.
- Support RS232/RS485,rate 600 ~115200bps adjustable
- Built in Lithium Ion Polymer Battery (3.7V DC 3000mAh)
- Image display and data control integration
- Handheld HD coaxial tester, easy to carry and operation.
- Optical power meter, test fiber loss and value * (Optional)

Functions:
1. Video signal test
The new HD coaxial tester ,built-in high definition 3.5”LCD-TFT 480 (RGB)x320 resolution, view the image, easy and directly displays the camera image , support PAL/NTSCLCD screen brightness/Contrast/Color Saturation adjustable. Suitable for field construction and maintenance work

2. HD coaxial signal test
TVI, CVI, AHD coaxial signal test (optional), support 720p 25/30fps/ 1080p 25/30fps, the tester will display camera image, coaxial PTZ control and call up the camera OSD menu.

3. Video signal level test (Not for TVI CVI AHD test)
Test video signal strength attenuation, longer video signal cable will cause the image to be dim, and reduce the image dynamic range, video signal is too strong, it will cause the virtual shadow, and reduce the sharpness of the image. It also can real-display the video level value, if out of range, notices will be display in the screen.

4. PTZ controller
Display the input video images. Pan/tilt the P/T unit and zoom in/ out the image. Setup the controlling parameters like protocol, communication port, baud rate, PTZ ID, pan/tilt speed; set and call preset position.

5. Enhanced color bar generator
The tester sends out color bars via its BNC output to the monitor. This is used to test for a problem in the cable going from the camera back to the monitoring area

6. DC12V 1A output power
Power the camera with DC12V (1A) power output from the tester. It is helpful for demo and testing when the power supply is not available.

7. Audio testing
Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.

8. Cable tester
- Test LAN cable or telephone cable.
- Connect LAN cable or telephone cable with the HD coaxial tester and cable tester. And then the connecting status, cable type and the sequence of wires will be displayed, as well as the serial number of the cable tester kit.

9. PTZ controller
- Search the Control protocol code from Multifunction keyboard or DVR by RS485 /RS232 interface, test the PTZ control command data whether received anomaly and RS485/RS232 data transmission.
- Screen displays 16 hexadecimal codes such as
- PELCO-P: A0 00 (Add) xx xxxxxx AF xx
- PELCO-D: FF 01 (Add) xx xxxxxxxx

10. PTZ address scanning
Search up the ID of PTZ camera. Help the engineer search the speed dome address quickly.

11. Cable scan (Optional) *
Send the specific signal, easy to find the connected cable from the mess cable

12. Port finder
The tester will send signals to make the connected PoE port flicker at a set frequency. This will enable the installer to easily and quickly find the connected port for an Ethernet cable.

13. IP address san
The IP address scan can quickly search for connected IP cameras or another network device IP address.

14. Link monitor
To add an IP camera or other network device to the current network group, the new IP address must not be occupied; otherwise it will cause IP conflicts and stop the equipment normal working. Link monitor can check if the new setting IP address is occupied.

15. PING test
PING is the most conventional network debugging tool; it is used for testing if the connected IP camera or other network equipment is working normally and the IP address is correct.

16. PoE test
Test the PoE voltage from a PoE switch. The unit will clearly display the voltage for each wire in an Ethernet cable.

17. Visual fault locator * (Optional)
Visual Fault Locator with 650nm wavelength can emit red laser sources to test multi-mode and single mode fiber’s bending and breakage, and Continuous light-emitting and 1HZ, 2Hz modulating light output. It is indispensable tool in fiber project constructing, fiber net-work maintaining, optical component manufacture and research.

18. Digital multimeter (Optional)*
HD coaxial tester built in highly stable and reliable 33/4 digit (6600) digital multimeter. It is used for the DC and AC voltage measurement,AC and DC current measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement, Auto/Manual measuring range switching, relative value measurement and locking . It is easy operation and professionally accurate.

19. LED lamp
Press the LED On/Off button to use the LED flashlight.

20. HD coaxial, PTZ control and color bar generator shortcut key
HD coaxial, PTZ control and color bar generator shortcut key, easy to operate

21. F1, F2 User-defined shortcut keys
The user-defined shortcut key is designed for improving the efficiency for the engineer, anytime press, easy to operate.

22. TDR cable test * (Optional)
TDR cable testing, accurately measure BNC cable, network cable, controls cable's open circuit and short-circuits location. It greatly improves working efficiency

23. Optical power meter, test fiber loss and value * (Optional)
The IP camera tester adopts the most advanced handheld instrument specific integrated chip , achieve ultra-low power operation, with the 7 TFT-LCD High-definition screen display ,five wavelength calibration points 1625nm,1550nm ,1490nm , 1310nm , 1300nm , 850nm.Linear or nonlinear optical power display, it can measure the optical power value, and also be used for Relative measurement of optical fiber link loss.

Note: With sign“*”means functions are optional, Optional function need pay additional cost if asked to add any one of them in the tester

Packaging included :
- 1 x HD-2800D
- Accessories
