3.5 Inch LCD Display Touch Screen Kit w/ Case Heatsink for Raspberry Pi 3B/3B+

3.5 Inch LCD Display Touch Screen Kit w/ Case Heatsink for Raspberry Pi 3B/3B+

TFT features:

 1.LCD Type                         : TFT Transmissive  ---

 2.interface                           : spi(32MHZ)

 3.Number of Dots              : 320*(RGB)*480  Dots

 4.size                                    : 86.0*56.2mm

 5.Approx. Weight                : TBD  g

 6.Back Light                        : 6 White LED

7.Touch chip                       : xpt2046

 Interface Define:

24--GPIO7    --------> TP_CS

26--GPIO8    --------> LCD_CS

22--GPIO25  --------> TP_irq

23--GPIO11  --------> SPI_CLK

21--GPIO9    ---------> SPI_MISO

19--GPIO10 ---------> SPI_MOSI

5v           ---------> 5v

GND      ---------> GND

We will provide the image and driver,please contact us to get the download link,

HOW TO USE?(2 methods)

1.You can burn the image file to SD card .

2.Installation drive:

The LCD screen and raspberry pie development board connected correctly

copy the drive (LCD_show.tar.gz) to raspberry pi;

Decompression file            tar -xzvf LCD_show.tar.gz

Jump into the file                 cd  LCD-show

update system            sudo apt-get update

Install  driver              sudo ./LCD35_v1

then  after a few  seconds ,the system  will reboot

if you want to  use the HDMI ,you can use this cmd  sudo ./LCD_hdmi

Note: you must use this command sudo apt-mark hold raspberrypi-bootloader  before you update your system.

Then use the command,

sudo apt-get update

sudo apt-get upgrade

Otherwise it will fail after the restart

Note:other  Pins  are  NC;

Package include:

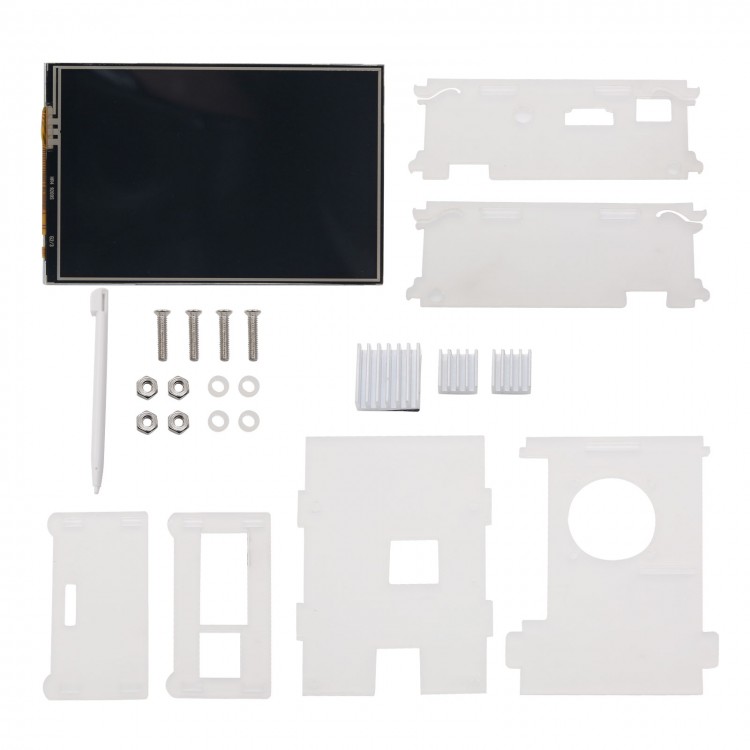

- 1 x New 3.5" TFT LCD Touch Screen Module

- 1 x Case

- 3 x Ceramic heatsink

- 1 x Touch pen

Note: Please note that it is not for Windows 10 system. Thank you!
