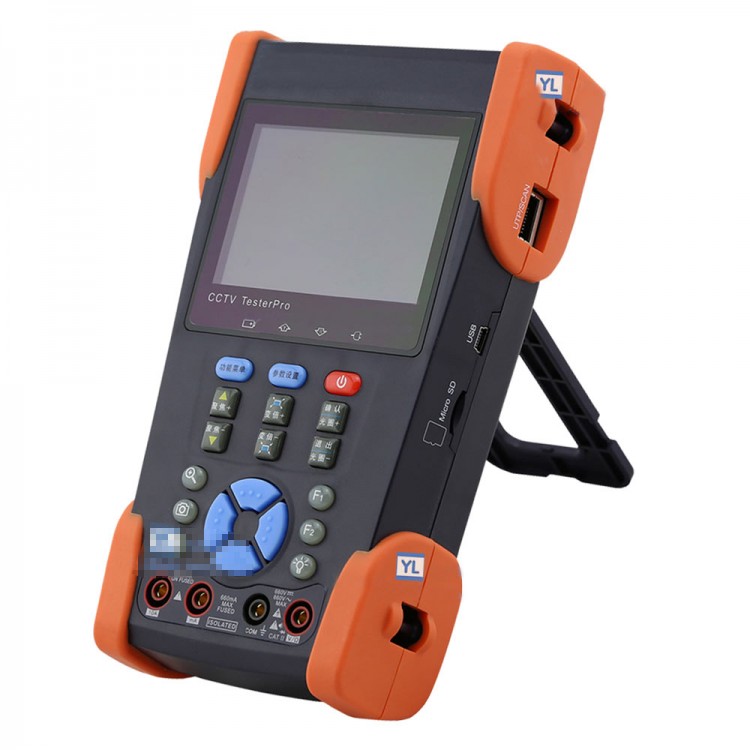

3.5" LCD CCTV IP Camera Tester Video Monitor PTZ Controller Optical Power Meter TDR HVT-E2611T
Description:
- This item is a multifunctional CCTV tester and video monitor, special designed for on-site installation and maintenance of analog camera and network devices. It is with functions of video display, PTZ control, video level meter, color generator, audio test, RS485 date searching and cable tester.
- The tester is also a great tool for cable test. It can display cable connecting status, cable type and the sequence of wires, as well as the serial number of the cable tester kit. Other functions include F1/F2 user-defined shortcut keys, DC12V output and much more.
- Its portability, user-friendly design and many other functions make the CCTV tester an essential tool for all installers or technicians.
Features:
- Portable and crashworthy design with 3.5in TFT LCD screen.
- Multiple languages supported: English, German, French, Spanish, Italian, Portuguese, etc
- F1/F2 user-defined shortcut keys, for common functions quick start.
- Analog CCTV camera test, image display, zooms, video record and playback, PTZ control, auto adapt and display the video format of NTSC/PAL
- Support more than 30 PTZ protocols, such as PELCO-P, PELCO-D, For SAMSUNG etc
- Enhanced color bar generator, (red, green, blue, white, black) for video transmission and image quality test
- Video signal test, For PEAK video signal level, SYNC signal level, Color burst chroma level measurement, test video signal attenuation
- Cable tester, can display cable connecting status, cable type and the sequence of wires, as well as the serial number of the cable tester kit.
- Support RS232/RS485, rate 600 ~ 115200bps adjustable
- PTZ protocol analysis, control protocol command displays to check whether RS485 transmission is normal, easy to find the fault device
- Port flashing, sending signal to make connected Ethernet switch port to flash
- Audio input for signal test from pickup devices
- IP address test, to ensure whether an IP address is occupied
- IP scan, easy locating for connected network devices
- Support ping test, DC12V output, POE voltage test and Flashlight
Packaging included :
- 1 x HVT-E2611T
- Accessories
