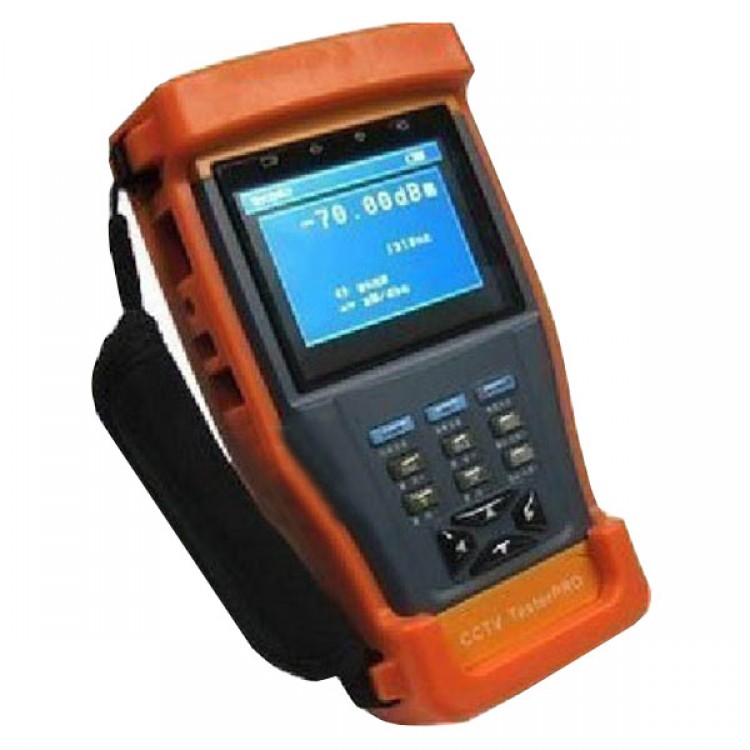

3.5" LCD CCTV PTZ Camera Optical Power Cable Tester ST896 12V Output
Description:
- The CCTV testerPro STest-896 is developed for the On-Site installation and maintenance of video monitoring system. It can be used for displaying video, testing video level, controlling PTZ, scanning PTZ address, generating images, capturing data of RS485 and testing LAN cable etc. Its functions, easy operation, and portability makes it simple for the CCTV technician to install and maintain CCTV system, improving work efficiency and get the labor cost down.
- STest-896 equipped with the Optical Power Meter. Use in testing the laser power of Video Fiber Optic Transmission equipment, and testing the Fiber Optic Patch Cord , etc.
FEATURES
3.5"TFT-LCD , 960（H）×240（V）resolution
Optical power meter, testing the laser power of Video Fiber Optic Transmission equipment, and testing the Fiber Optic Patch Cord , etc.
DC12V power output
Audio input
Adjustable brightness, contrast, color of LCD
Video Level testing, video signals measured in IRE or mV
Automatically identify and adapt the video mode of NTSC and PAL
Colorbar Video signal generator, transmit/receive colorful images
Support more than twenty kinds of PTZ controller protocols. For example, PELCO-P, PELCO-D, SAMSUNG etc.
PPTZ address scanning, search up the ID of PTZ camera.
Collect the PTZ protocol to assist the setting personnel to find out the control protocol and therefore easily target the problematic equipment.
Support RS232 and RS485 interface, the rate 150-19200bps
Powerful in testing LAN cable, measuring the connecting status and displaying the sequence of connection
PTZ(P/L & Zoom) Control: Control the status of P/L, zoom in/out the camera, adjust the aperture, foci and setting parameters, run and call the preset.
Lithium Ion Polymer Batteries(3.7V DC3000mAh), more reliable, and work 15 hours
Easy for use that the train is almost unnecessary
|
MODEL |
STest-896 CCTV Security Tester |
|
Video Test |
|
|
Signal mode |
NTSC/PAL (Auto Adjust) |
|
Display |
3.5 inch TFT-LCD ,960 x 240 resolution |
|
LCD adjust |
Adjustable brightness, contrast, color of LCD |
|
Video IN/OUT |
1 channel BNC Input & 1 channel Output |
|
Video Output Mode |
1.0 Vp-p |
|
Video Level test |
|
|
Level test |
Video signals measured in IRE or mV |
|
Power Output |
|
|
Power output |
DC12V, 1A |
|
Audio Test |
|
|
Audio input |
1 channel Audio input |
|
PTZ controller |
|
|
Communication |
RS232, RS422 simplex and RS485 |
|
PTZ Protocol |
Compatible with more than 20 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc.customized |
|
Baud Rate |
150,300,600,1200,2400,4800,9600,19200bps |
|
Video Signal Generation |
|
|
Color bar generation |
Output 1 channel color bar video signal for testing monitor |
|
UTP CABLE TEST |
|
|
UTP cable test |
Test UTP cable connection state and display in the screen. Read the number of the test box. |
|
PTZ data acquisition and display |
|
|
PTZ Data Test |
Collection and Analyze the PTZ data sent from controlling device |
|
PTZ address scanning |
|
|
PTZ address scan |
Search up the ID of PTZ camera |
|
Optical Power Meter |
|
|
Wavelength |
850, 1300, 1310, 1490, 1550, 1625nm |
|
Detector |
InGaAs |
|
Linker |
FC/PC(SC, ST) |
|
Measurement Range |
-70~+10dBm |
|
Display Resolution |
0.01dB |
|
POWER |
|
|
Power Adapter |
DC5V, 2A |
|
Battery |
1 pcs Lithium Ion Polymer Batteries, 3.7V DC3000mAh |
|
Rechargeable |
4.5 hours recharging time, work for 12 hours |
|
Low Consumption |
Sleeping mode, display battery power state |
|
Other Parameters |
|
|
Work Temperature |
-10℃---+50℃ |
|
Work Humidity |
30%-90% |
|
Dimension/Weight |
112mmx189mmx47mm / 500g |
