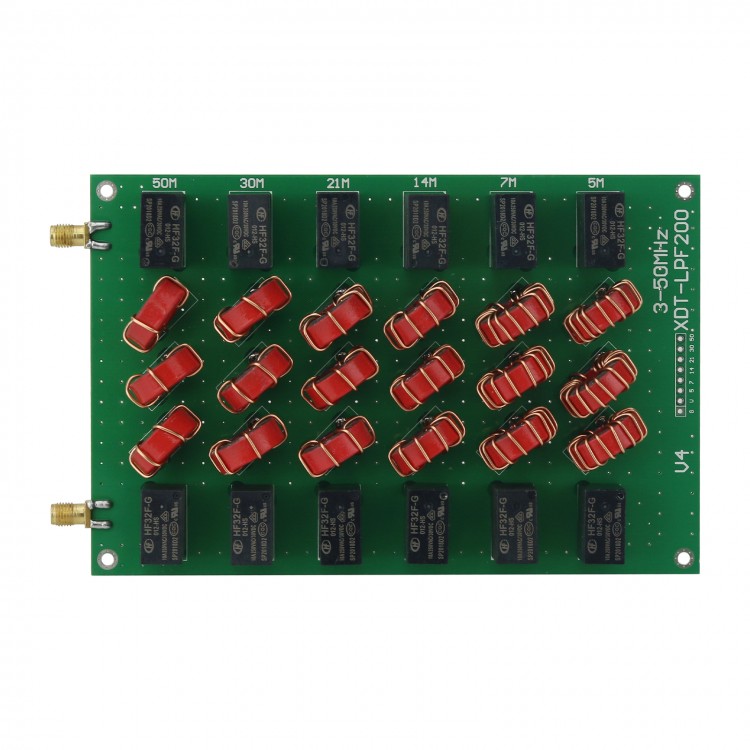

3-50MHz XDT-LPF200V4 Low Pass Filter Supports 6m 10m 15m 20m 40m & 80m Bands for Shortwave Radios

3-50MHz XDT-LPF200V4 Low Pass Filter Supports 6m 10m 15m 20m 40m & 80m Bands for Shortwave Radios

Description:
The needed signal can pass through, and the unwanted signal is filtered out. The low pass filter works for transmitting and receiving. It is suitable for shortwave radio, which is used to improve the signal-to-noise ratio of the signal and reduce the interference caused by harmonics.

Features:
- Portable design
- Beautifully designed
- Excellent performance
- Reliable and efficient
- Low-carbon and environmentally friendly

Specifications:
- Frequency range (6 bands): 6 meter, 10 meter, 15 meter, 20 meter, 40 meter and 80 meter bands
- Input power: 200W CW; 300W SSB
- Filter structure: Elliptical filter
- Filter order: 7
- Harmonic suppression: >40dB
- Input and output connectors: SMA-K
- Power supply voltage: 12V-16V
- Operating current: 500mA
- Control voltage: +5 to 12V
- Control current: 1mA
- Size: 150mm x 100mm x 30mm/5.9" x 3.9" x 1.2" (LxWxH)
- Weight: 260g/0.6lb
- Operating temperature: -15°C to 55°C
- Storage temperature: -30°C to 75°C

Precautions:
- Do not turn on the filters of two bands at the same time.
- Be sure to wire it properly and use it in a safe condition.

Package Included:
- 1 x Low Pass Filter

Packaging Details:
- G.W.: 0.3kg
