3.5inch HDMI LCD Display Screen Resistive Touch Screen 480x320 IPS Audio Output For 3.5mm Headphone

3.5inch HDMI LCD Display Screen Resistive Touch Screen 480x320 IPS Audio Output For 3.5mm Headphone

Features:
- 3.5" LCD display
- Resolution 480x320
- HDMI display interface
- IPS display panel
- 170° visual angle
- Resistive touch control
- SPI touching interface
- OSD Menu: Adjustable brightness and contrast ratio
- Audio Output: 3.5mm headphone port
- Compatible Game Consoles: For Xbox360, Sony PS4, Nintendo Switch, etc.

Supported Devices & Systems:
For Raspberry Pi:
- Support for Raspbian/Ubuntu/Kali/Retropie: Driver is provided.
- Support for Raspberry Pi 4, Raspberry Pi 3B+, Raspberry Pi Zero W (HDMI cable needed) and various mini PC.

For PC:
- Support connection to your computer's monitor, featuring no touching function. HDMI cable is needed.

For Game Consoles:
- For Xbox360, Sony PS4, Nintendo Switch and the like (Display and outputs sound)

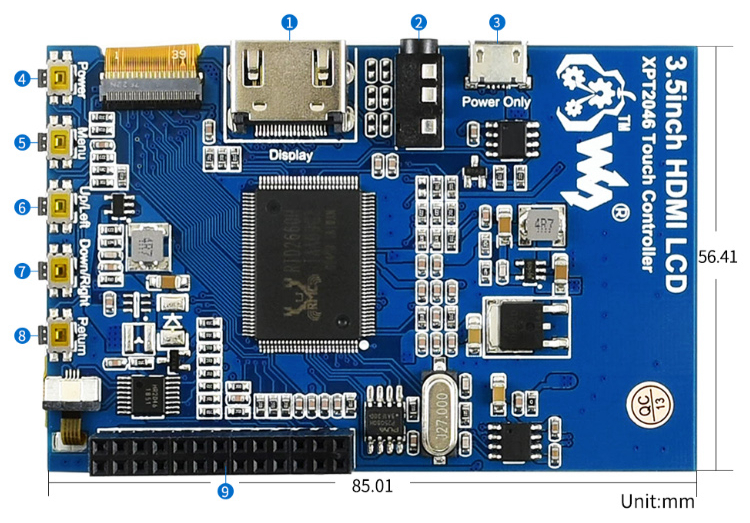

①HDMI Display Port
②Headphone Port
③Power Supply Port
④Power Supply Button
⑤Menu Button
⑥Up/Left Button
⑦Down/Right Button
⑧Return Button
⑨I/O Interface

Development Resources:
- Wiki : www.waveshare.com/wiki/3.5inch_HDMI_LCD

FAQ:
Why the LCD doesn't support for my Raspbian?
To use the LCD with the Raspberry Pi official image, driver should be installed first. Please refer to the user manual.

However, for the first testing, you may want to use our provided image directly.

Why the LCD still doesn't work with the Waveshare provided image?
Make sure the hardware connection is correct and connects fine.

Make sure the image in TF card is burnt correctly.

The PWR will keep on and the ACT will keep blinking when the Raspberry Pi starts up successfully, in case both of the two LEDs keep on, it is possible that the image was burnt incorrectly OR the TF card was in bad contact.

Which power supply should I use?
It is recommended to use a 5V/3A power adapter for the Raspberry Pi other than USB connection, otherwise the Pi may failed to start up because the PC's USB port might have not enough power.

For large size LCDs, say, 10inch diagonal or more, another stand-alone power adapter is also required to provide power to the LCD.

For more info, please check the wiki page.

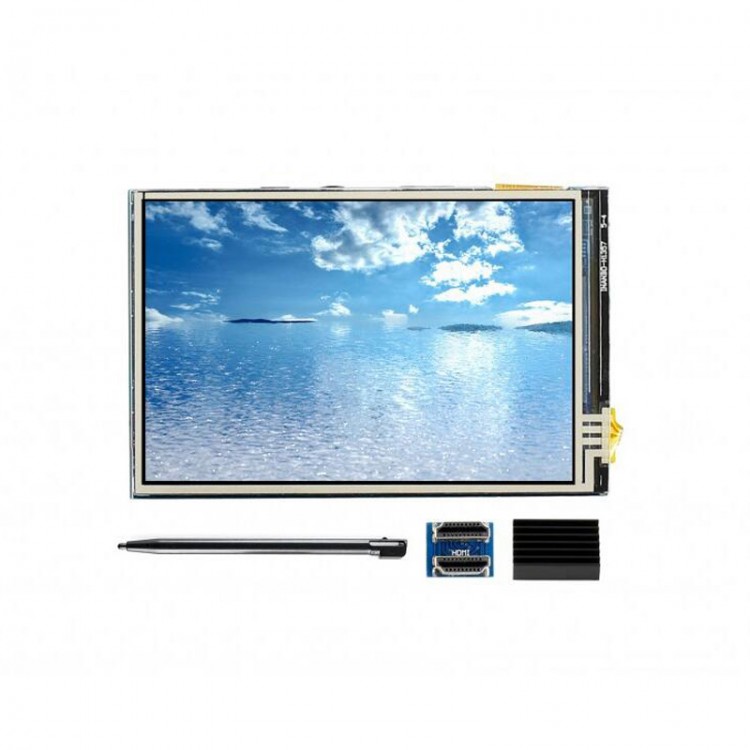

Package Included:
- 1 x 3.5inch HDMI LCD
- 1 x HDMI Connector Type A
- 1 x HDMI Connector Type B
- 1 x Touch Pen
- 1 x Aluminium Heat Sink
- 1 x Quick Start Guide
