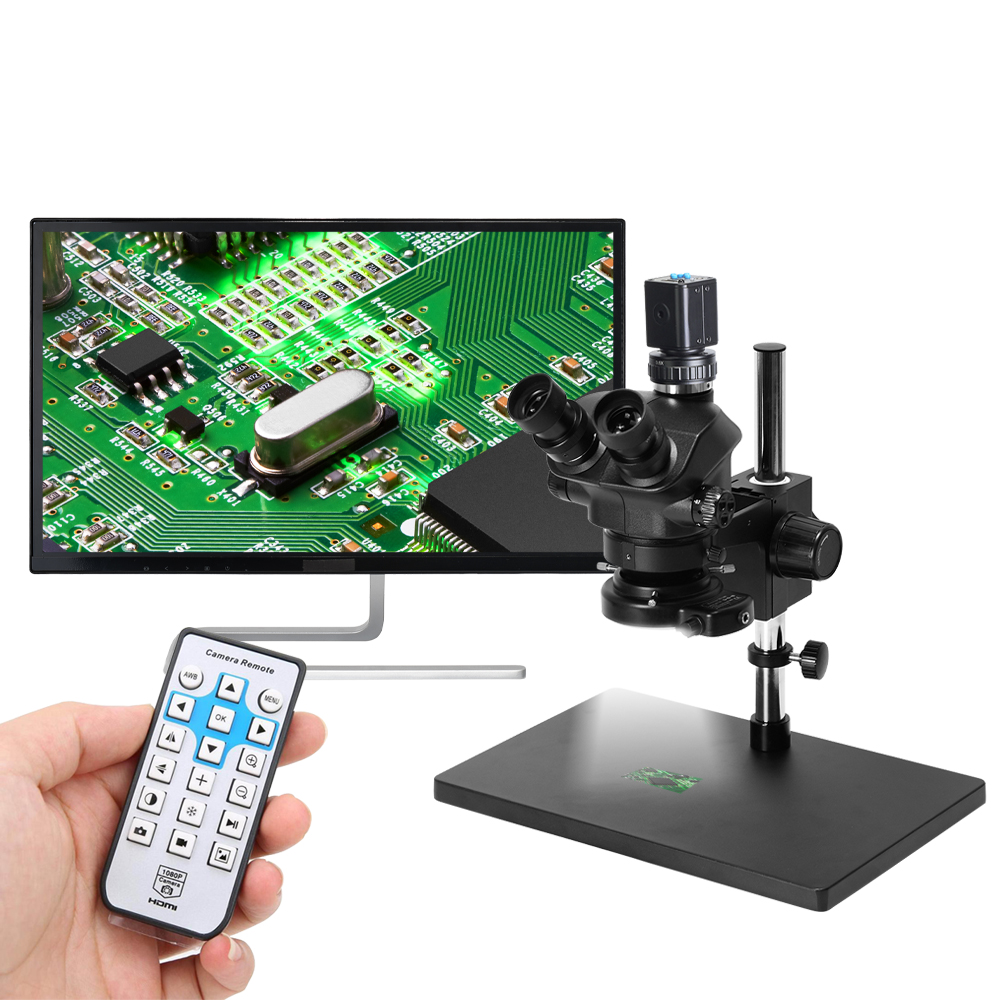

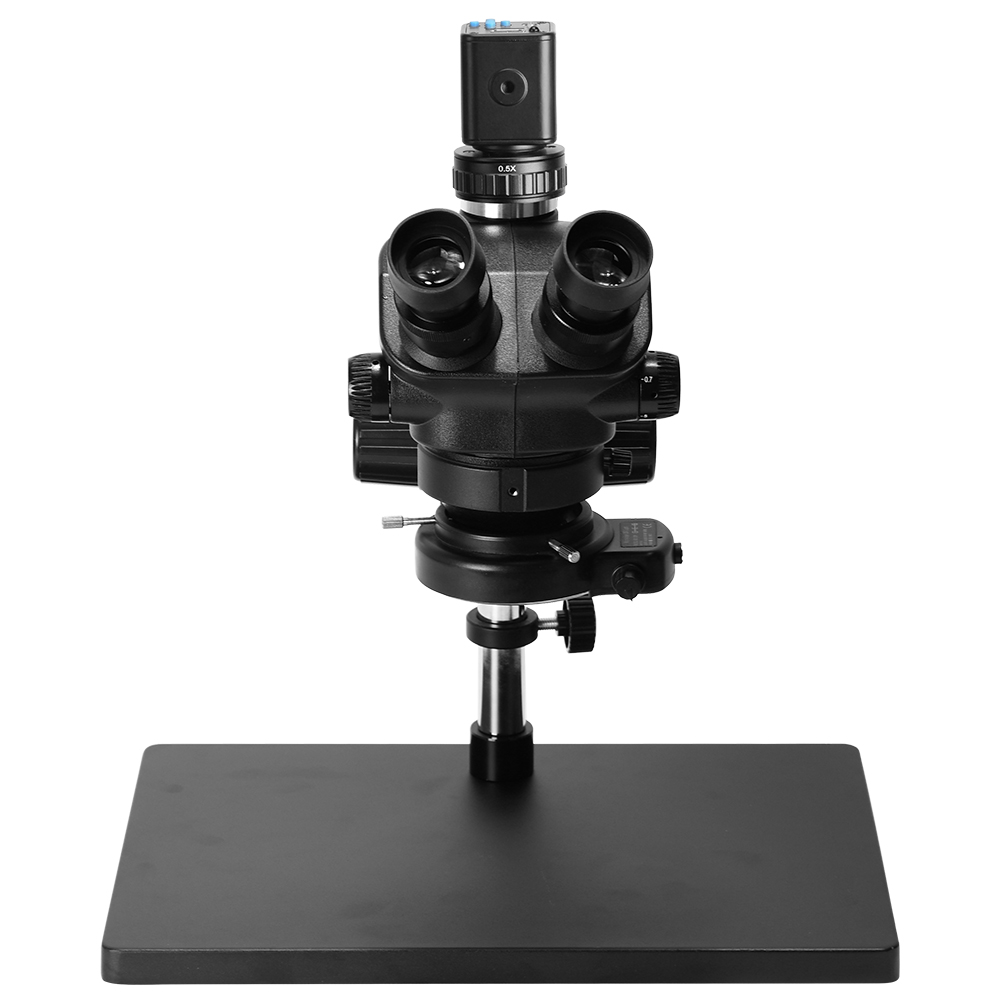

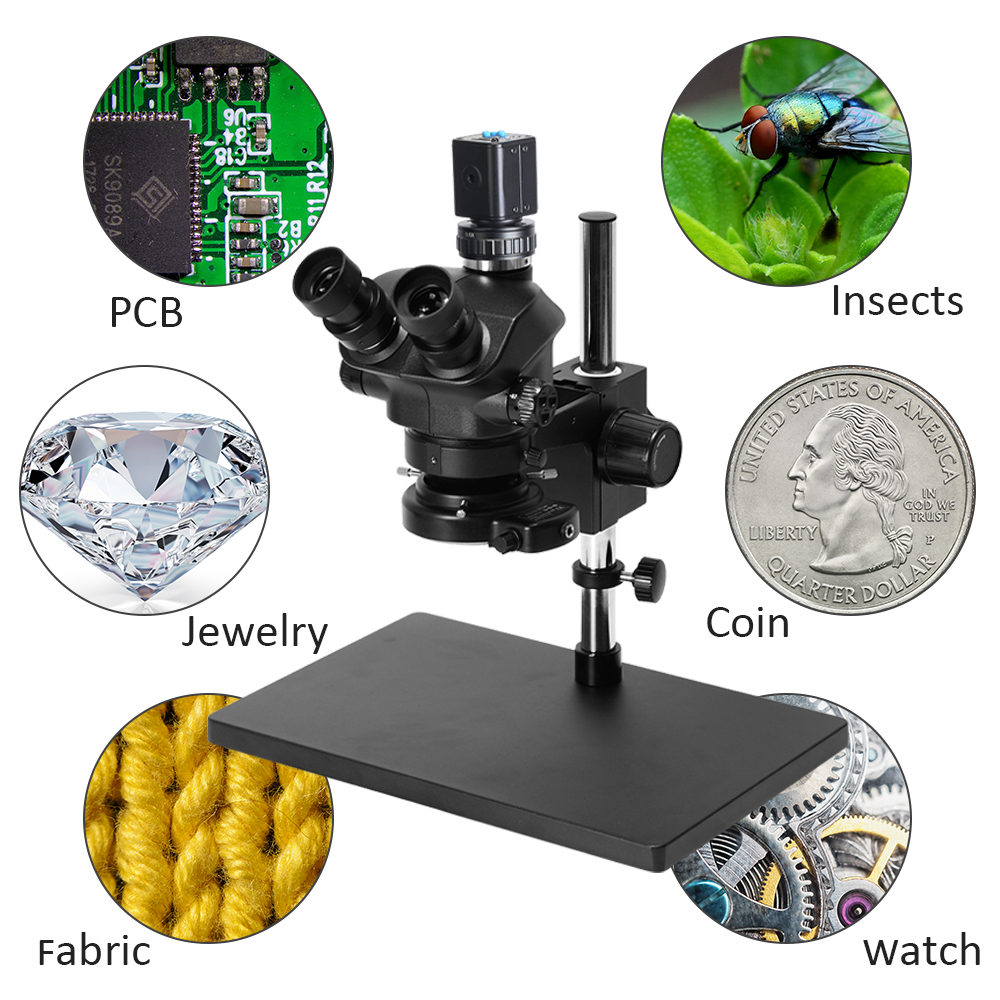

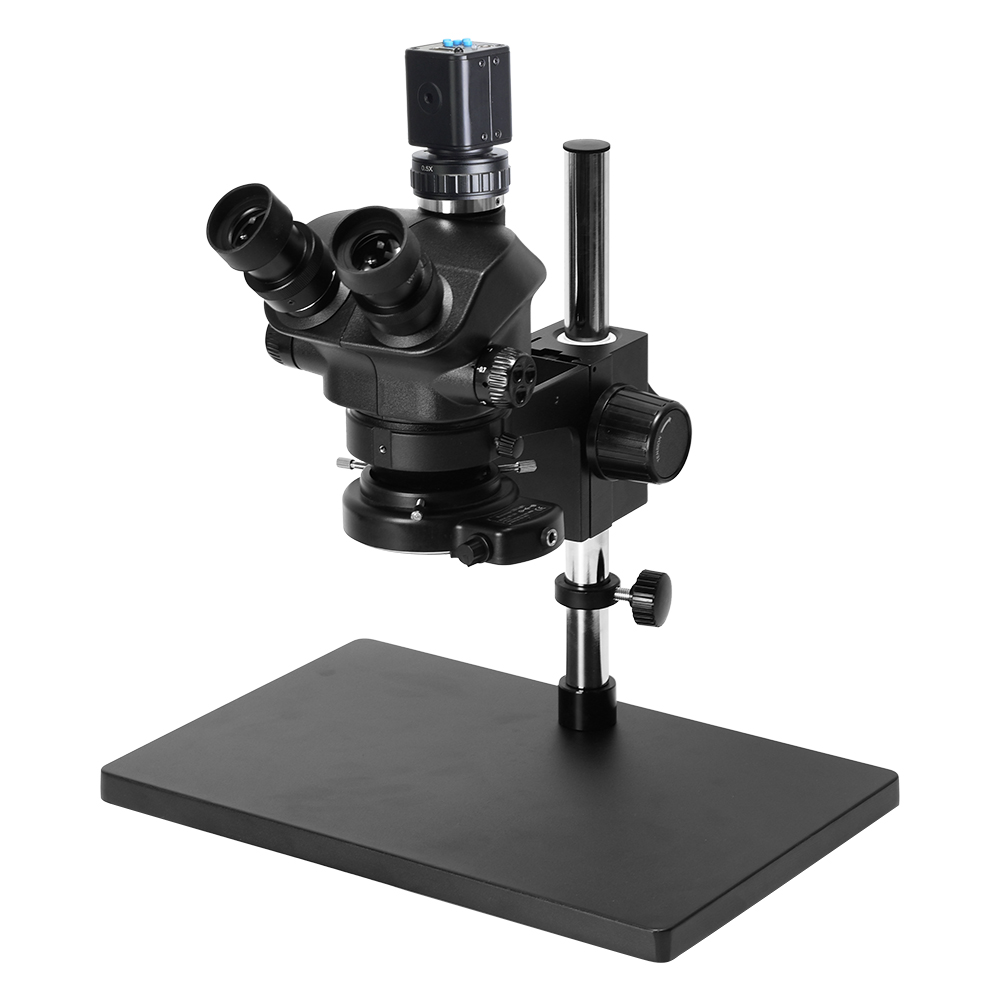

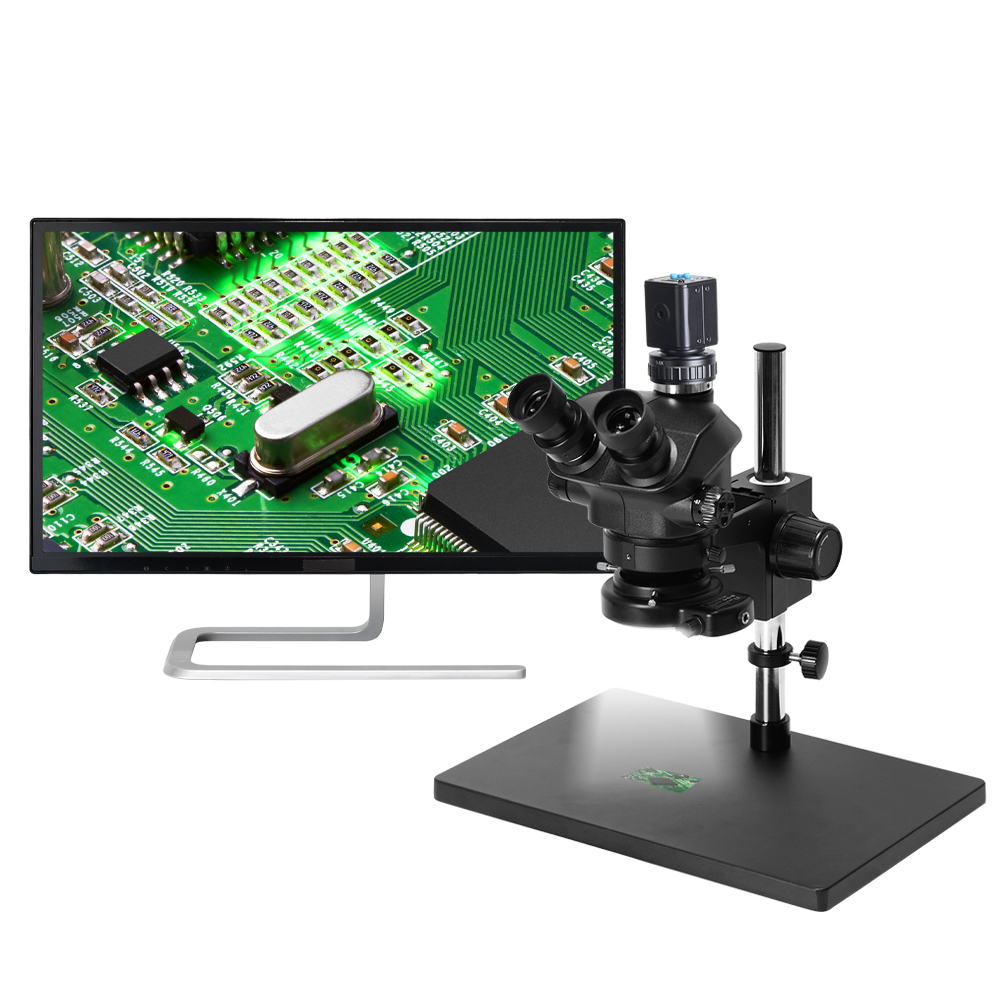

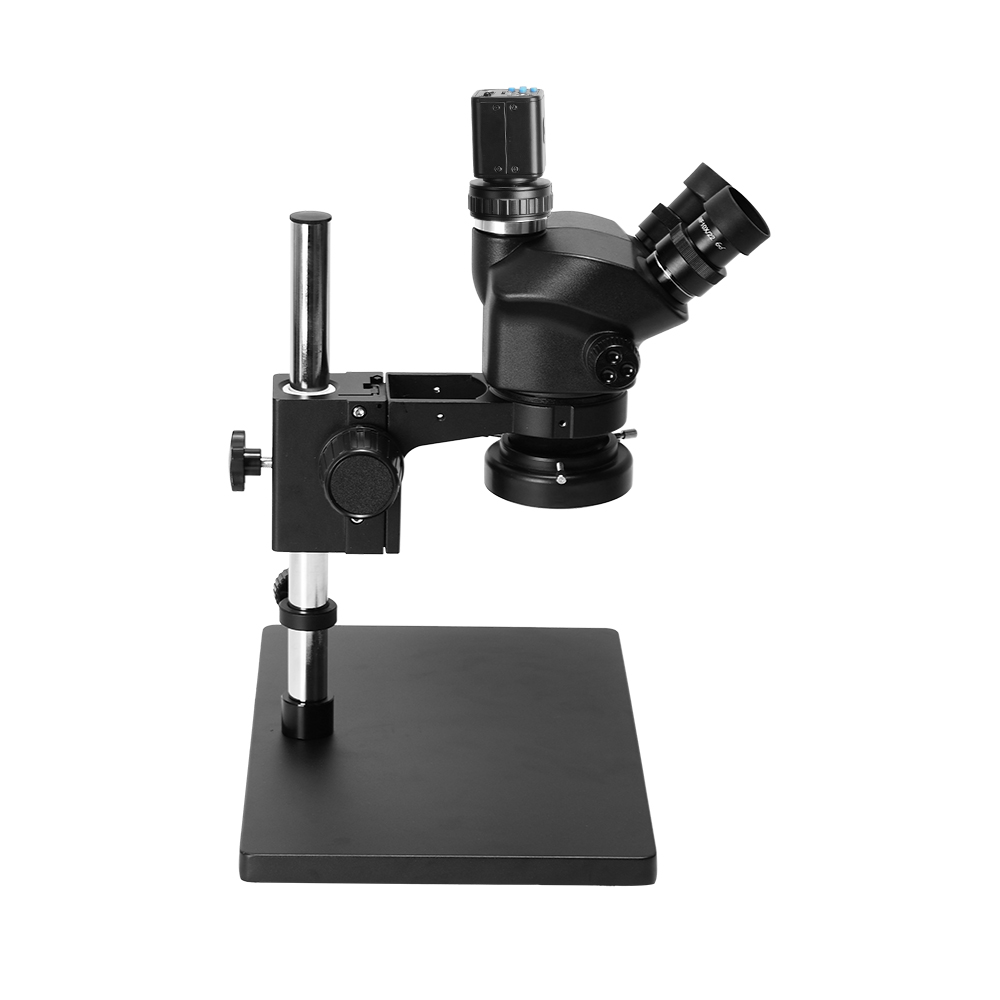

3.5X-100X Trinocular Stereo Microscope Magnifier Stand 2K Microscope Camera for Phone Repair Soldering

Availability: In stock, usually dispatched in 1 business day

  • Price:$388.99
  • Price in reward points: 3890 Reward Points: 39
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $381.21 $373.43 $361.76 $346.20 Contact US
Quantity:


3.5X-100X Trinocular Stereo Microscope Magnifier Stand 2K Microscope Camera for Phone Repair Soldering

Features:

- Trinocular port for adding photo or video capability
- High Resolution with Great Flatness and Contrast
- Sharp Stereo Erect Images over a Wide Field View
- Crystal Clear Original True Color Images
- Large Working Distance
- Accurate Alignment Ensuring a Fatigue-Free Viewing
- Full Optical Glass Elements
- Precise Ground Glass Lens
- Adjustable Interpupillary Distance
- Bracket Hole: 76mm
- Spin Angle:Horizontal±15°

Trinocular Stereo Specification:
- 7X to 50X Continuous Zoom Magnification Power Use 2x objective lens 14-100x  Use 0.5x objective lens 3.5-22.5x
- 45-degree Inclined Trinocular Simul-focal Head with SUPER WIDEFIELD High-eyepoint Eyepieces 30mm Super Wide-field WF10X Eyepieces with 22mm Field of View
- Objective: 0.7 - 5X
- Zoom Range: 6.5:1
- Trinocular Port: 25mm photo port
- Interpupillary Distance: 2-1/8" to 3" (54-76mm)
- Field of View: 1-1/4" (33mm)
- Working Distance: 7X-45X (100mm); Use 0.5x objective lens 3.5X-22.5X(165mm)
- Use 2x objective lens 14X-90X (50mm)
- Head Mounting Size: 3" (76mm) diameter
- Accessory Mounting Size: 1-7/8" (48mm female thread) diameter

2K Camera Specification:
- Module: HY-5199
- Sensor: 24MP CMOS
- Optical Format: 1/2.9inch
- Pixel Size: 2.85μmx2.85μm
- Interface: HDMI (Type A). Small memory card
- HDMI Image Resolution: 24MP
- Video Resolution: 2K
- HDMI Resolution: 1920 x 1080P
- HDMI Scale: Support 4: 3,16: 9 screen
- Small Memory Card: Up to 64GB (not included)
- AWB:AWB color correction/automatic/manual
- R.G.B value setting independent
- Exposure: Automatic/manual.  AE value can be set
- Cross Line: 8 lines, color, width, position can be set
- Scale Line: 2 lines.
- Dotted Line: 2 lines, color, width, position can be set
- Sharpness Contrast Color Gain: Support
- Mono Negative Film: Support
- Mirror: Horizontal and vertical mirror
- Language: English/Simplified Chinese/French/Spanish/Japanese/German  And other languages.
- Digital Zoom: Support
- Infrared Remote Control: Support
- Voltage Input: DC 12V
- Power Supply Voltage: Input: AC100-240V
- Output: DC12V
- Power Consumption: Maximum 0.15W 12V, 0.12A
- Lens Interface: C/CS port
- Remote Control Battery: 1 x 2302 button battery (delivered without battery)

144 Bright LED:
- Variable lighting direction
- Variable power control
- Strong and concentrated shadowless lighting
- 100,000 hours of life
- Power Input: 100-240V, 50-60HZ, automatic switching
- The Inner Diameter of The ring Light: Approx. 27mm / 1.1in
- Overall Outer Diameter: Approx. 45mm / 1.8in
- Working Distance: Approx. 27 ~ 120mm / 1.1 ~ 4.7in

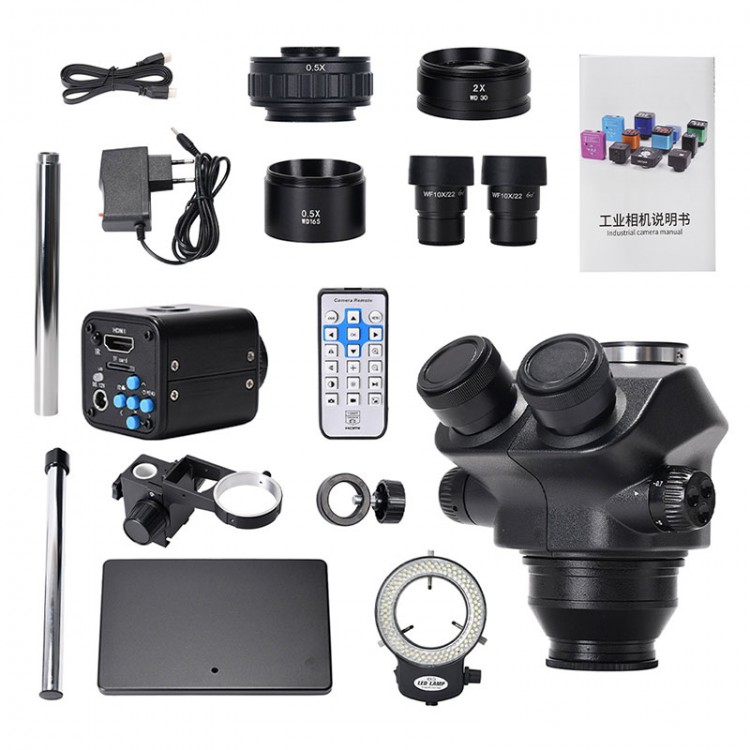

Package included:
- 1 x Microscope Camera
- 1 x IR Remote control
- 2 x Power Adapter
- 1 x Trinocular Stereo Zoom Head
- 1 x Pair of Super Widefield 10X22MM Eyepieces
- 1 x 144-LED Ring Light
- 1 x Microscope Bracket
- 1 x 0.5x Simul-Focal Adapter
- 1 x Pair of Eye-Guards
- 1 x Dust Cover
- 1 x Paper Manual
- 1 x 0.5X Microscope Auxiliary Objective Lens (Working Distance 180mm)
- 1 x 2X Microscope Auxiliary Objective Lens (Working Distance 50 mm)
- 1 x Extension Tube
