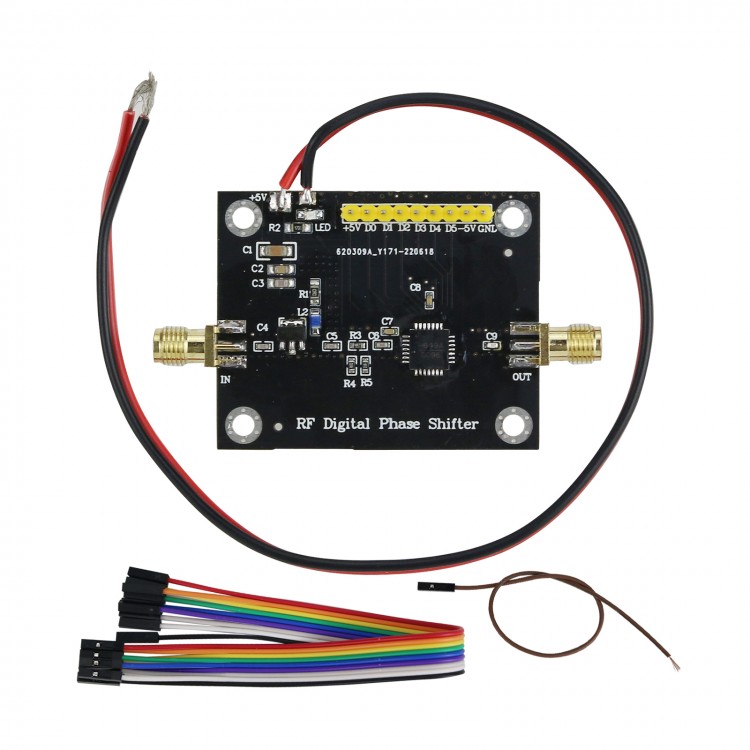

3-6GHz RF Digital Phase Shifter 6Bit Microwave Phase Shift Module SMA Connector Without Shell

Availability: In stock, usually dispatched in 1 business day

  • Price:$100.08
  • Price in reward points: 1001 Reward Points: 10
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $98.08 $96.08 $93.07 $89.07 Contact US
Quantity:
Buy it now Add cart

You might like

3-6GHz RF Phase Shifter 5.8G Digital Phase Shifter C-Band Microwave Phase Shift Module With Shell

3-6GHz RF Phase Shifter 5.8G Digital Phase Shifter C-Band Microwave Phase Shift Module With Shell

$125.58

(0)
8-12GHz Digital Phase Shifter X-Band RF Phase Shifter 6-Bit Programmable Phase Shifter Phased Array

8-12GHz Digital Phase Shifter X-Band RF Phase Shifter 6-Bit Programmable Phase Shifter Phased Array

$235.95

(0)
1-2.2GHz RF Digital Phase Shifter 8Bit Microwave Phase Shift Module SMA Connector w/ CNC Shell

1-2.2GHz RF Digital Phase Shifter 8Bit Microwave Phase Shift Module SMA Connector w/ CNC Shell

$56.50

(0)
QM-PHA0710B 700-1000MHz RF Phase Shifter Analog Phase Shifter 180° 915M Phase Shift Phased Array

QM-PHA0710B 700-1000MHz RF Phase Shifter Analog Phase Shifter 180° 915M Phase Shift Phased Array

$132.86

(0)
1-2.2GHz RF Digital Phase Shifter Without Shell Microwave Broadband Phase Shift Module 8Bit

1-2.2GHz RF Digital Phase Shifter Without Shell Microwave Broadband Phase Shift Module 8Bit

$34.95

(0)
QM-PHA0710A 700-1000MHz Phase Shifter Analog Phase Shifter Module 915M Phase Shift Phased Array

QM-PHA0710A 700-1000MHz Phase Shifter Analog Phase Shifter Module 915M Phase Shift Phased Array

$123.17

(0)
6-15GHz RF Analog Phase Shifter X-Band Phase Shift Module Adjustable Phase Shifter Without Shell

6-15GHz RF Analog Phase Shifter X-Band Phase Shift Module Adjustable Phase Shifter Without Shell

$113.90

(0)
QM-PHA2550A 25-50MHz Low-Frequency Phase Shifter 360-Degree MF Sine-Wave RF Phase Shifter Module

QM-PHA2550A 25-50MHz Low-Frequency Phase Shifter 360-Degree MF Sine-Wave RF Phase Shifter Module

$116.76

(0)

3-6GHz RF Digital Phase Shifter 6Bit Microwave Phase Shift Module SMA Connector Without Shell

Description:
The phase shifter is a device that controls the phase change of the signal, and is widely used in radar systems, microwave communication systems, and measurement systems. This module adopts digital program control technology to realize the phase change of input signal, and adopts 6bit parallel control mode to meet high precision requirements. At the same time, the built-in adjustable gain module can make up for the signal attenuation caused by the insertion loss of the module. The board is equipped with fixing holes.

Module Parameters:
1. Working frequency: 3-6GHz (built-in preamplifier)
2: Power supply: ±5V power supply
3: Phase control: 5.625°-354.375°
4. Phase accuracy: 5.625° high precision
5. Control mode: parallel control
6. Control interface: 2.54 pitch connector
7. Control bits: 6bit
8. Transmission gain: 0 to +5dB (settable)
9. Interface: SMA-K (customizable)
10. Module size: 50 x 40mm/2 x 1.6" (excluding the size of connectors)

Package Included:
- 1 x RF Phase Shifter
