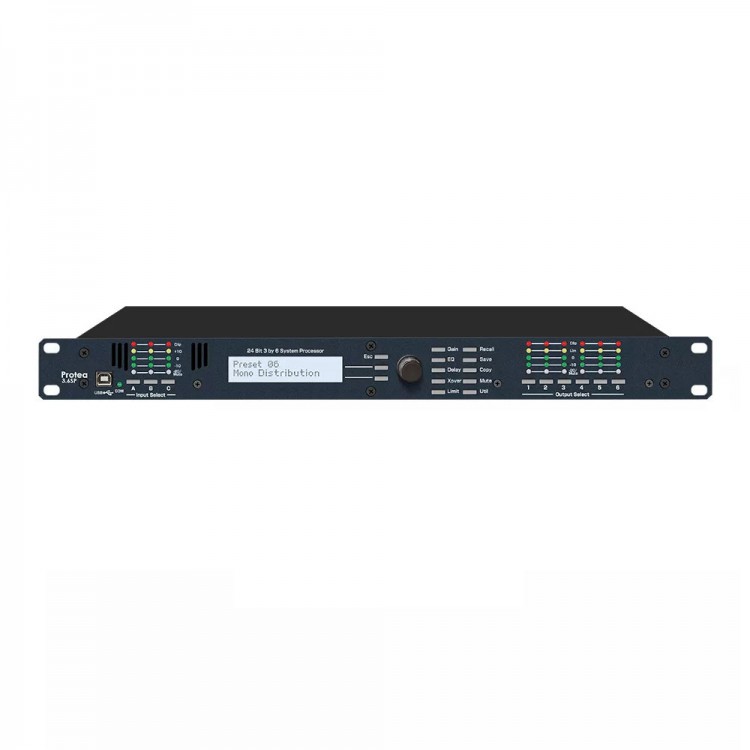

3.6SP 220V Digital DSP Audio Processor Original Software 3 Input 6 Output Professional Sound System

3.6SP 220V Digital DSP Audio Processor Original Software 3 Input 6 Output Professional Sound System

Description:
3.6SP uses advanced DSP technology, from 24 bit, 48kHz delta-sigma A/D converter and 128 times oversampling. Digital processing includes: gain, polarity switching, parametric EQ shelf filter, time delay, crossover function, compression, limiting and signal routing, all processed by a pair of 120MHz high performance DSP processors. The D/A converter uses a 24-bit delta-sigma converter with 128 times oversampling. All inputs and outputs use balanced XLR connectors to prevent RF interference. You can adjust gain, delay or 6-band EQ for each input channel (each section can be selected as parametric or Hi/Lo Shelf). Signals can be routed within the DSP prior to the crossover point, allowing signals from two or more input channels to be routed.

After mixing, it is routed to the output channel. On the output channel, you can use 4-band EQ (each section can be selected as parametric or high/low shelf), delay, gain, invert or compressor and other modules, with such powerful DSP processing function, but only 1U height, and all audio interfaces use standard XLR interfaces.

The 3.6SP can store up to 30 presets. The preset file adopts the "snapshot" method to completely store all the control data of all the current channels.

3.6SP is a powerful and easy-to-operate processor. Whether for live performances or for fixed installations, it provides precise audio processing and superior sound.

Specifications:
* Model Number: 3.6SP
* Product Name: Audio processor
* Power: 30W
* Frequency Range: 20Hz-20KHz, ±3dB
* Application: Disco, Bar, Club and Home
* Occupies one rack space
* Three input interfaces-Six output jack inputs can be assigned to any one output
* Slope is 12 dB/Oct, 18 dB/Oct, 24 dB
* Oct and 48dB/Oct / 682ms input delay, 21ms output delay
* Using Linkwits-Riley, Bessel and Butterworth filters
* Parametric EQ: full bandwidth, 1/64th to 4th octave range
* Each output is equipped with a limiter Intuitive user interface
* Through the front panel, RS232 can be programmed
* 48KHz sampling frequency
* Independent input and output instructions
* Balanced input and output XLR speaker connectors
* Equipped with special PC control software
* Frequency Response: 20Hz-20kHz, ±0.25dB
* Distortion (THD + N): <0.01%
* Dynamic range: >110
* Maximum delay: 682ms on inputs, 682ms on outputs
* Output gain adjustment: -40dB to +12dB
* Parametric equalizer: 6 segments for each input, 4 segments for each output
* Input Graphic Equalization Input GEQ: No
* Crossover filters: 12, 18, 24, or 48dB per octave
* Limiter threshold: -20 to +20dBu
* Maximum output Level: +20dBu
* Input impedance: 18kΩ
* Output impedance: 100Ω
* Material: Metal
* Dimension (LxWxH): 483 x 44.4 x 203mm/19 x 1.7 x 8"
* Net Weight: 4.05kg/8.9lb

Package Included:
* 1 x Audio Processor
