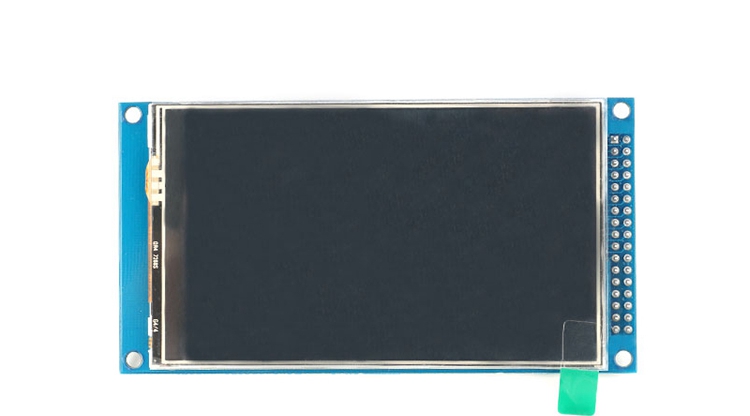

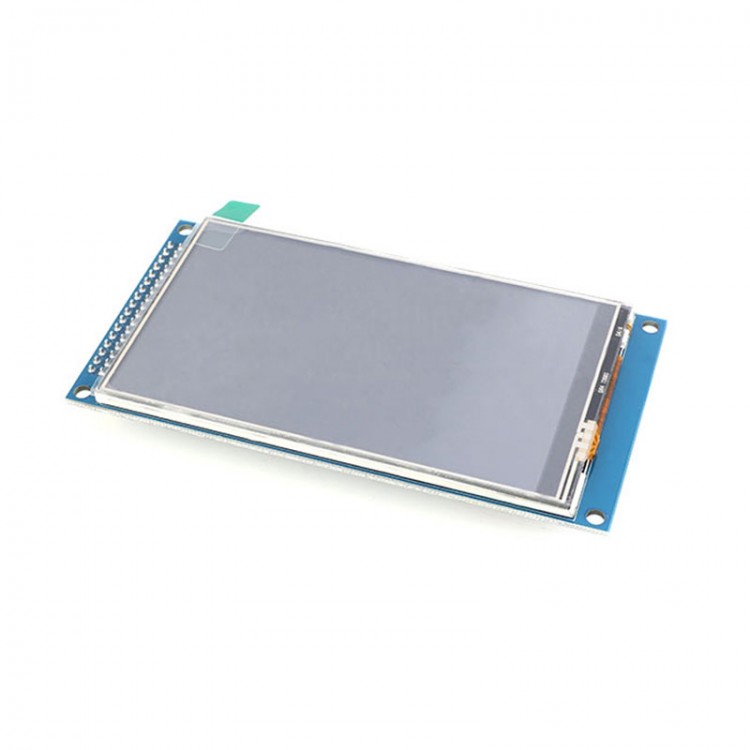

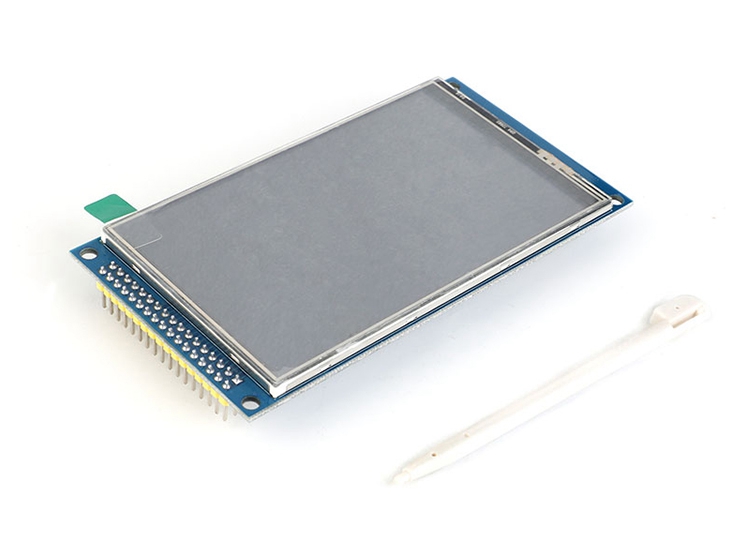

3.97-Inch LCD Module 800X480 IPS Display Touch Display NT35510 Supports 16BIT RGB 65K Color Display
Product Introduction:
- Color screen 3.97-inch, support 16BIT RGB 65K color display, display rich colors
- 800x480 resolution for clear display
- 16-bit parallel bus transmission for fast transfer speed
- Supports for ALIENTEK STM32 Mini, Elite, WarShip, Explorer, and Apollo development boards for direct plug-in use
- Support for touch function
- Support SD card function expansion
- Provides a rich sample program for STM32 and C51 platforms
Product Parameters:
- Display Color: 16BIT RGB 65K color
- SKU: MRB3973
- Screen Size: 3.97 (inch)
- Type: TFT
- Driver IC: NT35510
- Resolution: 800*480 (Pixel)
- Module Interface: 16Bit parallel interface
- Active Area: 51.84 x 86.40mm/2 x 3.4"
- Module PCB Size: 59.18 x 111.51mm/2.3 x 4.4"
- Operating Temperature: -10℃ to 60℃
- Storage Temperature: -20℃ to 70℃
- Operating Voltage: 3.3V/5V
Package Included:
- 1 x Set of LCD Module

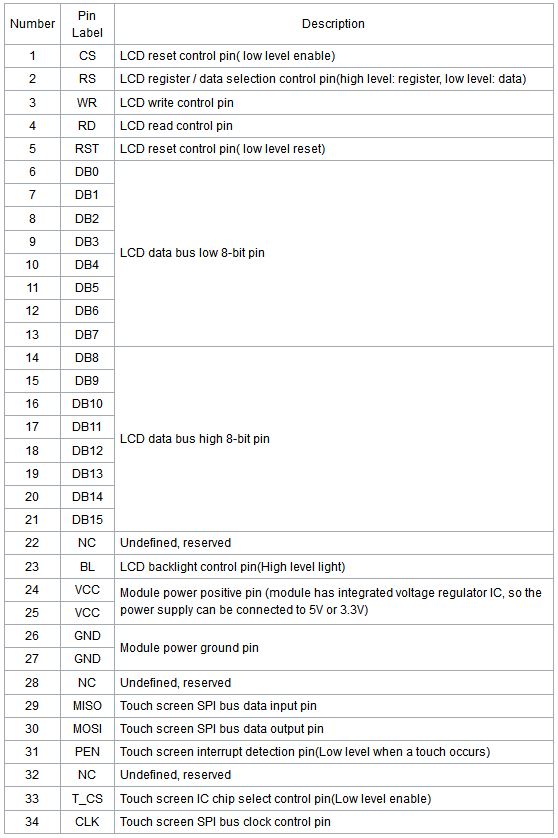

Interface Definition:
The module hardware supports 8-bit and 16-bit parallel port data bus mode switching (as shown by the red box in Picture 1 above), as follows:
Solder R3 and R4 with 0Ω resistor or short circuit directly, and disconnect R2 and R6: select 16-bit data bus mode (default), use DB0~DB15 data pin
Solder R2 and R4 with 0Ω resistor or short circuit directly, and disconnect R3 and R6: select 8-bit data bus mode, use DB0~D7 data pin
