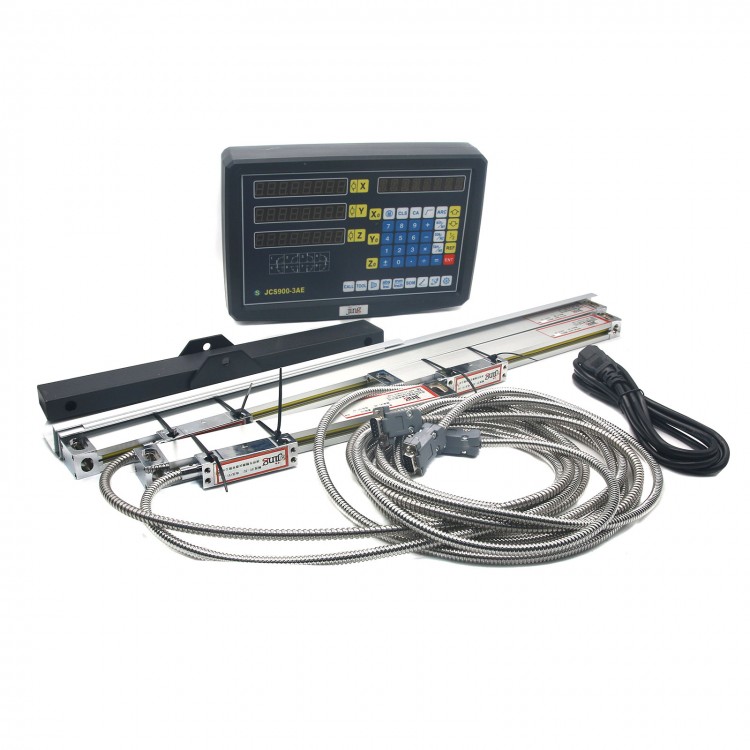

3 Axis Digital Readout Dro for Milling Lathe Machine with Procision Linear Scale

3 Axis Digital Readout Dro for Milling Lathe Machine with Procision Linear Scale





Tips:
This kit includes 3 pieces 5 micron linear scale and 1 pieces 3 axis DRO .It is compete dro kits with parts to fit mounting.The linear scale has to chosen from 50-1000mm travel length.  there are 50mm, 100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm, 650mm, 700mm, 750mm, 800mm, 850mm, 900mm, 950mm and 1000mm available for this order, you may choose any 3 pcs linear scales within these and let we know via ebay massage or ebay order notice.

Description:
- English version
- The digital readout which producted by our company is a high precise instrument which can be used on lathe,grinding machine,milling machine,boring machine and EMD TO make the position detection.

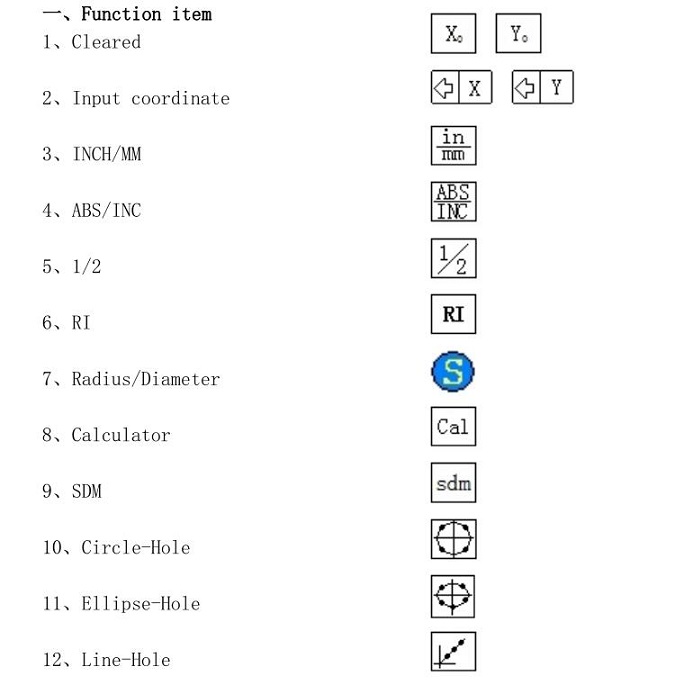

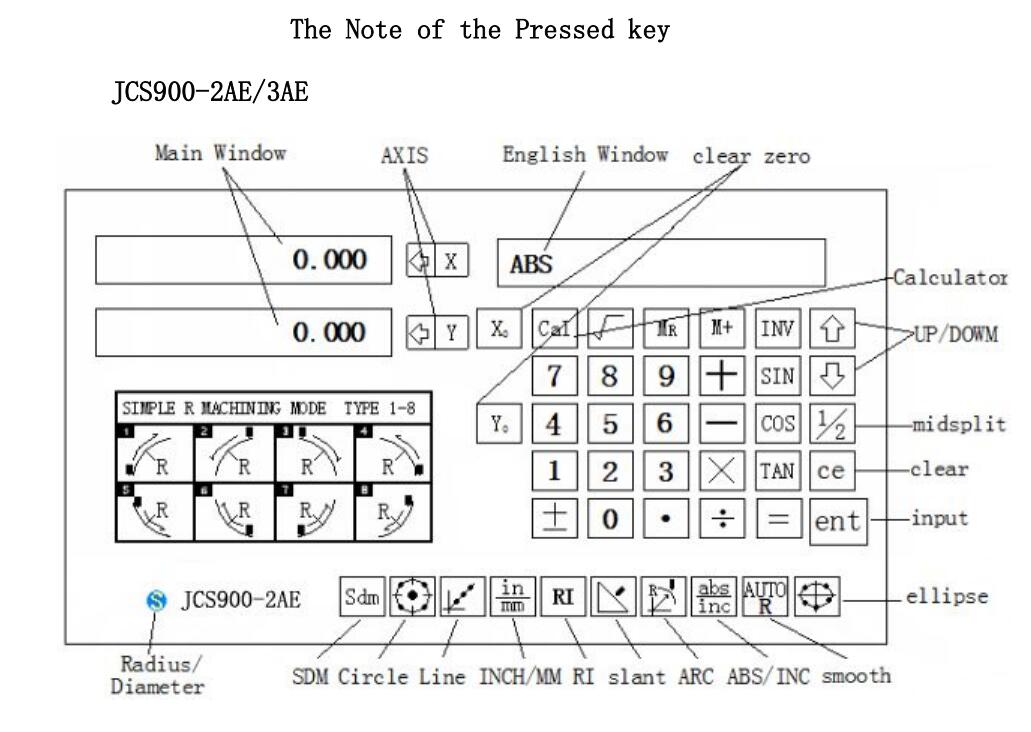

Functions:

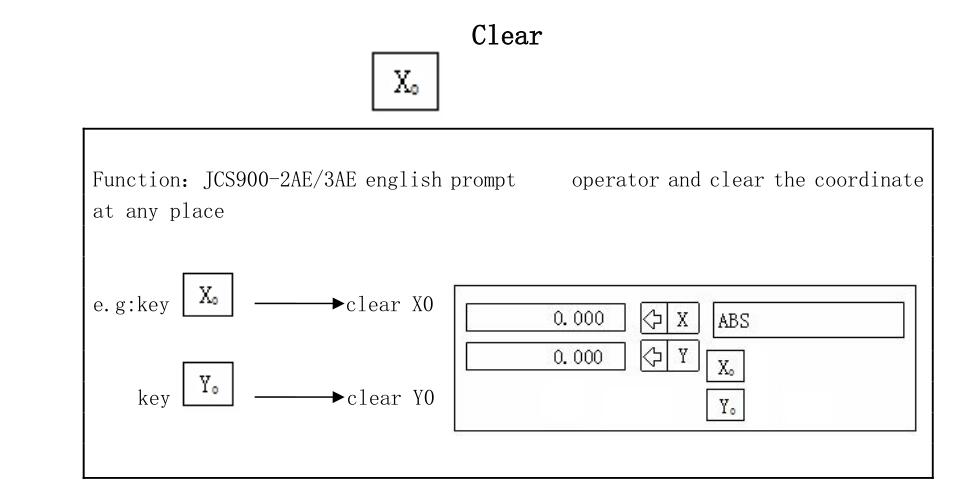

- Zero clearing
- Reset

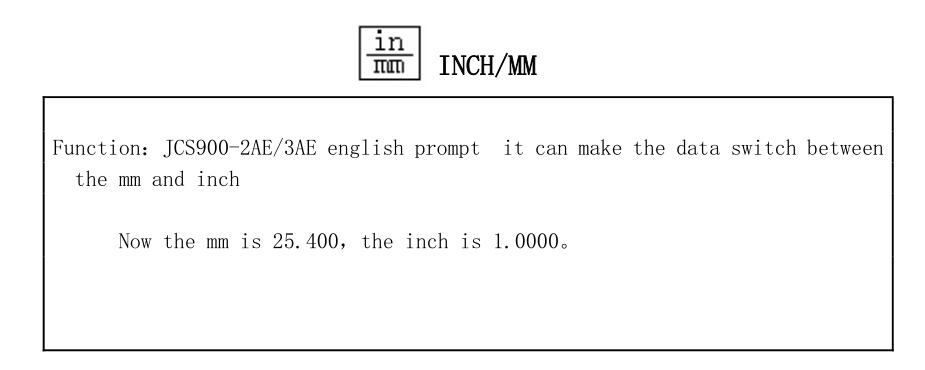

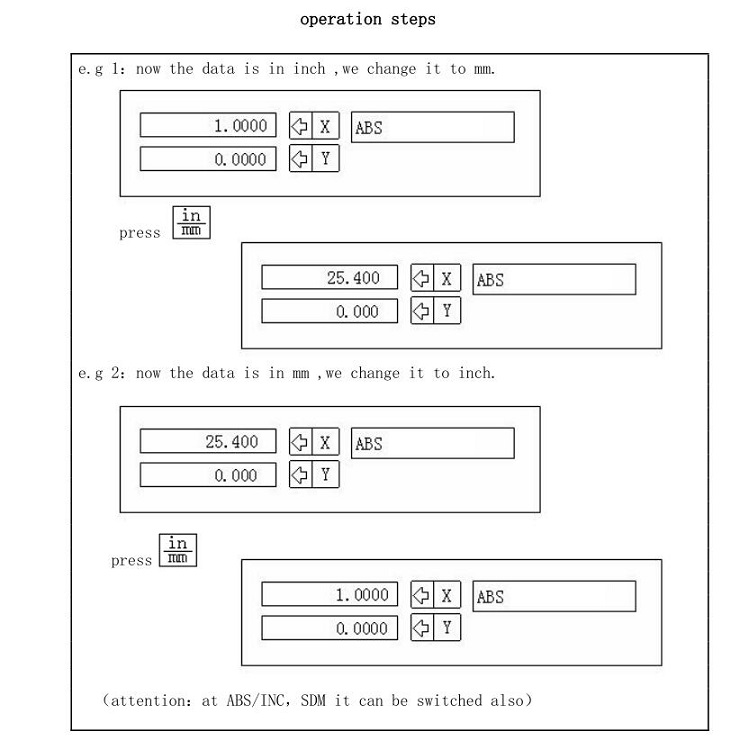

- mm/inch mode

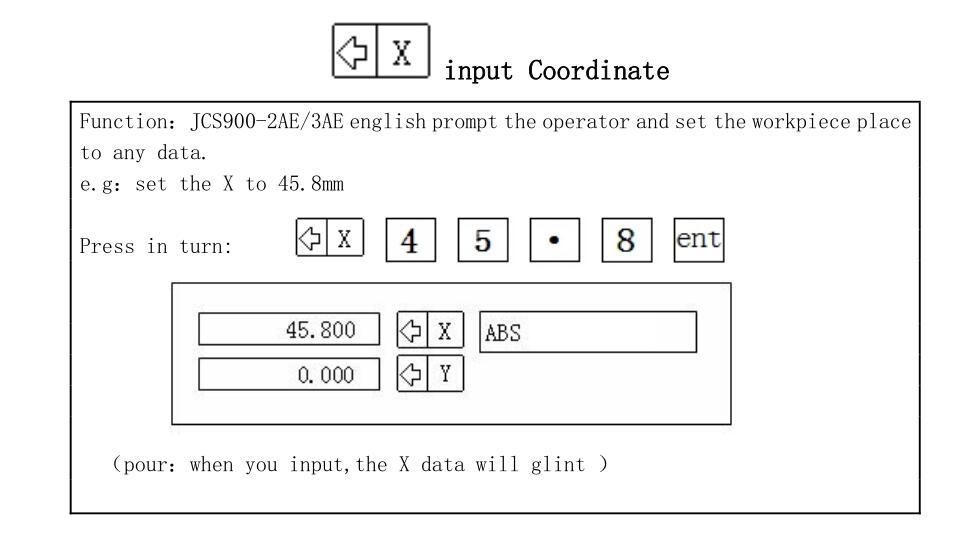

- ABS/INC coordinate conversion
- 200sets sub datum
- Power off Memory;
- Center of1/2
- Liner error compensation
- Sleepping mode
- Clear 200 sets Sdm datum;
- ABS/INC mode
- Calculator
- Drilling of circumference
- Drilling of oblique line
- Machining of inclined plane
- Machining of circular arc
- Lathe function(match)
- Rectangular lumen gradual processing
- Digital filtering
- R function 21 R/D function
- Radius/Diameter function (lathe machine )
- Z+Y sum (lathe machine)

Parameters:

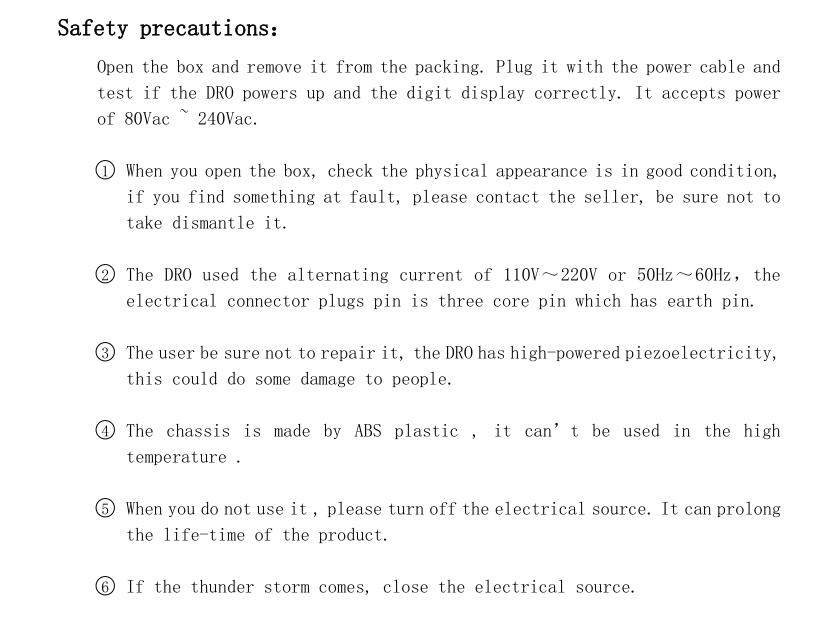

- Voltage Range: AC 85V~260V/50HZ~60HZ
- Power Consumption: 25VA
- Coordinates: 1/2/3/4
- Display: 8 digits display

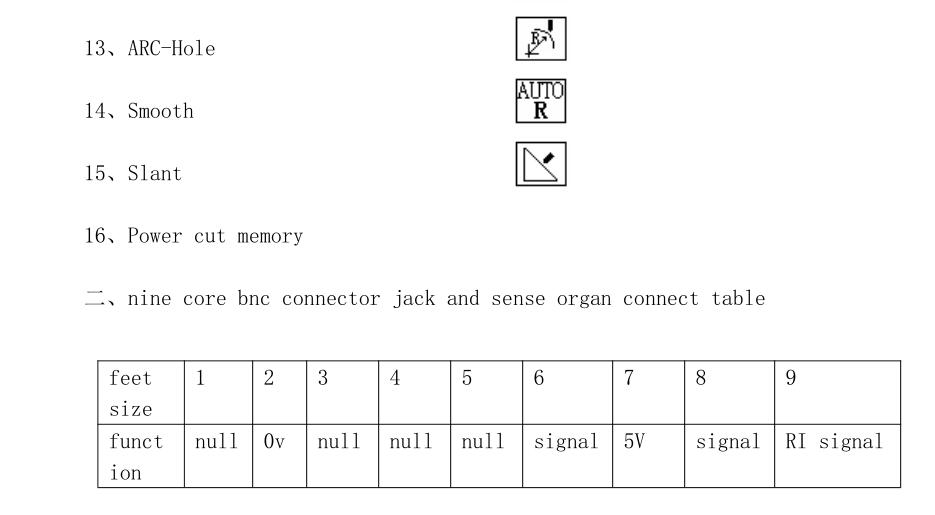

- Input Signal: TTL square wave EIA-442
- Input Signal frequency: 100KHZ
- Operation Keyboard: pressure sensitive key pad

Parameters of Linear Glass Scales
- High Precision linear scale
- Resolution : 5um (0.005mm) 0.0002"
- Signal : TTL square /wave EIA-442
- Grating pitch: 0.02mm (50LP/min)
- Accuracy: ±0.005 mm or 0.0002" (at 20 deg C)
- Reference marks at interval of 50mm
- Response Speed: 60m/min or 40ins/sec
- Cable length: 3 Meter

Scale Length available
- Physical length is differnt from the travel length
  100,150,200,250,300,350,400,450,500 ,550,
  600,650,700,750,800,850,900,950,1000mm 5um.
- Buyers may choose any scale measuring length under 1000mm at this price.In fact,The scale can be made from 0-3000mm.Scale length above refers to the real travel of the linear scale. Actual physical length is 141mm longer than travel. One inch equuals to 25.4mm.

Package Contents:
- Digital Readout
- Scale * 3
