3 Axis DSP Controller CNC DSP Control System M130 English Version for CNC Engraving Machine
Description:
- The system is a professional 3-axis motion controller based on the embedded platform. This DSP controller for CNC router, USB connection, can be used without computer.
- This item will be sent in English Version. Please purchase it with confidence.
- The system uses an embedded operating system and is not infected with computer viruses.
- The system adopts advanced adaptive speed control algorithm, which features high processing efficiency and processed surface of high quality.
- Simple operation, easy to learn and understand, easy to install, small size, suitable for all kinds of engraving machines, engraving and milling machines, cutting machines.
- The hand-held box and the interface board are connected by a 2-meter double-shielded 37-pin DB head for convenient wiring.
- The interface board is made of metal, and the side of the DB interface is exported, which is convenient for cabinet installation.
Features:
1. Max. 4 Axis; 2-4 Axis linear interpolation, any 2 axis circular interpolation;
2. Multi-I/O point controller mode, basic I/O is 8 input, 7 output respectively, each input and output can be customized M code;
3. Open collector output, the maximum output current is 500mA, which can directly drive the relay;
4. Pulse direction adopts differential output; the maximum interpolation pulse output frequency is 500KHZ;
5. Spindle Control: 3 I/O ports control 8 different speeds (3 lines 8 speeds), 1 I/O control the Start/Stop;
6. The System Support standard G-code. Also Support the popular CAD/CAM software, such as ArtCam, MasterCam, ProE and the like;
7. As users can interact with the external files via the U disk, it can work completely offline;
8. With this control system, you can preview the process path before machining, which enables it work stably and precisely in excellent processing continuity.
9. Small line segments are continuously processed at high speed, and the most efficient algorithm is automatically selected among various small line segment control algorithms;
10. Acceleration/Deceleration Mode: S curve;
11. Support super large file for machining;
12. Manual/Automatic machining function;
13. The skip execution function is processed according to the specified processing line number;
14. With breakpoint memory, power-down automatic protection function, near-point processing functions;
15. Support time lock function;
16. Support four operating permissions (visitor, operator, administrator, super administrator);
17. Input and output diagnostics;
18. Automatic tool setting function: with automatic homing, reference point return, workpiece origin saving and loading function.

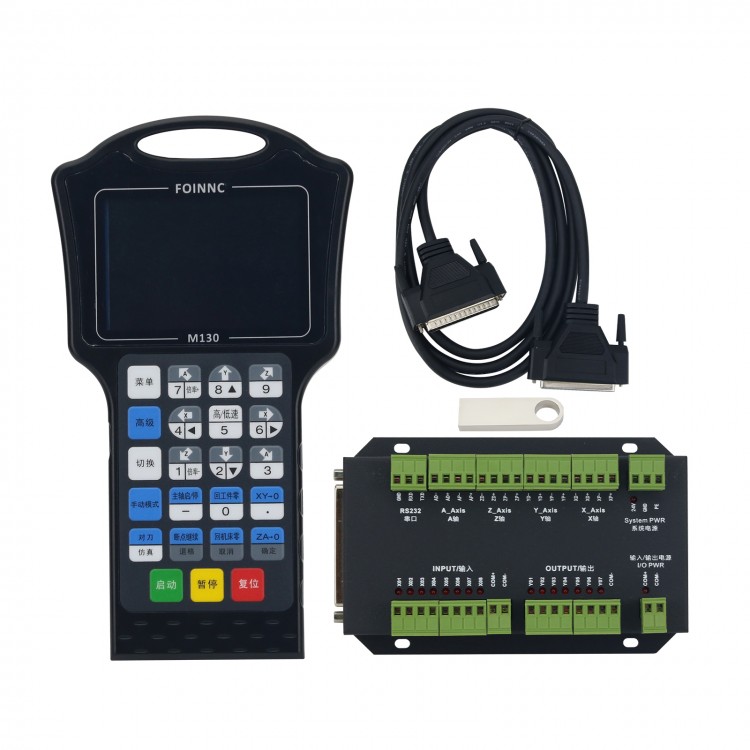

Package Included:
- 1 x DSP Panel
- 1 x U Disk
- 1 x Connection Board
- 1 x Connection Cable
