| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $599.27 | $587.04 | $568.70 | $544.24 | Contact US |
5DOF Low Cost Robot Arm ROS Open Source Robotic Arm (Slave Arm) with XL430-W250-T Servo Motors
$551.16
5DOF Low Cost Robot Arm ROS Open Source Robotic Arm (Master Arm) with XL330-077-T Servo Motors
$457.01
Low Cost Robot Arm ROS Open Source Robotic Arm (5DOF Master Arm + 5DOF Slave Arm) with Servo Motors
$1,005.56
3-Axis Mechanical Arm 3DOF Industrial Robotic Arm Silver Load Capacity 500g with Controller
Advantages:
- 6061 Aluminum Alloy
- Including 3pcs precision 42 geared motors
- Support Wifi control
- Easy operation
- 1:10 high-precision reducer
- 15 arc minutes
- Surface oxidation treatment

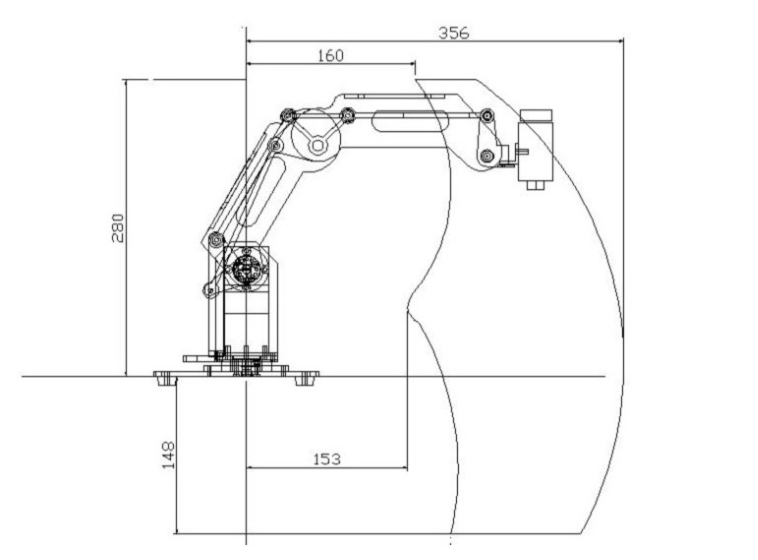

- 280mm arm span
- 500g load capacity
Specifications:
- Material: 6061 Aluminum Alloy
- Motor: 42 geared motor
- Deceleration Ratio: 1:10
- Maintaining Torque: 4.32 Nm
- Allowing Torque: 4.32 Nm
- Maximum Torque: 8.64 Nm
- Resolution: 0.18°
- Backspace: ≤15 arc minute
- Noise: ≤ 45 dB
- Efficiency: 96%
- Life Span: 20,000 h
- Phase: 2
- Step Angle: 1.8 deg.
- Voltage: 4.83V
- Current: 0.84A
- Electric Resistance: 5.75Ω
- Inductance: 9.3mH
- Static Torque: 2.8kg.cm
- Insulation Class: B
- Load Capacity: 500g
Package Included:
- 1 x Robotic Arm with Controller
Note:
- Black end cap.
- Not for 3D printing.
- It is assembled and ready to use.
