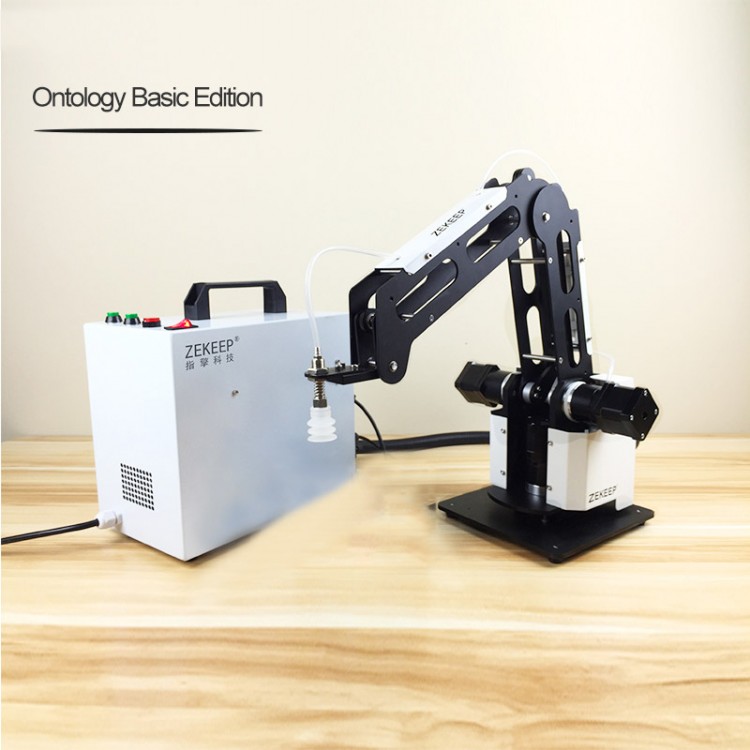

3-Axis Mechanical Robot Arm Industrial Manipulator Desktop Programming Robotic Arm with Air Pump

3-Axis Mechanical Robot Arm Industrial Manipulator Desktop Programming Robotic Arm with Air Pump

Working Parameters:
Number of axis: 3
Load: 0.5kg
Maximum working diameter of mechanical arm (including end tray): Φ460mm
Power supply voltage: 220V, 50HZ
Power input: 24V / 8A
Power: 150W MAX
Operating temperature: -10 to +60℃
Product model: ZK-bot301

Axis Motion Parameters:
X axis base working range: ±160 degrees
Y-axis big arm working range: 0 to +120 degrees
Z axis small arm working range: -70 degrees to +10 degrees

Machine Physics:
Base size: length 180mm * width 180mm
Body material: 6061 aluminum alloy, anodized
Control box size: length 260mm * width 160 * height 80mm
Packing specification: length 490mm * width 320mm * height 380mm

Stepper Motor Parameters:
Holding torque: 0.4N*M
Rated voltage: 24V
Rated current: 1.7A
Step angle: 1.8°
Number of phases: 2

Planetary Reducer Parameters:
Reduction ratio: 1:10
Maximum output torque: 5N*M
Backlash: less than 15 arc minutes
Rated input speed: 3000

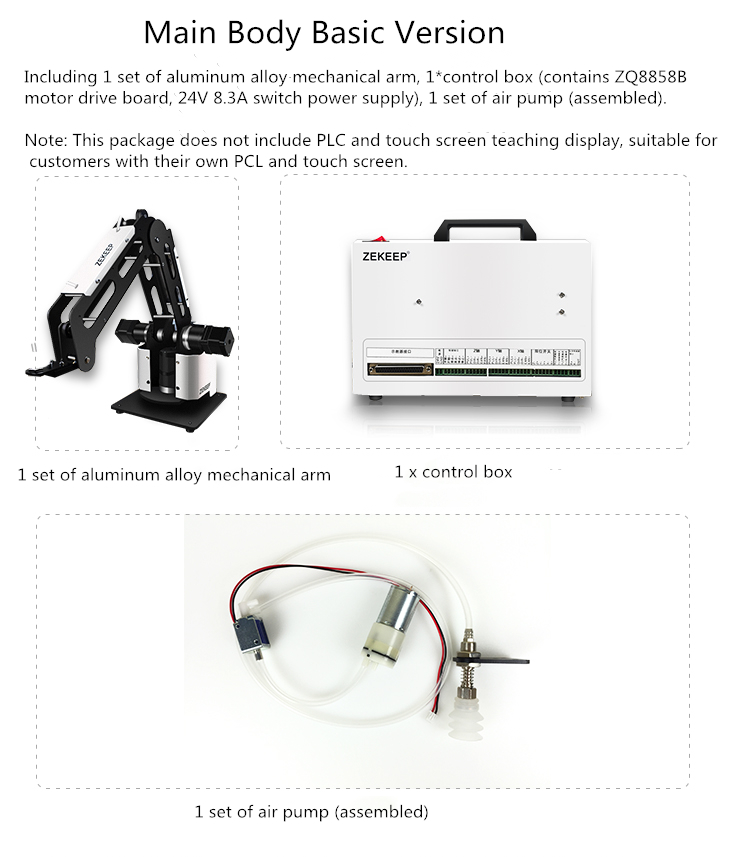

Package List:
-1 Set of Aluminum Alloy Mechanical Arm
-1 x Control Box
-1 Set of Air Pump (assembled)

Note:
1. The control box contains ZQ8858B motor drive board, 24V 8.3A switch power supply.
2. This package does not include PLC and touch screen teaching display, suitable for customers with their own PCL and touch screen.
