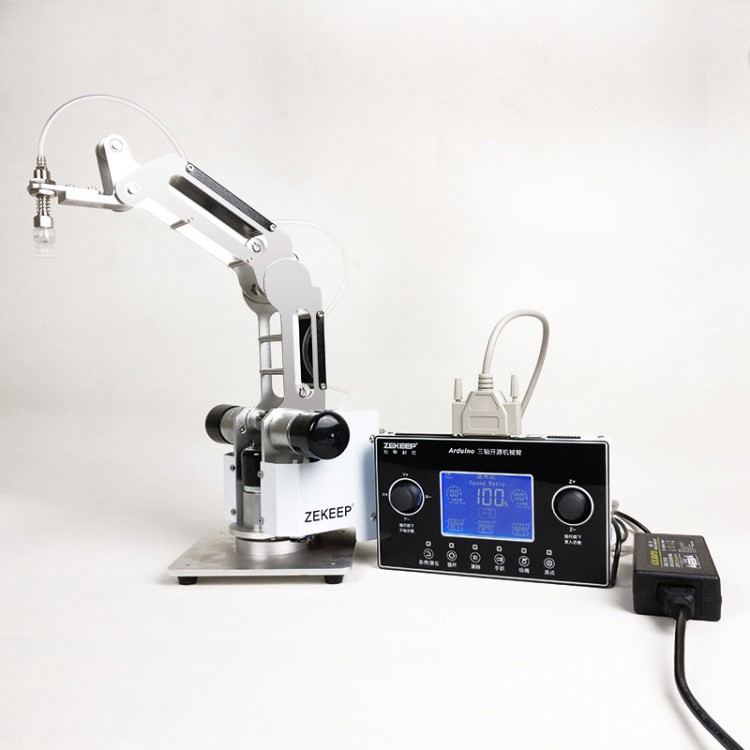

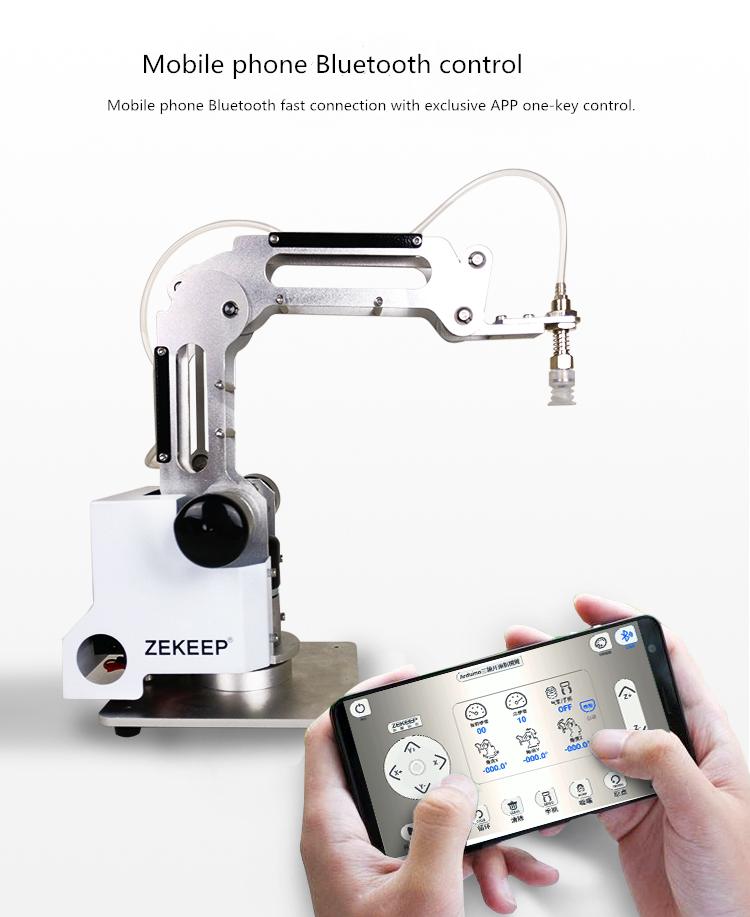

3-Axis Mechanical Robot Arm Industrial Manipulator UNO Open Source Desktop Programming Robotic Arm
Working Parameters:
Number of axis: 3
Load: 0.5kg

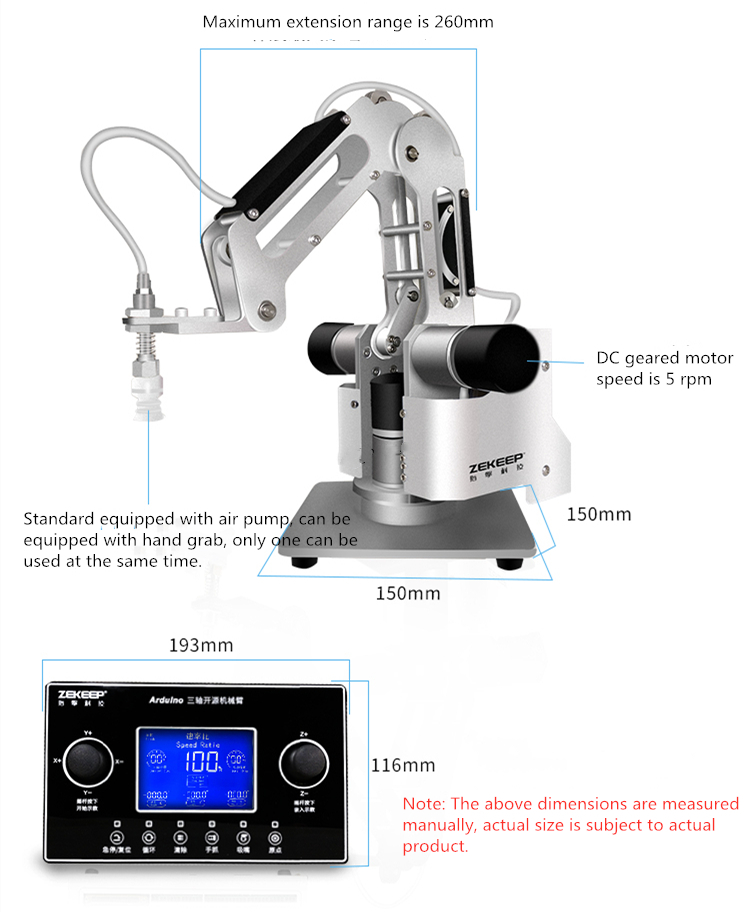

Maximum extension distance: 260mm
Power supply voltage: 220V, 50HZ

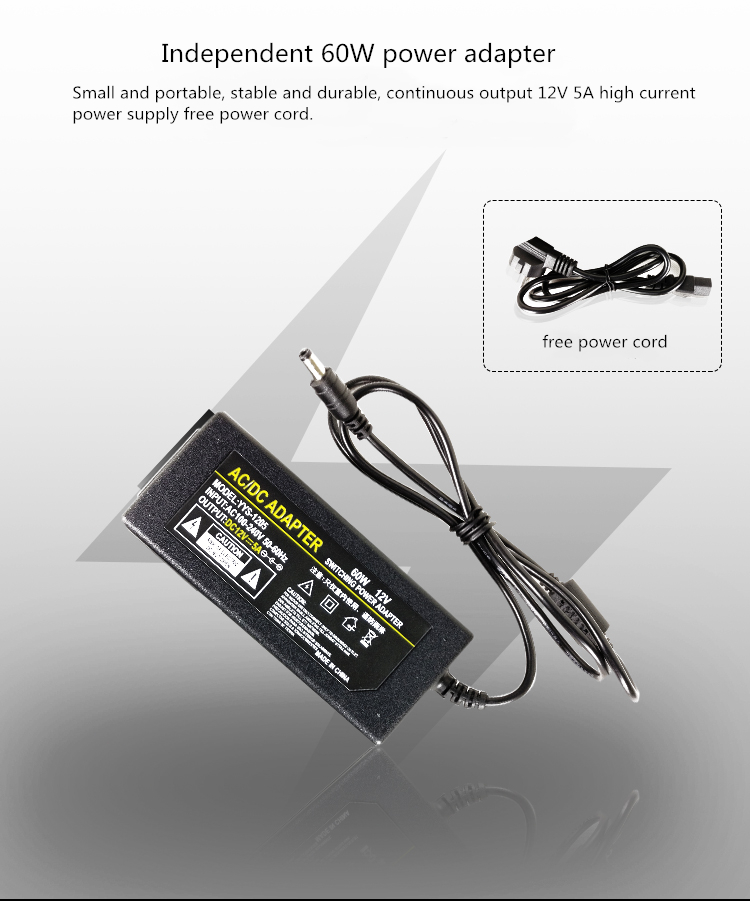

Power input: 12V / 5A
Power: 60W MAX
Operating temperature: -10 to +60℃
Motor speed: 5 rpm

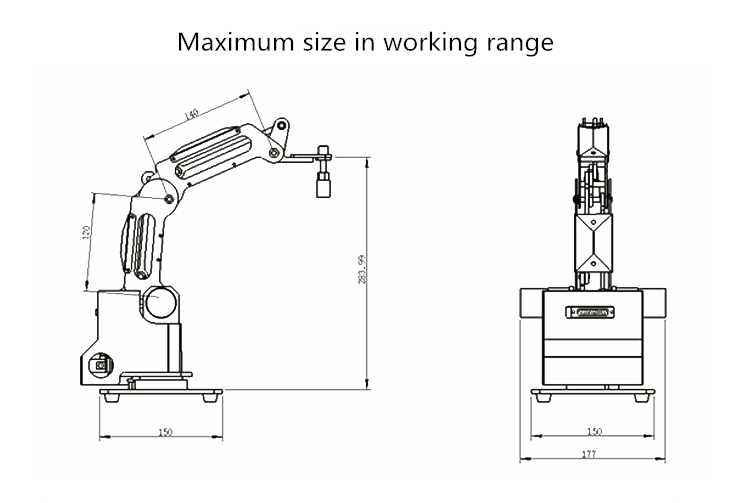

Movement Parameters:
X axis base working range: 0 to -320 degrees
Y-axis big arm working range: 0 to 90 degrees
Z axis small arm working range: 0 degrees to -70 degrees
Machine Physical Features:
Base size: length 150mm * width 150mm
Body material: 6061 aluminum alloy, anodized
Remote control box size: length 193mm * width 116mm * height 26mm
Packing specification: length 375mm * width 240mm * height 355mm

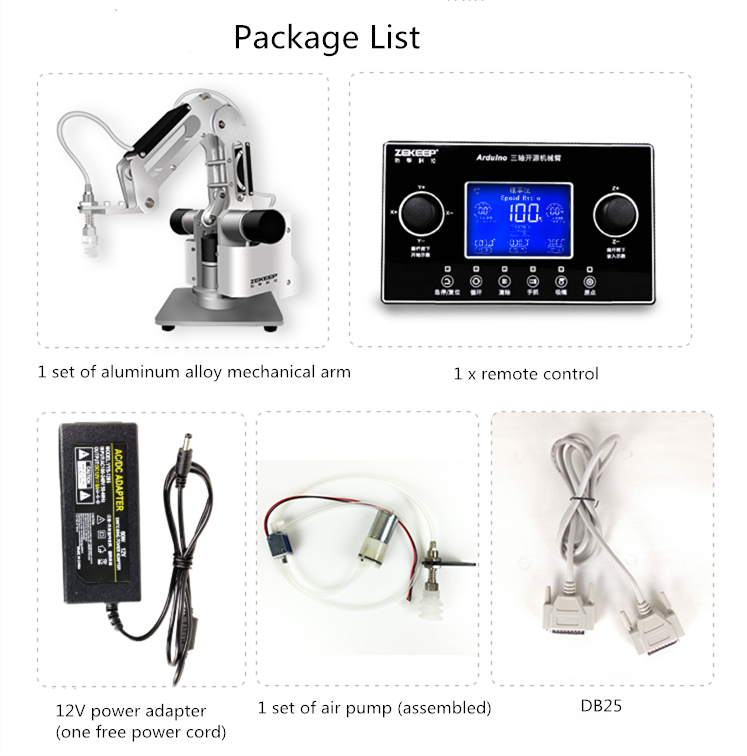

Package List:
-1 Set of Aluminum Alloy Mechanical Arm

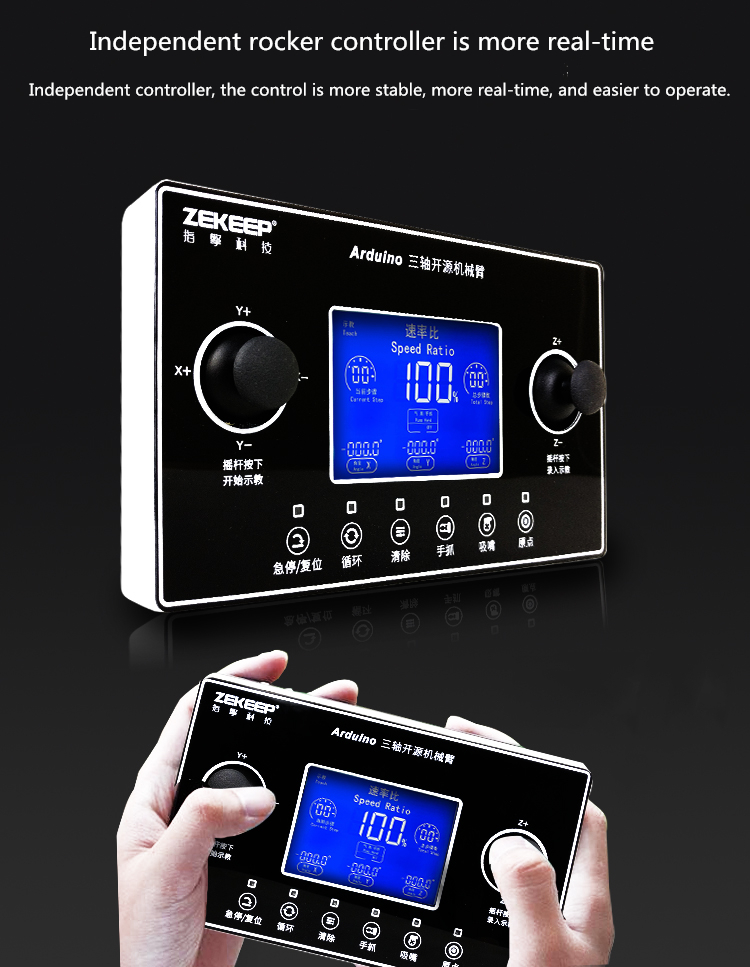

-1 Remote Control
-1 x 12V Power Adapter
-1 Set of Air Pump (assembled)
-1 x DB25
