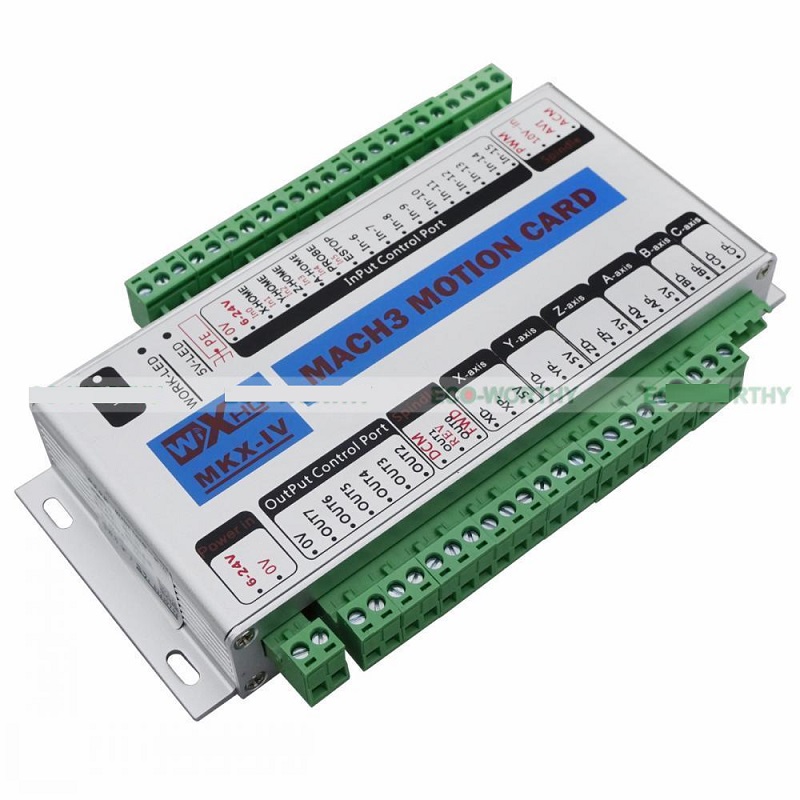

Product Description:This is the latest generation 3 axis motion control card,which is the fourth generation calling MK3-IV.The maximum step-pulse frequency is 2MHz.
Axis output control:
- Drive Current:Isolated open collector output; 5V, 20mA
- Drive:Pulse + direction output
- Output frequency:2000KHZ
- Axes:MK3:3-axis
- Isolation Voltage:3.5KV
Spindle inverter output:3 types of output modes:
- Analog voltage output:0—10V
- PWM output:5V,1KHZ, Duty;0-100%
- Pulse+direction output:5V,15HZ to 4KHZ
8 IO output:
- Drive Current:Isolation:50mA,25V
- Isolation Voltage:3.5KV
16 IO output:
- Input Current:Isolated inputs,5 mA,maximum voltage 25V
- Isolation Voltage:3.5KV
USB interface:Complies with USB2.0 standard
Details:
- USB Plug (no more slower LPT/Printer Ports)
- Supports both Stepper and Servo motors
- Runs at 400KHZ
- 3 Axis Controller
- 6-36VDC Power requirement to power your accessories
- Spindle support (inverter, inverter with speed regulator - PWM)
- Supports wireless MPG (WiXHC Version Board)
- 16 Inputs
- 7 Outputs
- Wire limit switches, probe and relays
Features:
Support all versions of Mach3
- Support system:Windows XP,2000,Vista,7.(not including Mac OS)
- USB jack does not need to install the driver,plug and play under all versions of Windows.
- Full support USB hot-swappable,USB connection status monitoring at any time.Under Mach3 working state,USB cable unplugs and then plugs in,but also the normal connection.
- Supports 3-axis linkage.
- Maximum step-pulse frequency is 400 KHz,can connect servo driver and stepper driver.
- The indicator light indicates various working status,such as USB connection,Mach3 connection and so on.
- 16 input IO.
- Speed testing function,the spindle actual speed displays on the Mach3 interface in real time.
- Onboard isolated power supply,not need external power supply.
- All IO port fully isolated,strong anti-interference,stable performance
- Support XHC series of wireless electronic MPG,such as WHB04 MPG.
- Support spindle speed PWM output;support spindle pulse and direction output;support spindle speed output from 0 to 10V analog voltage.

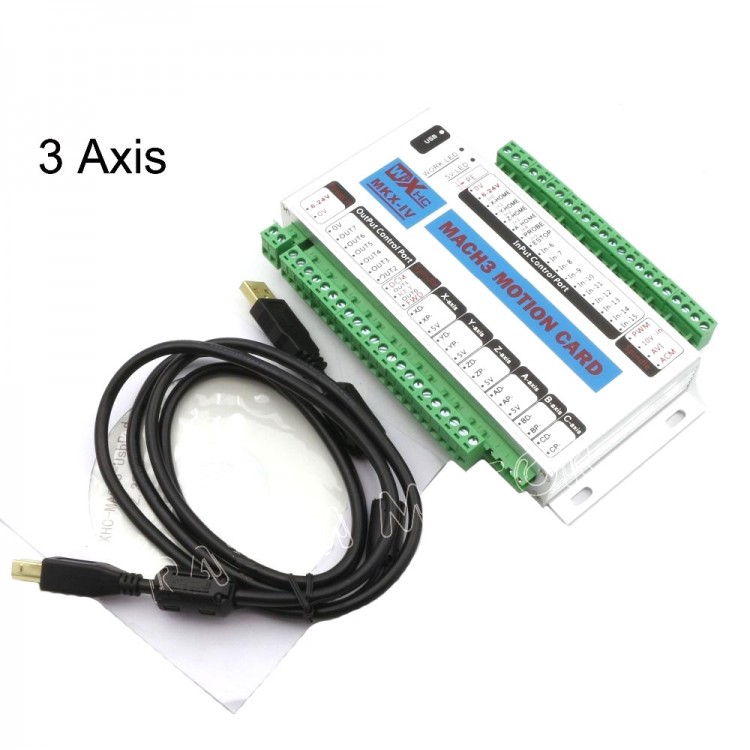

Package List:
- 1 x CNC Mach3 USB 3 Axis Motion Control Card
- 1 x USB Cable
- 1 x Manual
- 1 x CD
