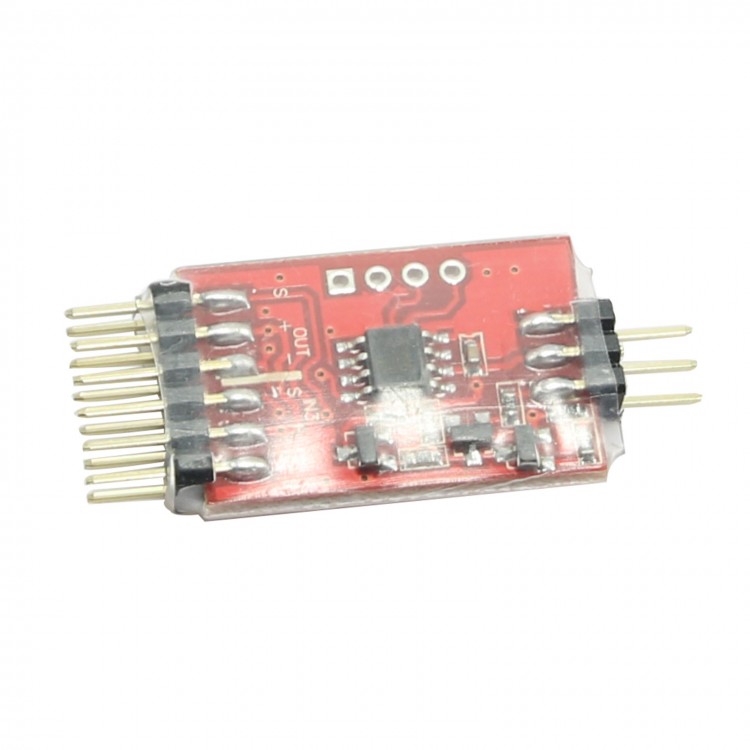

3 Channel Video Switchover Module 3-way Video Switch Unit for FPV System
Description:
- This module can connect 3 video sources and you can switch between different video sources with a 3 position switch to your ground station. If you have multiple cameras on your plane, this is what you need.
- This is a 3 channel switchover module,adopts high speed video switch chip,effectively reduce the vibration of the Video image.
- Compatible with 3 position Switch Channel
- Port "in" is video signal input,IN1,IN2,IN3,OUT is video output
- "-" is negtive pole,"+" suspend,"S" is receiving video signal
Specification:
- Model:PV3IN1
- Size: 4.5*1.8*0.5
- Input voltage:4.8-6v
- Input channels:3
- Output channel: 1
- Video signal impedance: 75Ω
- The control channel can be any proportional channel or 3-position switch channel. (2-position switch channel can only switch within two video input signals)
- Video signal connector sequence: "-" for negative, "+" not used, "S" for video signal
