3 DOF Robot Arm 270 Degree 500g Air Pump Robotic Arm Kit Educational Robot Arm
Description:
- this arm requires arduino kit or 16 channel bluetooth controller board (not included,please buy seperately)
- This robot arm adopts 3pcs large power digital servo, the start current is 2A above
- the fuslage adopts 1.5mm thichness material and the surface has been processed by Paint treatment

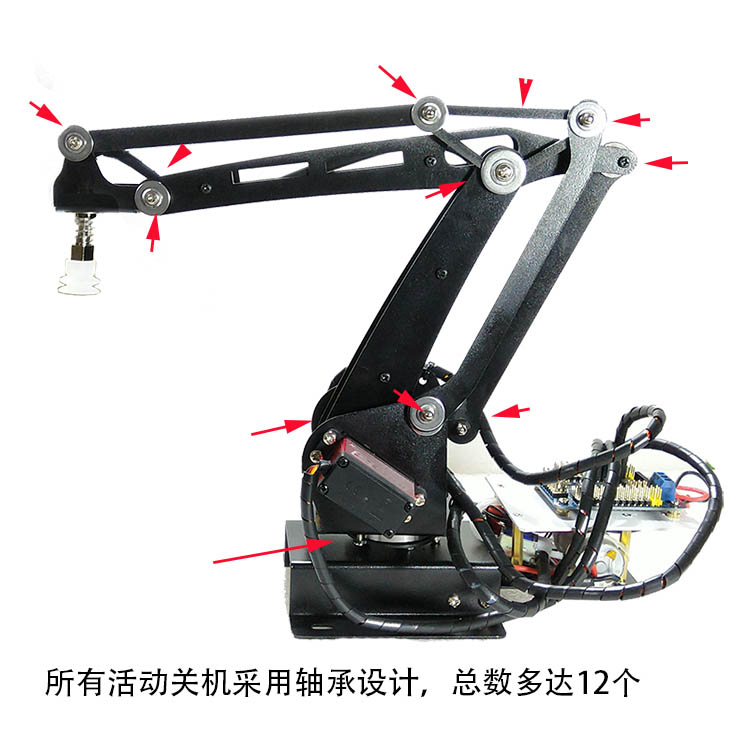

All the movement jiont adopts bearing, and this robot arm uses 12pcs bearing as photo shown
The mounting base size as photo shown,if you need install in other devices,please install the base via the three holes in the center
Specification:
- the minimium working distance:170mm
- the max working distance:400mm

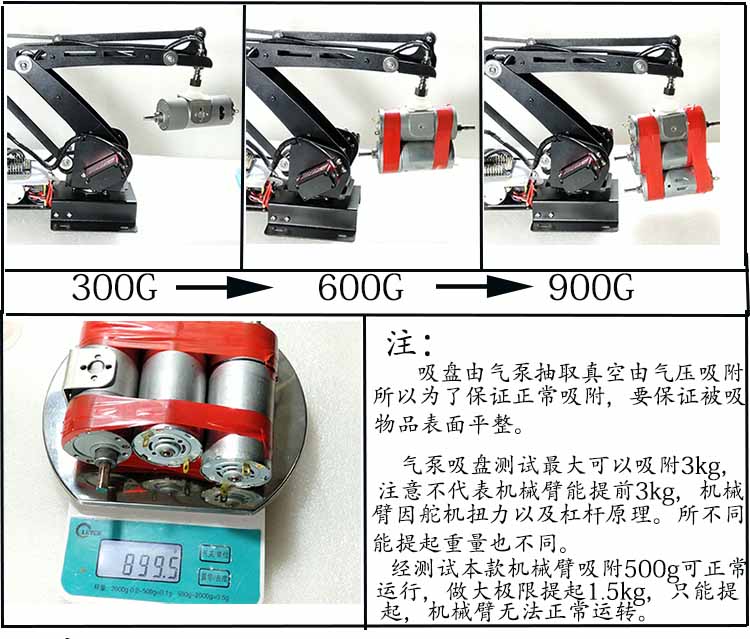

- Rated carry load:500g
- Max carry load: 900g
- Wroking degree:270degrees
KS-3620 servo specification:
- Model: KS-3620 all-metal shell 20kg servo digital waterproof steering gear
- Torque(4.8V): 12.5 kg-cm
- Torque(6.6V): 15.0.0 kg-cm
- Speed: 0.07 sec (4.8V) | 0.66 sec (6.0V)
- Operating Voltage:4.8 ~ 6.6 DC Volts
- Weight: 55 g /Servo Motor
- Bearing Type:Ball Bearing x 2
- Motor type: high-speed magnetic motor
- Working temperature: -20 ℃ -60 ℃
- Working frequency:500μs / 2500hz
Package included:
- 1 x air pump with Servo
Please note the controller does not included
