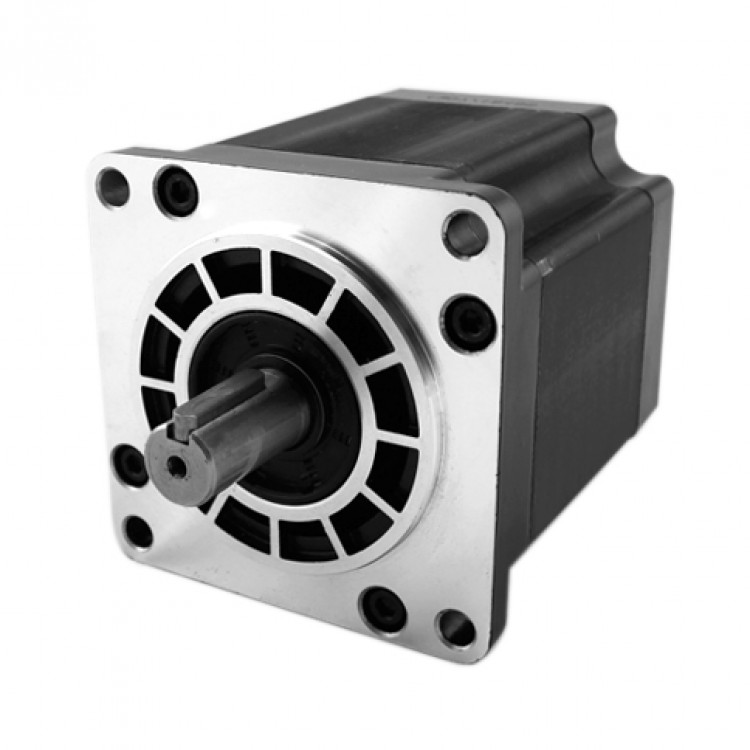

3 Phases 110 Stepper Motor 12nm 16nm 20nm Large Torque Stepper for Motor Driver LC3422HTC LC3722HTC

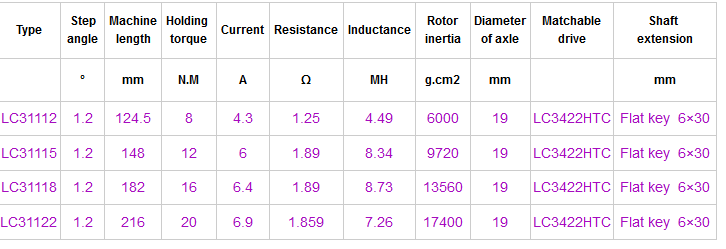

Parameters:
- Name: 3 phases 110 hybrid stepper motor
- Size: 110 * 110 mm
- Stepping angle: 1.2 degree
- Motor length: 124.5 mm-216 mm
- No. of leads: 4
- Holding torque: 8 N.M --20 N.M
- Shaft diameter: 19 mm
- Weight: 5.0 kg- 11.1 kg
- Matchable driver: LC3422HTC / LC3722HTC etc
- Step accuracy: 5%
- Temperature: 80 degree C Max
- Ambient temperature: -20 -+50degree C
- Insulation resistance: 100MΩ Min 500VDC
- Withstand voltage: 500V AC 1minute
- Shaft axial play: max 0.06mm(450g  load)
- Shaft radial play: max 0.08mm(450g   load)

Package included:
- 1 x 3 Phases 110 Stepper Motor
