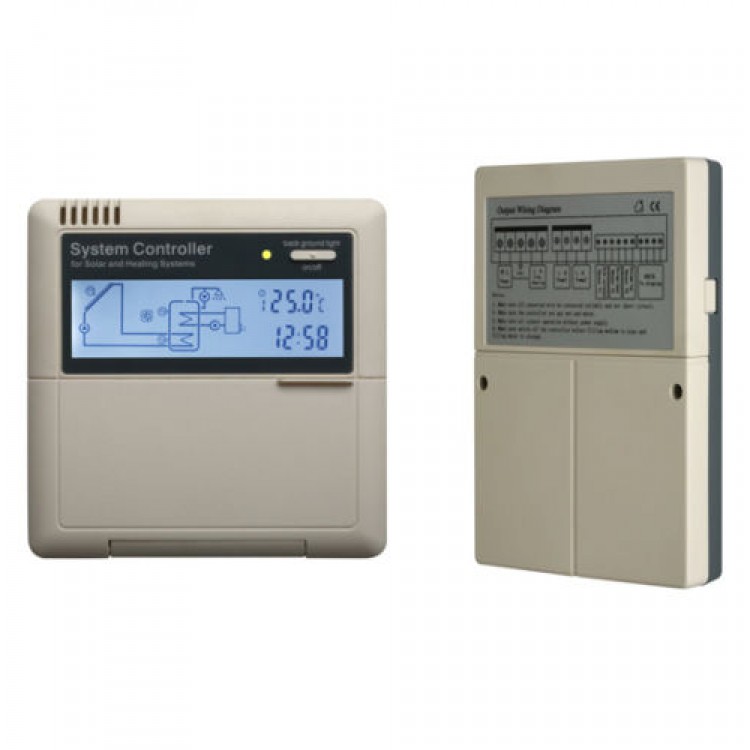

3 Sensors 3 Outputs Solar Water Heater Controller Temperature Control SP24 110V
Description:
- 3 sensors input ,1 x Auxiliary heating output , 2 x Relay output
- Solar water heater system Controller SP24 , 110V

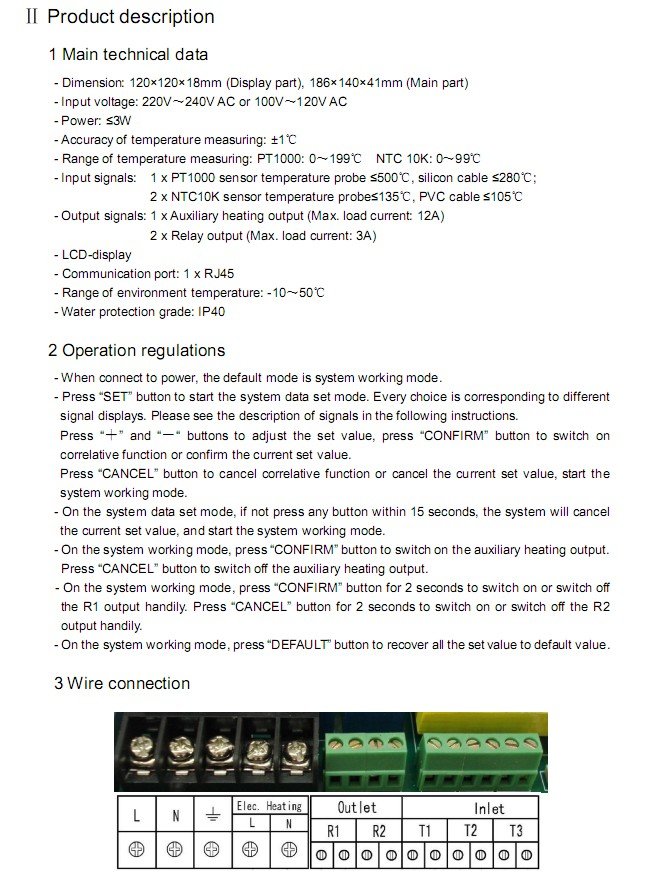

Main technical data:
- Dimension: 120×120×18mm, 186×140×41mm
- Input voltage: 200V~240V AC or 100V~120V AC
- Power: ≤3W
- Accuracy of temperature measuring: +-1'c
- Range of temperature measuring: 0~99'c
- Input signals:
1 x PT1000 sensor temperature probe ≤500'c, silicon cable ≤280'c;
2 x NTC10K sensor temperature probe≤135'c, PVC cable ≤105'c
- Output signals:
1 x Auxiliary heating output (Max. load current: 12A)
2 x Relay output (Max. load current: 3A)
- LCD-display
- Range of environment temperature: -10~50 degree C
- Water protection grade: IP40
- Package Weight:1.400kg (3.086lb.)
Main Functions:
- Time display
- Temperature difference circulation
- Storage tank overheating protection
- Emergent stop of system overheating
- Frost protection of pipeline and collector
- Three periods of time adjustable on pipeline circulation
- Three periods of time adjustable on auxiliary heating
- Anti-bacteria function
- Holiday function
Package Contents:
- 1 x Water Heater Controller
