30-6000MHz Handheld Portable RF Spectrum Analyzer with SD Card GPS Function XT-360-Pro

30-6000MHz Handheld Portable RF Spectrum Analyzer with SD Card GPS Function XT-360-Pro

Description:
It features 2-in-1 charging port and data interface. The spectrum analyzer is designed with built-in GPS and SD card (32GB) to achieve device coordinate positioning, UTC time synchronization to record and store spectrum data, and can also implement measurement recording and playback functions, drive test data export, etc.

Functions:
The overall functions of spectrum analyzer includes real-time spectrum mode, thermodynamic chart and waterfall map mode.

1.Real-time Spectrum Analysis Mode: Real-time spectrum curve scanning. You can set SPAN (scanning width) / RBW (resolution bandwidth) / CENT (center frequency) / MARKER (marker point) function, or set staring and stopping frequency, MAXHLOD (maximum value holding), maximum power (MAX/PEAK) automatic detection and identification functions.

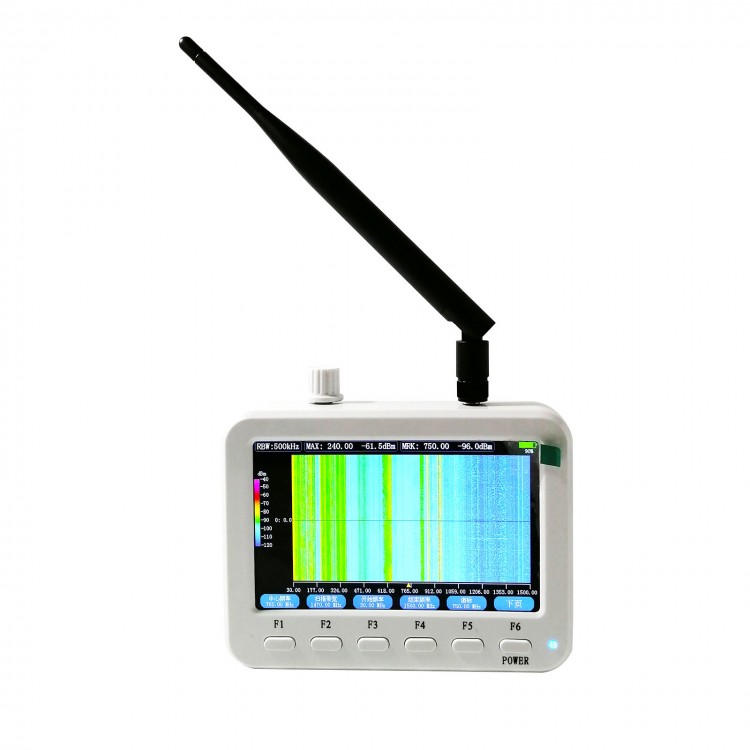

2.Spectrum Waterfall Chart Mode: Display time-varying spectral distribution over a period of time (the duration is related to time, SPAN and RBW. It can last for a few seconds to tens of minutes). The color of signals is marked by red and blue. The distribution of the spectrum over time makes it easy to see issues such as frequency interference or emissions leakage.

3.Spectral Thermodynamic Chart Mode: Shows the density of repeated occurrences of spectrum over a period of time. The single occurrence is blue. The more the number of repetitions is, the more the display becomes red, which is convenient for analyzing the statistical characteristics of spectrum over a period of time.

It supports GPS positioning information, and also features real-time spectrum screenshot function and real-time spectrum recording.

Specifications:
- Model: XT-360-Pro
- S11 Reflection Coefficient (Typical): -15 to -20dB
- Frequency Range (MHz): 30-6000MHz
- Power Error:
  ≤ 1dB (30MHz ~ 3GHz, after calibration);
  ≤ 2dB (after full frequency calibration)
- RBW (KHz) Setting: 3, 10, 20, 50, 100, 200, 500KHz
- DANL (Average Noise Level, 3KHz RBW):
  -130dBm @ 3kHz RBW (typical value);
  -132dBm @ 3kHz RBW (minimum)
- Normalization Noise Level:
  -163dBm / Hz (typical value);
  -165dBm / Hz (minimum)
- Amplitude Accuracy: ±1dBm
- Signal Measurement Linear Range:
  -132 to -25dBm (30M ~ 1.4GHz);
  -128 to -20dBm (1.4G ~ 4.4GHz);
  -120 to -10dBm (4.4G ~ 6GHz)
  (Larger signal plus attenuator access)
- Fastest Scanning Time per Point: 1ms (RBW = 500kHz)
- Display Refresh Frequency: Fastest 8Hz (8 screen refreshes per second)
- Center & Scanning Width Settings: Support
- Marker: Support
- Automatic Peak Detection: Support
- MAXHOLD Function: Support
- Adjustable Reference Level: Support
- Waterfall Chart (Chromatogram): Support
- Thermodynamic Diagram: Support
- Built-in RTC Clock: Support
- Built-in SD Card: Support
- GPS: Support
- Sleep Time Setting: Support
- Language: English, Simplified Chinese, Traditional Chinese
- LCD Resolution: TFT 800 x 480
- LCD Brightness Setting: Support
- LCD Size: 5 inches
- RF Interface: SMA-K
- Charging Time: 4-5 Hours
- Adapter Standard: 5V/ 2A (Easy application for power bank)
- Charging Interface: Micro USB Interface

Applications:
- In operator applications, it can cover all sub-6G frequency bands, covering all frequencies of various operators, including the various frequency bands of 5G communications that have been recently established. ).
- In military field, it can be used for exercises and battlefield electromagnetic assessment, technical reconnaissance, communication, radar, and measurement and maintenance of various RF units.
- In the field of university applications, it can be used in batches for electronic related professional colleges, undergraduates and graduates, as well as for projects and experiments.
- In grid applications, it can be used as a test and production tool for ubiquitous electric power Internet of Things, a test tool for grid-specific frequency bands (such as 230MHz dedicated frequency band).
- In civil aviation applications, it can be used as a test tool for communications and airborne wireless equipment in civil aviation dedicated frequency bands.
- In the field of radio and television applications, it can be used as a monitoring tool for cable CCTV signals, as well as a monitoring tool for FM radio, emergency frequency bands, and black broadcasting.
- In the field of rail transportation, it can be used as a railway wireless private network (GSM-R standard, future LTE-R standard) road test tool, online monitoring instrument for subway wireless train control system.
- In the field of drones, such as industrial drone communication and interference testing, consumer drone signal testing.
- In the field of wireless audio, such as event stages, concerts and parties, set the microphone frequency plan, signal attenuation of RF cables, channel interference, and the strength of signal coverage.
- In the field of research and development, production and testing of the Internet of Things, such as gateway and wireless module measurement, remote control, walkie-talkie, wireless toys, etc.
- In the field of in-vehicle equipment, such as: wireless car key evaluation, in-vehicle wireless equipment, tracker detection, vehicle electromagnetic interference and shielding test, V2X test tools for connected vehicles.

Package Included:
- 1 x Set of Spectrum Analyzer
