Product Description:
- The product can produce 30 to 70 MHz frequency range of any a frequency signal.It can adjust the way of analog voltage,to adjust the frequency of the signal.Signal outputs as a standard radio frequency signal,the impedance is 50 ohms,the waveform is a sine wave.
- It is widely used in radio frequency measurement,all kinds of interference machine,antenna measurement,power amplifier debugging,etc.Widely suitable for various colleges and universities,Research Institute,and the technology company R & D test use.
Electrical performance parameters:
- Working voltage 12V
- Output frequency range 30MHz---70MHZ
- Control voltage regulation range: 0-12v,0V output 30MHZ,12V output 70MHZ.
- Output power 10dBm
- Output signal harmonics,the typical value of -15DBC
- Supply current 50mA

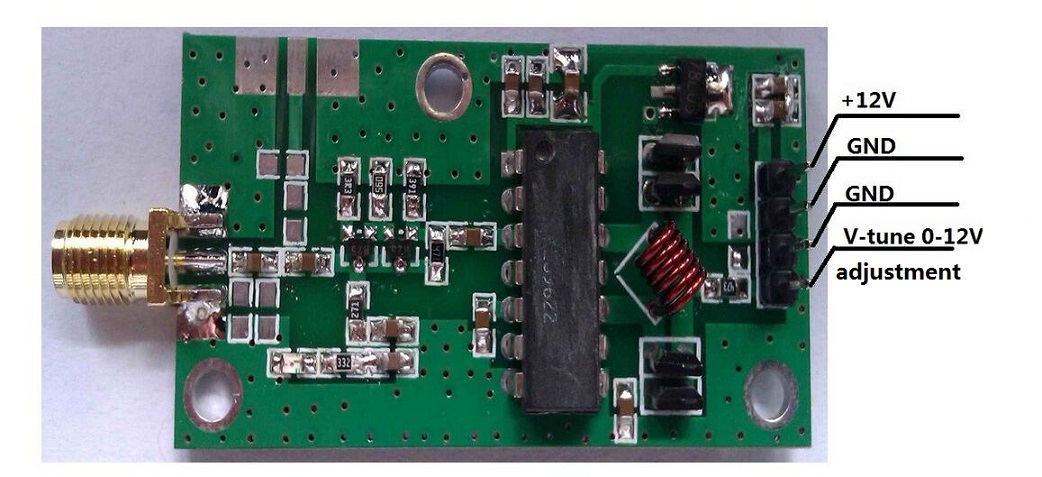

Golden SMA: RF signal output
The left most four pin: control signal
The left most four needles:
Then the bottom one: +12V power supply
Middle two are ground: then the negative power supply
The top one: VCO,frequency adjustment terminal,connected to the 0-12V variable voltage
Package List:
- 1 x VCO RF Signal Source
