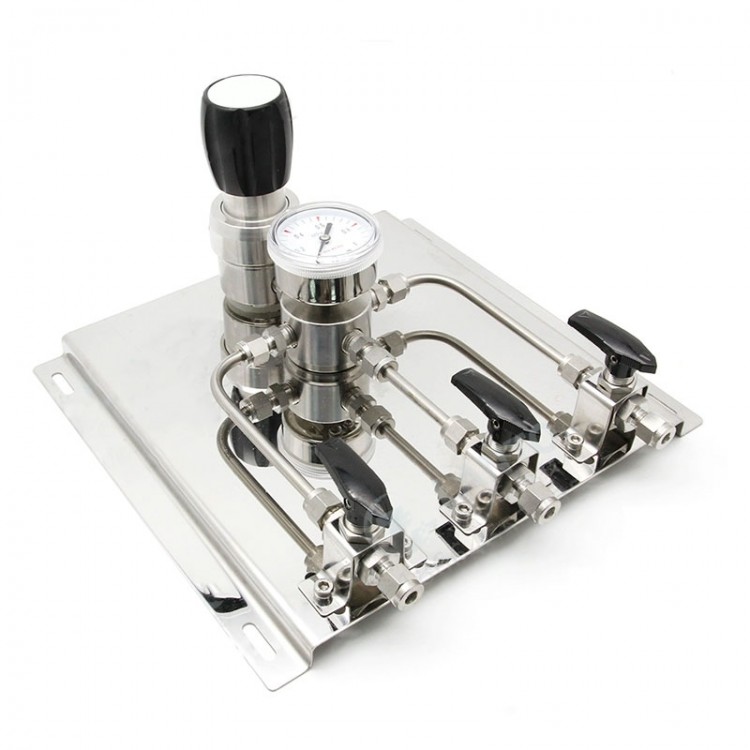

3000psig Stainless Steel Gas Control Panel Special Gas Pressure Reducing Valve Pressure Relief Valve
Structural Features:
- Single-stage pressure reducing valve for special gas
- Has passed withstanding voltage test and leak test
- Stainless steel pressure gauge for clear reading
- Wall-mounted type
- With one inlet and three gas outlets
Material Structure:
- Main part of the pressure reducer: SS316L
- Pressure reducer gaskets: PTFE, FCTFE, PEEK
- Pressure reducer diaphragm: SS316L
- Main part of stop valve: SS316L
- Tubing: 1/4" SS316L seamless tube
Technical Parameters:
- Maximum input pressure: 3000psig
- Optional output pressures: 0-25psig, 0-50psig, 0-100psig, 0-160psig and 0-250psig
- Safety test pressure: 1.5 times the maximum input pressure
- Applicable temperature: -40°F to +165°F (-40°C to +74°C)
- Leakage rate: 2*10^-8atm cc/sec HeC V: 0.15
Package Included:
- 1 x Pressure Reducing Valve
Packaging Details:
- G.W.: 3kg
Note:
- Please inform us of the output pressure you want when purchasing. Thank you!
