Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $1,739.72 | $1,704.21 | $1,650.95 | $1,579.95 | Contact US |

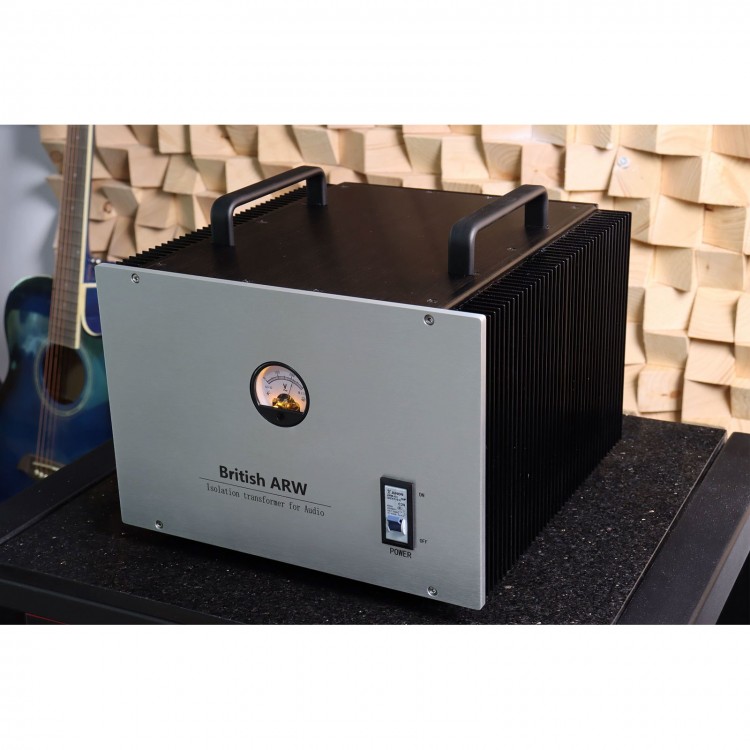

3000W British ARW Audio Isolation Transformer with American Standard 220V 110V Output Sockets
Features:
- 3000W isolated power supply with British transformer for ARW
- Square copper wire is used to wind EI transformer
- British transformer, EI transformer, is a high-end isolation transformer
- The noise generated by the isolation transformer is less than 35dB
Package Included:
- 1 x Isolation transformer
Note:
- Power cable is not included.
Packaging Details:
- G.W.: 43kg
Its
internal resistance is lower than that of a toroidal transformer (the
internal resistance of a 3000W toroidal transformer on the market is
0.3-0.8 ohms). Its internal resistance is only 0.2 ohms!
Its anti-interference ability is several times stronger than that of a toroidal transformer!
The isolation transformer itself has strong resistance to DC interference, so there is no need to add a DC removal circuit.
Choose a toroidal transformer or an EI transformer?
Because
toroidal transformer has no magnetic gap in core, the leakage of
magnetic field is very small, and the number of coil turns is small, so
its internal resistance can be very low, the quiescent current is very
low, and the volume is small, and it is widely used!
There is a
magnetic gap in the core of EI transformer, and the leakage inductance
is larger than that of toroidal transformer, and its efficiency is not
as good as that of toroidal transformer. However, EI transformer has
obvious advantages over toroidal transformers when it is used for for
the purpose of anti-interference isolation transformer.
1.
Anti-DC interference is the weakness of toroidal transformers, while
anti-DC interference is the strength of EI transformers: DC interference
occurs when the positive and negative waveforms of the mains
electricity waveform are asymmetrical. Even when there is DC 1V, more
than 2A bias current will be produced for 0.4ohm toroidal transformer.
After
superimposing the mains electricity, because the core of the toroidal
transformer has no magnetic gap, the core will enter the state of
magnetic saturation, so that the efficiency of the toroidal transformer
decreases, and it even cannot work. And the toroidal transformer will
also produce abnormal noise when a fuse is burned. In order to keep the
circuit working properly, as shown in the figure, the primary causes the
DC removal circuit:
A. After the primary of the toroidal transformer
is added with a DC removal module, the internal resistance will
increase (with 3 bridge rectifiers and 1 diode, the current will drop by
0.85V).
B. After having this DC removal module, it doesn't matter how thick the wall line in front of you is upgraded.
C. The current passes through a diode nonlinear device, which deteriorates the sound, and your good wire cannot function.
If
you have toroidal isolation transformer, you can try to get rid of a DC
removal board, and the sound will become loose and natural. But when
the interference is stronger, the toroidal transformer will still
produce noise.
EI transformer has magnetic gaps, and when DC
voltage generates current, the transformer will not be magnetically
saturated. EI transformer resits to DC interference!
2. Anti-interference ability:
Since
the toroidal transformer core has no magnetic gap, the frequency
bandwidth, the interference signal passes through the core, coupled to
the secondary! While the core of EI transformer has a magnetic gap, the
frequency band is small, the interference is attenuated in the leakage
inductance, and its anti-interference ability is strong.
Toroidal
transformers have poor anti-interference ability. Its input noise is
375mV, and the output is 190mV. However, the British transformer has an
input noise of 375mV and an output of about 50mV.
The primary
stage of the toroidal isolation transformer is added with a DC removal
circuit, the internal resistance is greatly increased, and the
anti-interference effect is not strong. After using it, many audiophiles
find that when they first use it, the effect has improved
significantly, but after using it for a long time, they find that the
sound is too clear, the homophony of the instrument becomes less, it is
not user-friendly, and the sound is not lively. With the EI transformer,
there is no isolated DC board and no output capacitors. After the
comparison, the noise is lower, the details are rich, the homophony of
the instrument is rich, natural, and the musicality is very good.
Advantages of British transformer:
-
The internal resistance of the transformer is 0.2 ohms, which is lower
than the internal resistance (0.3-0.8 ohms) of 3000W toroidal
transformers commonly found in the market.
- It uses square copper
wires of 5.6 square millimeters to wind. The inductance, transformer and
sound of the square copper wires are particularly good.
- In order
to maximize the current output, the transformer reduces the internal
resistance, and the number of turns is designed to be less than normal,
so that a large wire diameter can be used. This design depends on
high-temperature resistant insulated wires.
- In addition, if the
surface area ratio of square copper wire is 27% more than that of the
round copper core (when the side length and diameter are the same), the
current will go to the surface, which is equivalent to the internal
resistance of the copper core is smaller, and the system is better
restored.
What are the characteristics of isolation transformer and filter in terms of technical indicators?
As
pictured above, the filter does not have the ability to remove DC. It
has no suppression ability against common-mode interference from
60Hz-9KHz. However, shielded EI transformer is able to remove DC and
60Hz-9KHz common mode interference!
The reasons to choose our isolation transformer:
1. This power supply does not add a DC removal board, relying on its own strong anti-DC ability!
2. The power supply has a shielding layer. Grounded when installed, it will attenuate 0-1Mhz common-mode interference.
3. This power supply adopts EI transformer, with magnetic gap, which can attenuate the interference of 9K-30M.
4.
The power supply controls the noise generated by the isolation
transformer to less than 35dB. We do not sell products over 35dB.
Original British transformer:
Second-hand
British transformer is used. The system has a wide frequency response,
less noise floor, a warm mid-range, a powerful low frequency, a thick
sound, and rich overtones. The sound of the instrument will be clear and
shiny, making it unforgettable for you to listen to!
1. The
product uses a second-hand original British transformer. We replace the
power cord that came with it. Pure copper wire of the same size as the
original wire is used.
2. Strong shock absorption and noise reduction:
-
An aluminum shell is used, the heat dissipation effect is good, it will
not resonate with the transformer, and the vibration is small;
- The
shell is fully sealed and has no heat dissipation holes (to prevent
humming from coming out). Shock absorber adhesives applied to the inside
of the housing to minimize humming.
- Adding shock absorber when installing the transformer can greatly reduce the vibration of the casing!
3. The product has passed strict testing before shipment:
Eliminate
the safety hazards caused by the second-hand transformer. Each
isolation transformer has been tested for 1500V withstand voltage.
4. Premium materials:
- Original IG8300W/RD/RN receptacle for Cooper -196 cold treatment.
-
The socket is hospital grade. All contact points are high-grade brass.
The copper sheet at the contact points is larger than the general IG8300
and is used in more quantities, providing safe conditions for the use
of high current through/low temperature work surfaces. Enthusiasts'
evaluation: Its sound characteristics are strong in the full range of
liveliness.
5. Soft start and protection during shutdown:
-
There will be 10 times the working current when the machine is turned
on. And it is easy to trip the air switch. Soft start allows the current
to increase slowly. When the current increases to normal, the
potentiometer will be short-circuited and it will be turned on directly
to prevent the air switch from tripping and impacting the power grid;
-
When the power supply is turned off, the output will have a
back-voltage of several hundred volts, and a piezo-resistor will absorb
it to effectively protect the electrical appliance.
6. Input socket:
The
best HIFI professional-grade socket is produced in Taiwan, with
balanced sound, atmosphere, thickness, stability, and outstanding
low-frequency elasticity.

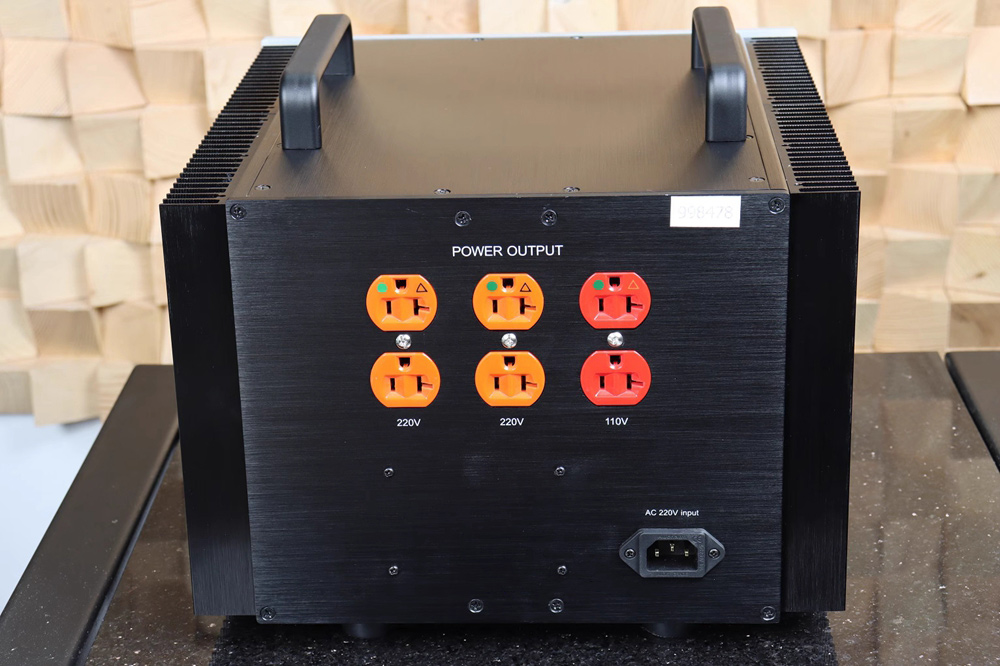

7. Power supply output:
US standard output sockets.
8. Original cable for PRYSMIAN:
Compared
with other power cords, the sound performance for PRYSMIAN cable: pure
thickness, gorgeous, good extension at both ends, dynamic sharpness,
first-class control, and good sense of liveness! It is equivalent to
upgrading the power cord of the whole system!
No-load Power Test:
