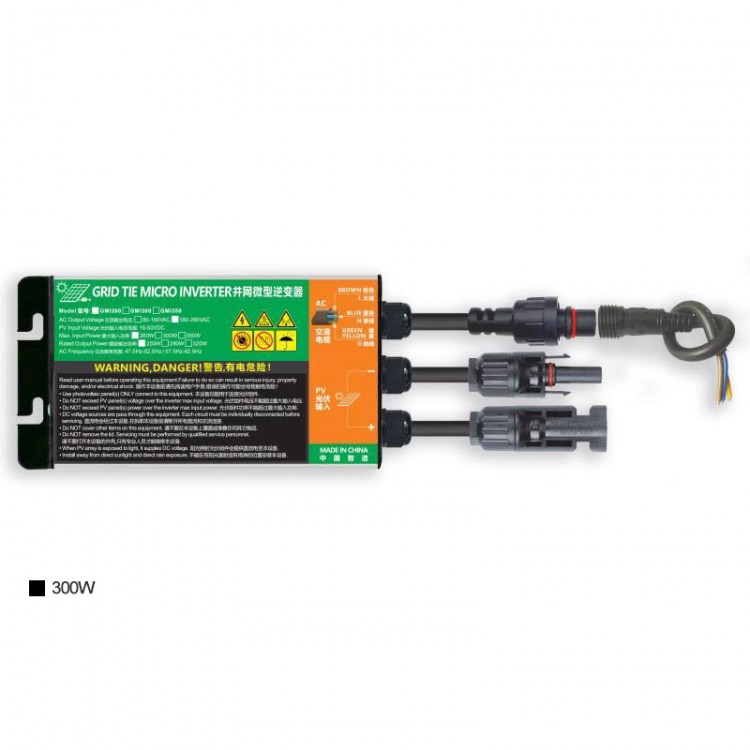

300W Solar Micro Inverter MPPT Grid Tie Inverter Pure Sine Wave Inverter DC 18V-50V to AC 120V/230V

300W Solar Micro Inverter MPPT Grid Tie Inverter Pure Sine Wave Inverter DC 18V-50V to AC 120V/230V

Specification:
Model: GMI 300
Input Data(DC,PV)
Number of Input MC4 Connector: 1 set
MPPT Voltage Range: 24V-40V
Operation Voltage Range: 18V-50V
Maximum Input Voltage: 50V
Startup Voltage: 18V
Maximum Input Power: 300W
Maximum Input Current: 12A

Output Data(AC)
Single-Phase Grid Type: 120V / 230V
Rated Output Power: 280W
Maximum Output Power: 300W
Rated Output Current: 120V: 2.33A/230V: 1.21A
Rated Output Voltage: 120V AC / 230V AC
Default Output Voltage Range: @120 V AC: 80V-160V / @230V AC: 180V-280V
Rated Output Frequency: 50Hz / 60Hz
Default Output Frequency Range: @50Hz: 47.5Hz-52.5Hz / @60Hz: 57.5Hz-62.5Hz
Power Factor: >0.99
Total Harmonic Distortion: THD <5%

Efficiency
Peak Efficiency: 92.5%
CEC Weighted Efficiency: @120V AC: 90.5% / @230V AC: 91.5%
Nominal MPPT Efficiency: 99.9%
Night Power Consumption: <700mW

Mechanical Data
Operating Ambient Temperature Range: -40℃ to +65℃
Storage Temperature Range: -40℃ to +85℃
Dimensions (W x H x D): 35x 76 x 233mm
Weight: 0.5kg
Waterproof Grade: IP55
Cooling Mode: natural convection-no fans

Other Features
Transformer Design: high frequency transformers, galvanically isolated
Integrated Ground: equipment ground is provided by the PE in the AC cable. No additional ground is required
Protection Functions: isolated island, voltage, frequency, temperature, current etc.

Installation Procedures:
Step 1- Attaching the micro inverters to the racking.
a.Mark the location of the micro inverter on the rack, with respect to the PV module junction box or any other obstructions.
b. Mount one micro inverter at each of these locations using hardware recommended by your module racking vendor.
Step 2- Connect the micro inverter AC cable and connect to AC bus cable (L-brown,N-blue,G- green&yellow) one by one, please do not exceed the maximum current of AC bus cable.
Step 3- Connect micro inverter to the PV module, please do not exceed PV panel(s) VOC over
inverter max. input voltage.
Step 4- Install the AC branch circuit junction box, wire the conductors of the AC bus cable. Connect the AC branch circuit junction box to the point of utility-grid Interconnection.
Step 5- Double check all micro inverter, connectors and cables are correctly and well connected.
Step 6- Turn on the AC circuit breaker on each AC branch circuit of micro inverter.
Step 7- Turn on the main AC circuit breaker of utility-grid. Your system will start producing power
after a 30 sec safety delay period.

LED Display:
1. Green light steady: micro inverter in generating.
2. Red flash: micro inverter in waiting.
3. Red light steady:
a. Island protection;
b. Over-temperature protection;
c. Over/low AC voltage protection;
d. Over/low DC voltage protection;
e. Over/low AC frequency protection;
f. Fault.

Package List:
-1 x Micro Inverter
-1 x User Manual
-1 x AC Cable

Note: The product has 120V and 230V voltage optional.
