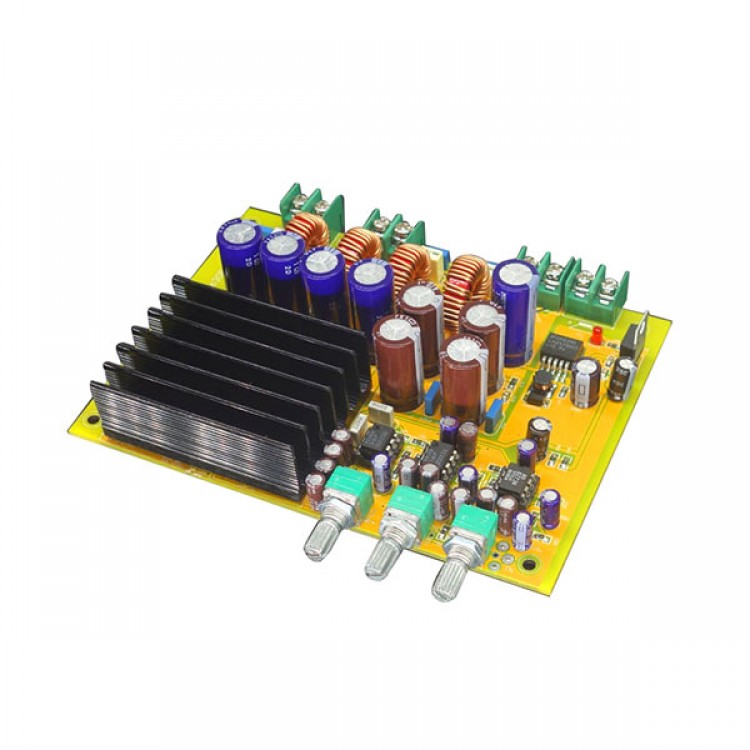

300WX1 150WX2 TAS5630 2.1 Sound Channel D Type Digital Amplifier Assembled Board Subwoofer
Parameters:
DC=50V,R=4Ω,THD+N=10%, P=300W
DC=50V,R=6Ω,THD+N=10%, P=210W
DC=50V,R=8Ω,THD+N=10%, P=160W
DC=50V,R=4Ω,THD+N=1%, P=240W
DC=50V,R=6Ω,THD+N=1%, P=160W
DC=50V,R=8Ω,THD+N=1%, P=125W
Description:
- Total filter sound distortion (THD+N): <1%
- SNR: >100dB
- Input resistance: 20KΩ
- Output offset voltage: ﹤150mV
- Voltage gaining: adjustable
- SR: 50V/us
- Frequency sound range: 20Hz--20kHz
- Power supply range: DC20--DC50V
- Adopting AD827 operational ampllifier as left and right channel preampliifier
