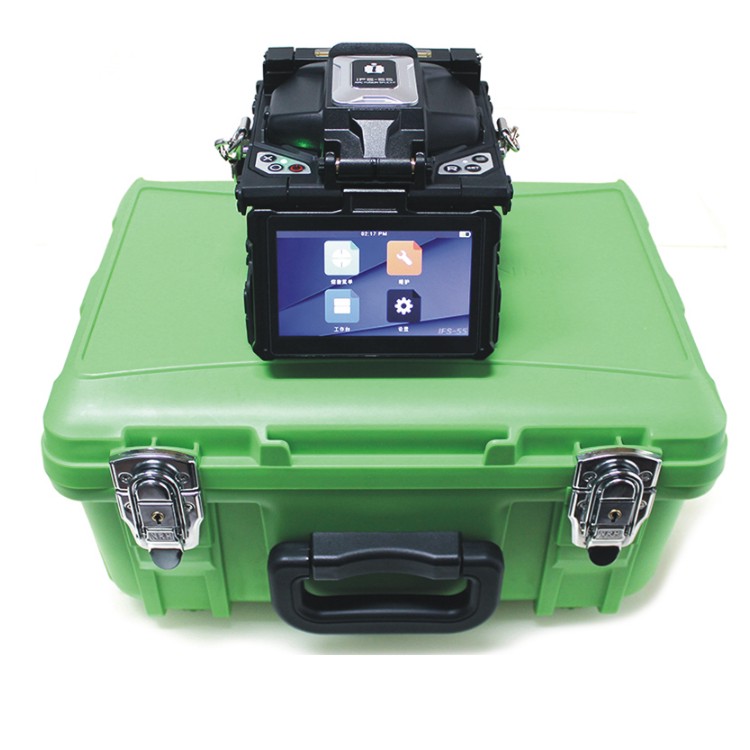

300X Fiber Fusion Splicer Machine FTTH Fusion Splicer 4.3" Touch Screen for Single-Core INNO IFS-55

300X Fiber Fusion Splicer Machine FTTH Fusion Splicer 4.3" Touch Screen for Single-Core INNO IFS-55

Features:
- Fast Speed: it takes only 7s to splice and 14s to heat
- 3D core alignment technology features super lower loss rate
- Without reflector glass, it cuts down core alignment time, improving working efficiency
- LEDs with white light on three sides for easy operation at night
- 4.3-Inch high resolution capacitive colorful touch screen with higher sensitivity
- Special fixtures designed for FTTH projects; Fixed design so there is no need to remove it
- Waterproof, dust-proof, shock-proof performance enable uses in severe environment
- Compact size and light weight to carry

Technical Parameters:
- Model: IFS-55
- Net Weight: 1.57kg
- Applicable Fibers: SM (ITU-TG.652&G.657) / MM (ITU-TG.651) / DS (ITU-TG.653) / NZDS (ITU-TG.655)
- Fiber Alignment: Core Alignment
- Applicable Core Number: Single Core
- Diameters of Applicable Fibers: 0.25mm, 0.9mm, 2.0mm, 2.4mm, 3.0mm, Indoor Cables
- Fiber Placement & Cutting Length: Diameter 250μm to 1000μm with coating (10 to 16mm cutting length)
- Splicing Modes: Preset Multiple Splicing Modes (MM62μm, SM_SM, NZ_NZ, G657A, G657B, Quick)
- Typical Slicing Loss: SM: 0.03dB / MM: 0.01dB / DS: 0.05dB / NZDS: 0.05dB / G.657: 0.02dB (measured by the cut-off method of ITU-IT standard)
- Return Loss: > 60dB
- Time to Power on: 9s
- Splicing Time: SM QUICK Mode 7s
- Estimated Splicing Loss: Available
- Heating Mode/Heating Time: Built-in multiple heating modes including heating 40mm, 60mm and the like; Typical heating time of hot shrinkable tubes lasts for 25s
- Results Storage: The latest 2000 records
- Tension Test: 1.96 to 2.25N
- Operating Environment:
  Operating Altitude: 0 to 5000m above sea level;
  Relative Humidity: 0 to 95%;
  Temperature: -20 to 50℃
  Max. Wind Speed: 15m/s.
- Storage Environment: 0 to 95% relative humidity, -10 to 50℃
- Dimensions: 133 x 123 x 134mm (L*W*H)
- Observation & Display Way: Dual cameras in 90°& 4.3 Inch colorful LCD touch screen
- Fiber Magnification & Display: Display Single Fiber X/Y (300X), or Display X & Y at the same time (130X)
- Power Supply: AC 100 to 240V; DC 12.6V, 1.8A
- Splicing & Heating Times: Typical times up to 140 for splicing and heating@3800mAh electricity
- Lifespan of Electrode Rod: Discharge up to 5500 times
- FH-40 Fixtures: Compatible with 0.25mm, 0.9mm, 2.0mm, 3.0mm, Indoor cables and the like

Package Included:
- 1 x IFS-55 Fusion Splicer Main Unit
- 1 x V7 High Precision Fiber Cutter
- 1 x JS-180300 Power Adapter
- 1 x ACC-25 Power Cord for Power Adapter
- 1 x Pair of E-27 Electrode Rods
- 1 x NCK-K6M Carry Case
- 1 x CG-22 Cooling Rack
- 1 x MB-55XX CD
- 1 x Pair of FH-40 Fiber Fixtures
- 1 x FH-SOC Splicer Clamp
- 1 x HTN-SOC Hot Shrinkage Clamp
- 1 x CFS-2 Fiber Pliers
