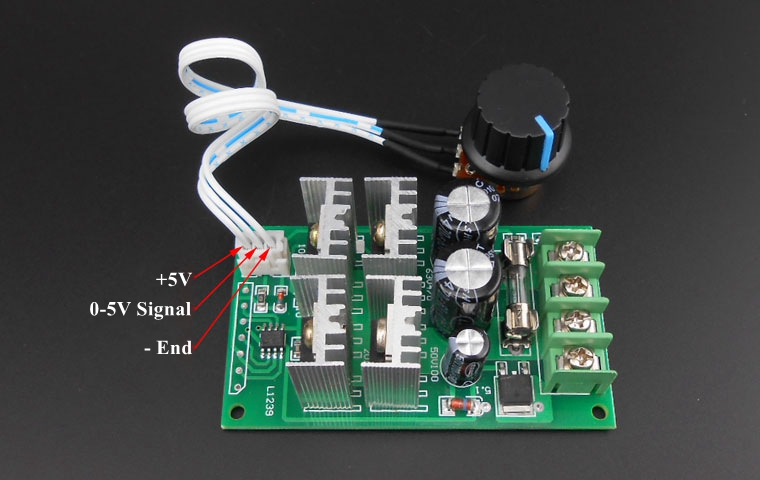

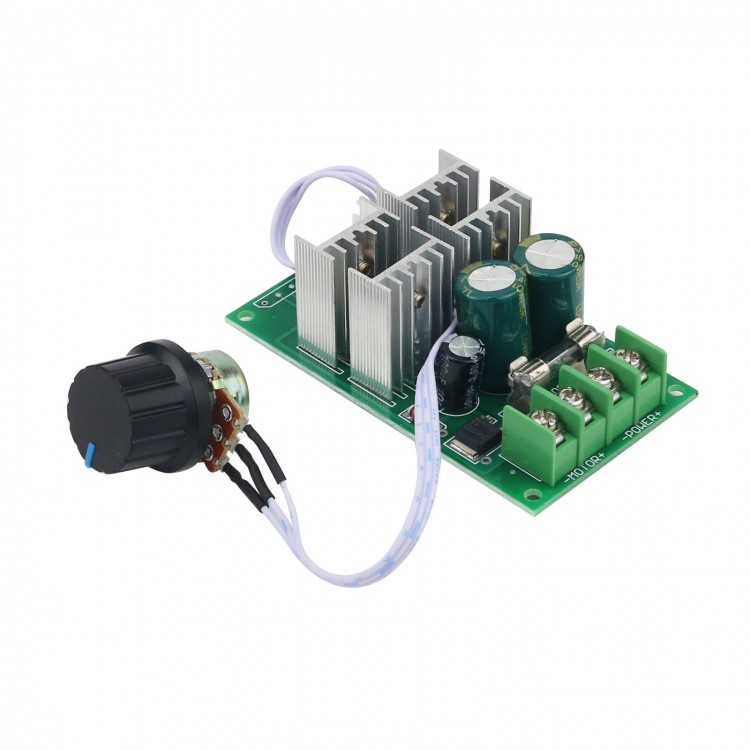

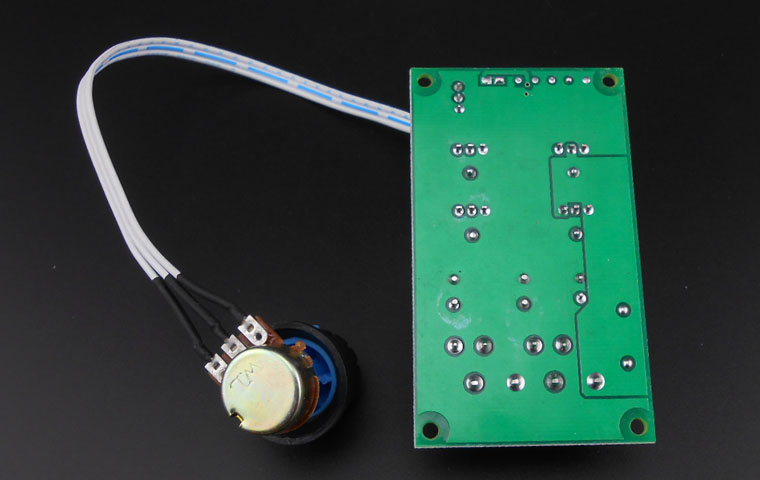

30A26S PWM DC Motor Speed Controller 6V 12V 24V 36V 48V 60V Supports PLC Analog 0-5V MCU Control
Specifications:
- Model: 30A26S
- Input voltage: DC6-60V
- Output voltage: linear under load
- Input current: larger than the working current of motor
- Output current: determined by your load
- Continuous current: within 20A
- Power conversion: 1800W (power = voltage*current)
- Quiescent current: 0.01ma
- Speed regulation type: current regulation
- Speed regulation method: linear potentiometer 270 degrees
- Speed adjustment range: 0-100%
- Working frequency: 15KHZ
- Wiring type: Barrier terminal block

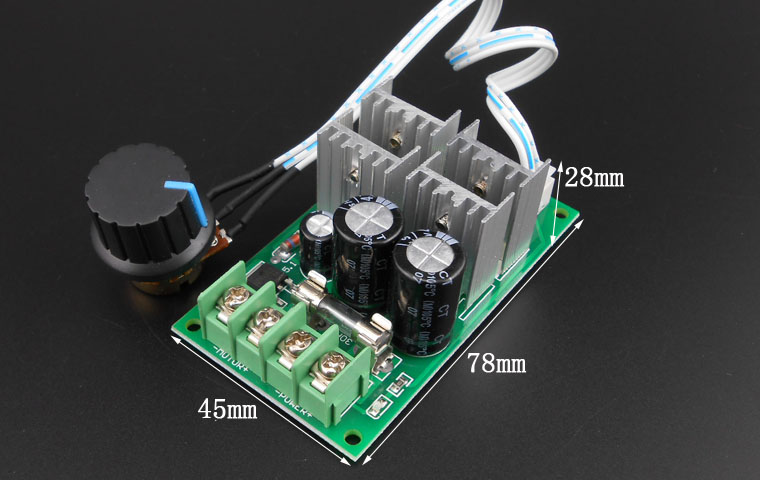

- Size: 78mm*45mm*28mm
- Product net weight: 66g
Attention:
- Pay attention to the - and + ends of input power supply.
- The input voltage must be equal to the rated voltage of motor and cannot be connected to 220V.
Package Included:
- 1 x DC Motor Controller
