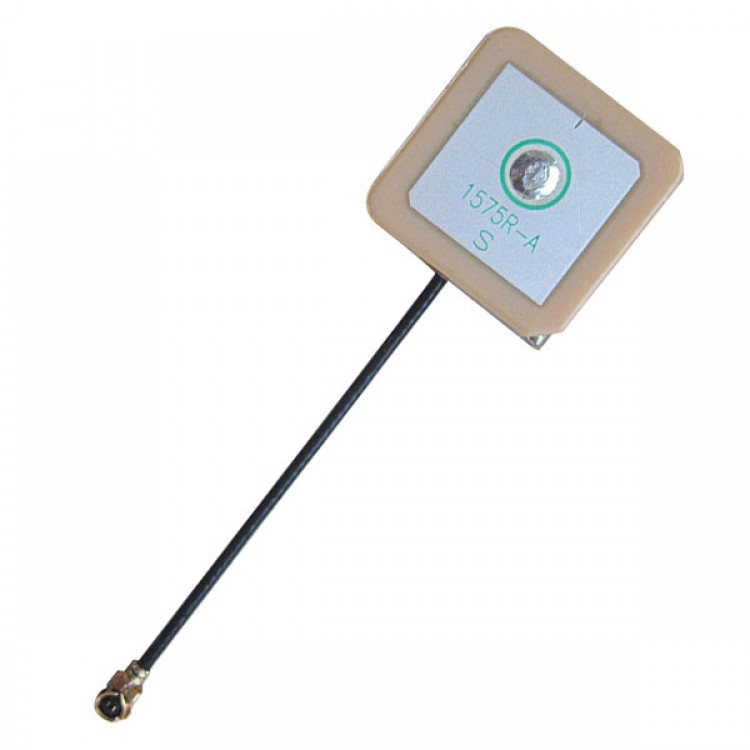

30db High Gain Two Stage Amplifying GPS Active Built in Ceremic Antenna 18*18*6mm
Specification:
|
dielectric antenna |
||
|
center frequency |
1575.42±3 MHz |
|
|
voltage standing-wave ratio |
2:1 |
|
|
bandwidth |
±5 MHz |
|
|
Impedence |
50Ω |
|
|
Max gaining |
24dBic Based on 7×7cm |
|
|
Gaining range |
＞20dBic at -90°＜0＜+90° |
|
|
Antenna polarization |
RHCP |
|
|
amplifying device |
||
|
amplifier gain |
28dB |
|
|
noise factor |
1.5dB |
|
|
filter with attenuation |
7dB Min f0+/-20MHz; 20dB Min f0+/-50MHz; 30dB Min f0+/-100MHz |
|
|
OUTPUT VSWR |
＜2.0 |
|
|
DC |
3V---5V |
|
|
Consumption |
10mA |
|
|
Structure |
||
|
Weight |
5g |
|
|
Dimension |
18*18*6mm |
|
|
Cable |
5/10/20cm |
|
|
Connection model |
IPEX |
|
|
color |
black |
|
|
Environment |
||
|
Working temp |
-40℃~+85℃ |
|
|
Waterproof testing |
pass |
|
|
humidity |
95%~100%RH |
|
