30FPS 704x576 FPV Mini DVR Board Video Recorder MPEG-4 Motion Detection Storage Module

30FPS 704x576 FPV Mini DVR Board Video Recorder MPEG-4 Motion Detection Storage Module

Description:
SD card video recorder DVR is a high-performance, high-definition digital video recorder; It adapts MPEG-4 video compression, and single channel resolution up to D1(704*576), 30fps, is a fully real-time, high-definition, low power consumption, easy-operated, super-smart professional DVR.

It supports power-up record, motion detect record, scheduled record, and manual record, manually make the snapshot;SD card up to 32GB expandable, and directly playback by TV sets, monitor, USB connected to the computer to read data(USB connect to PC,then power to dvr);and PC by SD card reader.

Feature:
1. MPEG-4 video compression
2. D1(704*576) resolution
3. MPEG-4/ASF video format, MP3 audio format
4. Real-time stamp on videos, overwrite
5. Manual/motion detect/scheduled/power-up record
6. Audio input, audio compression 8KHZ/ADPCM
7. 5/15/30fps (optional)
8. SDHC memory support, up to 32GB
9. TV-out enables better resolution by TV set
10. MPEG-4/ASF playback

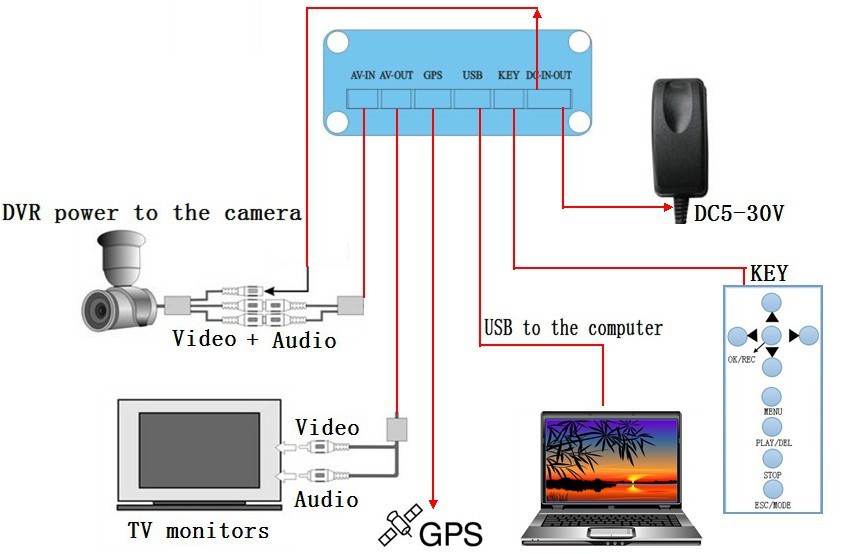

11. AV-IN, AV-OUT directly connect with camera, TV, monitor
12. Support IR remote operation, built-in ADC for external keyboards
13. Support for external trigger: manual recording or photograph
14. Time display optional
15. Built-in GPS/RS232 series port(Show only the latitude and longitude),enables external remote, keyboard for operation and software set-up
16. DC5-30V for wide power supply use(5-30V voltage can be output to the camera (less than 200mA))
17. Manually make the snapshot
18. Low power-consumption, 1W when standby, 2W when recording
19.USB connected to the computer to read data
20. Remote support the switch machine
21. Boot, automatically repair before power missing video (plus 3.7V battery, before power, immediately save the video)


Package including:

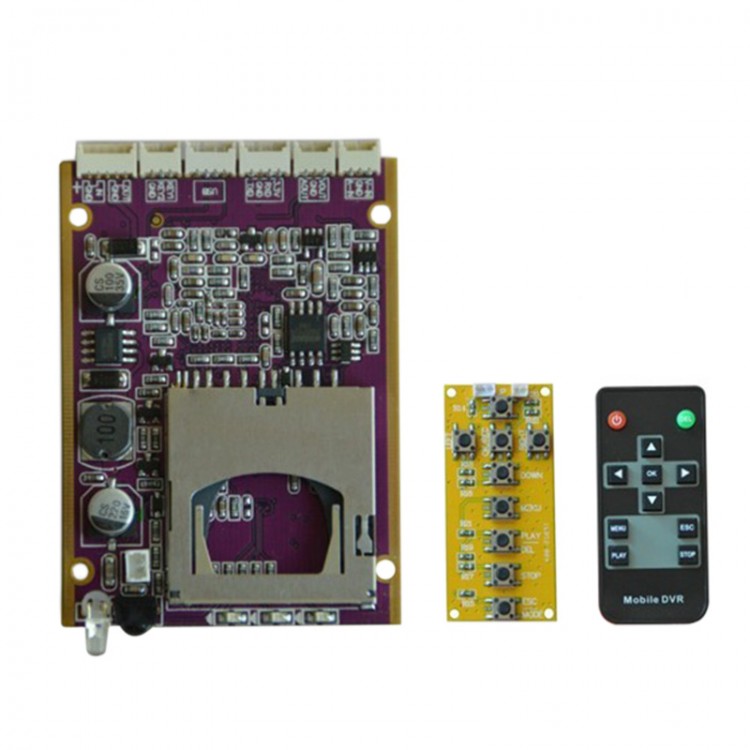

- 1*DVR Module
- 1*Remote control
- 1*1 set of cables
- 1*Color Box
- 1*Manual
