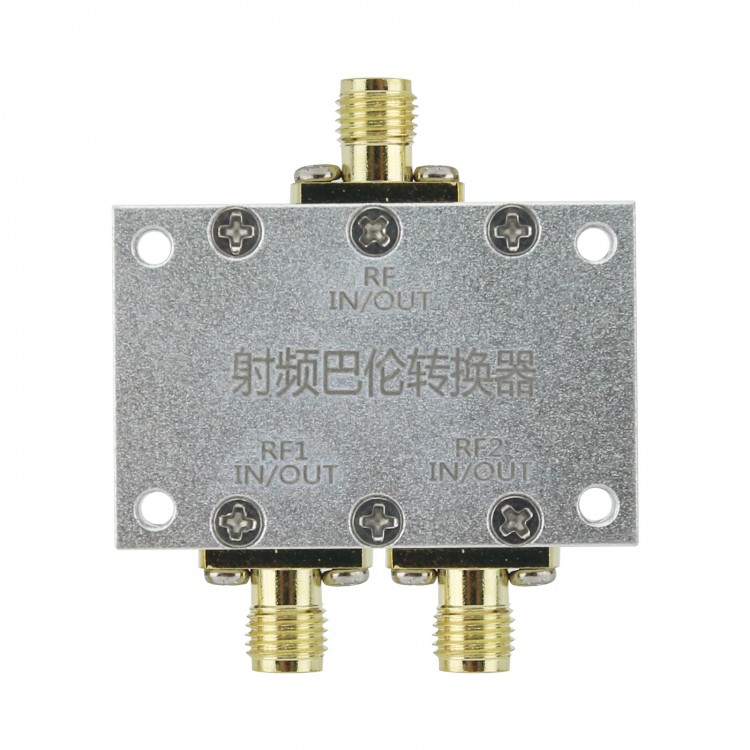

30K-125MHz Low Frequency Balun RF 1:1 Balun Single-ended to Differential Conversion 180-degree Phase Power Divider

Module Function:
- Single-ended signal to differential signal
- Differential signal to single-ended signal

Specification:
- Module model: QM-11ADT-0312
- Module insertion loss: 0.8dB typical value
- Maximum input power of the module: 27dBm (0.5W)
- Module input impedance: 50Ω
- Balun type: 1:1
- Module input/output connector: SMA female connector
- Module size: 38 x 25 x 14mm (excluding connector length)
- Module operating temperature: -25 ℃ ~ +85 ℃
- Storage temperature: -55 ℃ ~ +100 ℃

Package Included:
- 1 x Balun

Actual Measurement:

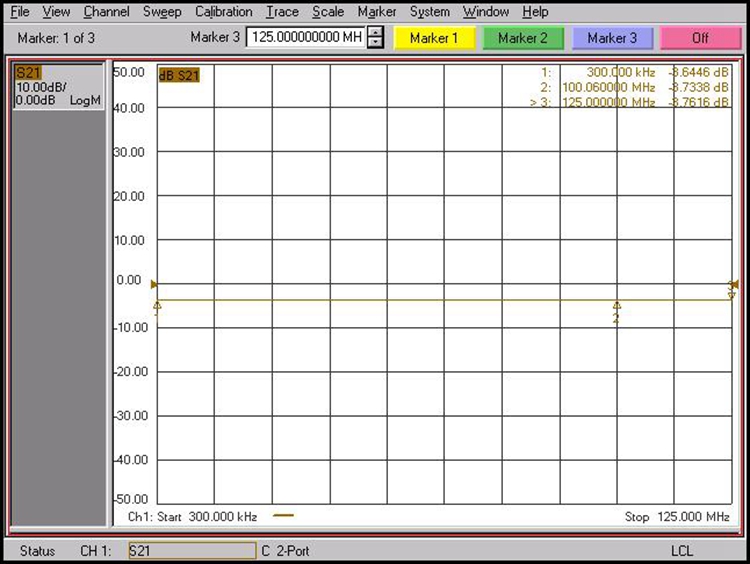

- Insertion loss test (open circuit port requires additional load):

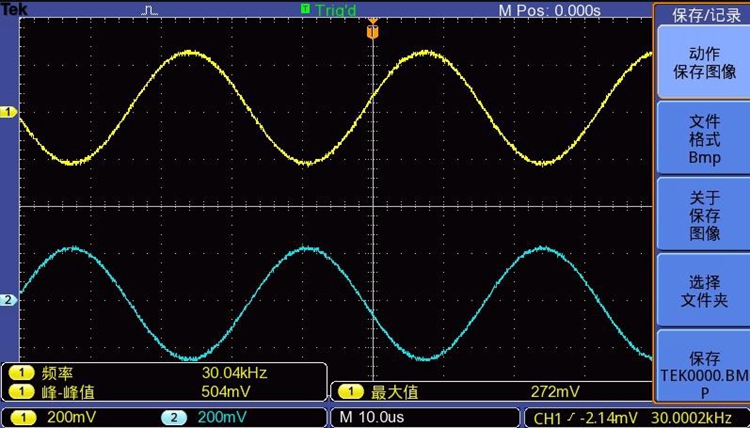

- Input 30K sine wave, phase test:

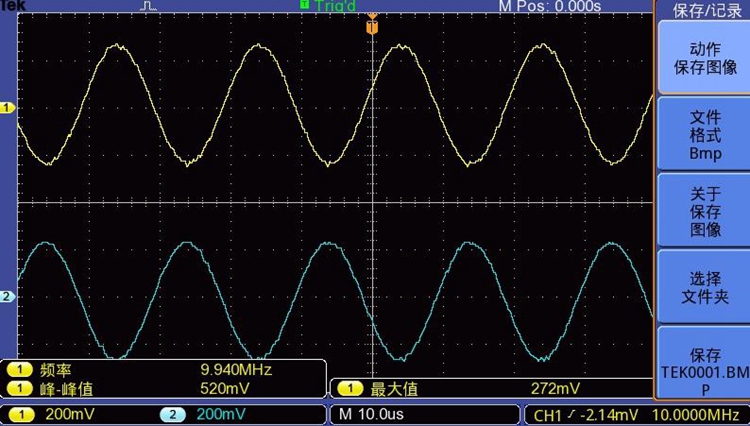

- Input 10MHz sine wave, phase test:

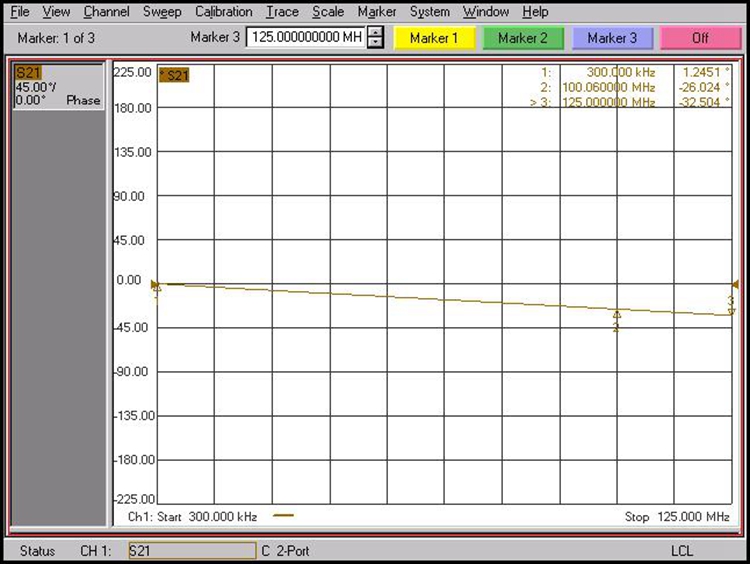

- Full band phase testing:
  Branch Port 1:



  Branch Port 2:

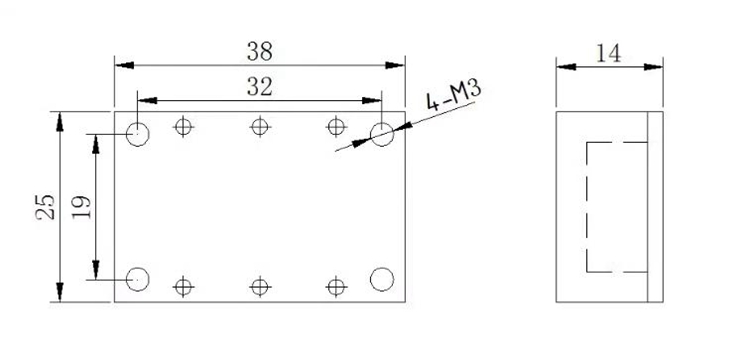

  Module Installation Hole:
