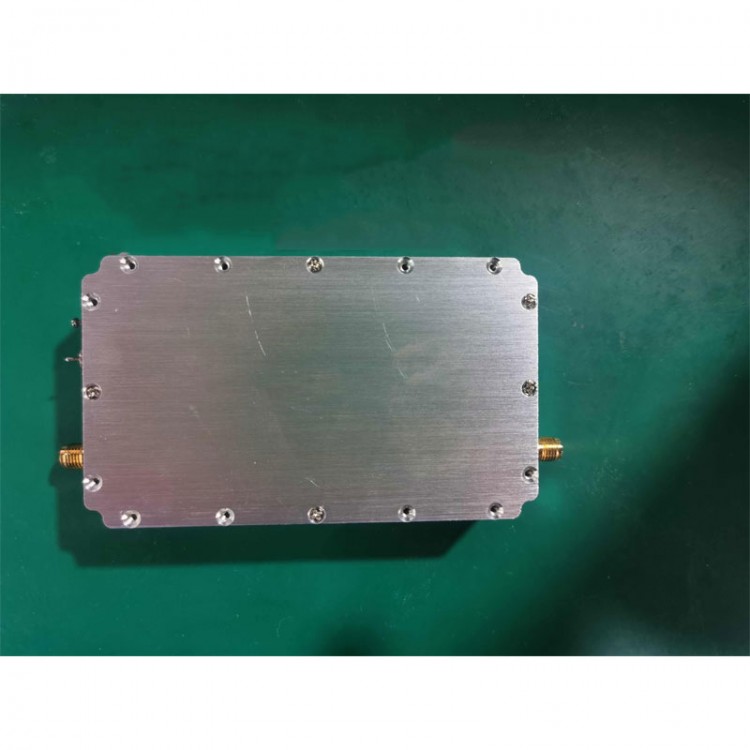

30M-3000M 10W Broadband RF Amplifier RF Power Amp Module with Gain over 40dB for EMC Testing Drones

* We can perform functional verification of microwave RF systems according to customer requirements, including but not limited to broadband transceiver systems, TR components, broadband ultra-low phase noise frequency sources, high-speed frequency hopping systems, wideband agile frequency systems based on AD9361/AD9371, and broadband high-power amplifiers.

* The circuit module is designed as a standard interconnection module, primarily to achieve various functional verification of microwave systems and accelerate development progress. It can be interconnected directly on the customer's baseboard via broadband capacitors, or connected via glass beads or dual SMA connectors for testing. It can be used directly as a customer system module or to improve a PCB module. We can provide dimension and structural drawings, supply cavity structural components, and customize functional modules according to customer requirements. For more details, please contact our customer service. Thank you!

The RF power amplifier is powered by 28V (32V), with a static current of 130mA and a working current range of 0.6A to 1.2A. The module is compact in size, with a wide operating frequency range covering U/V/L/S bands. The full-band flatness is good. In the full frequency band of 30M-3000M, the output power is greater than 10W. When the working voltage is 32V, the output power can reach 12W. This module can be used as an output amplifier for signal sources, EMC testing, and output power interference amplifier for drones. It can also be used as a driver stage for ultra-wideband high-power amplifiers. We provide the size diagram of the module. The module can be used directly as a system module or as a verification platform.

* Input Power: 0 ±2dBm

* Output Power: ≥10W at 30M~3000M

* Power Supply: 28V/32V

* Current: <1.3A

* Operating Frequency: 30M-3000MHz

* Saturation Power: ≥10W (28V); >12W (32V)

* Gain: ＞40dB

* Dimensions: 100 x 59 x 19mm

* 1 x RF Power Amplifier

* Weight: 0.8kg

The module test data is as follows. The output is connected to a 40dB attenuator, and a 28V power supply and a spectrum analyzer are used for testing.

''=
