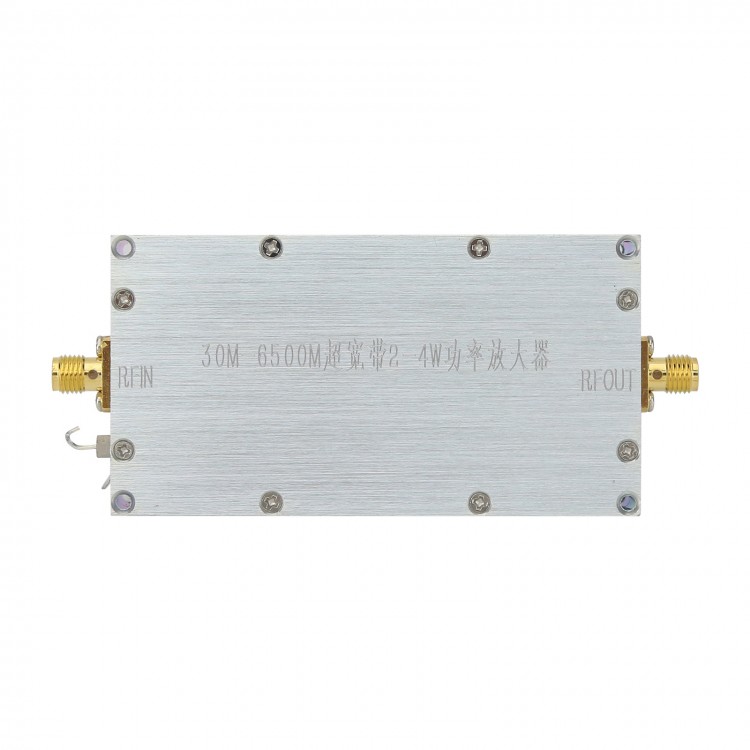

30M-6500M 2-4W Broadband RF Power Amplifier RF Power Amp Module 12V 0±3dBm Input Power & Gain ≥33dB
Read before Purchasing:
* We can perform functional verification of microwave RF systems according to customer requirements, including but not limited to broadband transceiver systems, TR components, broadband ultra-low phase noise frequency sources, high-speed frequency hopping systems, wideband agile frequency systems based on AD9361/AD9371, and broadband high-power amplifiers.
* This circuit module is designed as a standard interconnection module, primarily to achieve various functional verification of microwave systems and accelerate development progress. It can be interconnected directly on the customer's baseboard via broadband capacitors, or connected via glass beads or dual SMA connectors for testing. It can be used directly as a customer system module or to improve a PCB module. We can provide dimension and structural drawings, supply cavity structural components, and customize functional modules according to customer requirements. For more details, please contact our customer service. Thank you!
Specifications:
* Operating frequency: 30M-6500M
* Input power: 0±3dBm
* Output power: 2W-4W
* Gain: ≥33dB
* Power supply: 12V/1.2A
* Size: 82*43*20mm
* Flatness: Good
* Saturation power: >3W at 30M-6000MHz; >2W at 6000M-6500MHz
More Information:
* The amplifier is powered by 12V, with a quiescent current of 330mA and an operating current of 1.0A~1.3A. It is small in size and has a wide operating frequency band, covering the U/V/L/S/C bands. The flatness of the entire frequency band is good. From low frequency 30M to high frequency 6500M.
* In the full frequency band of 30M-6500M, the output power is 2-4W. The module can be used as an output amplifier for signal sources, EMC testing, and output power interference amplifier for drones.
* It can also be used as a driver stage for ultra-wideband high-power amplifiers. We provide the size diagram of the module. It can be used directly as a system module or as a verification platform.
Package Included:
* 1 x RF Power Amplifier
Packaging Details:
* Weight: 1.1kg
