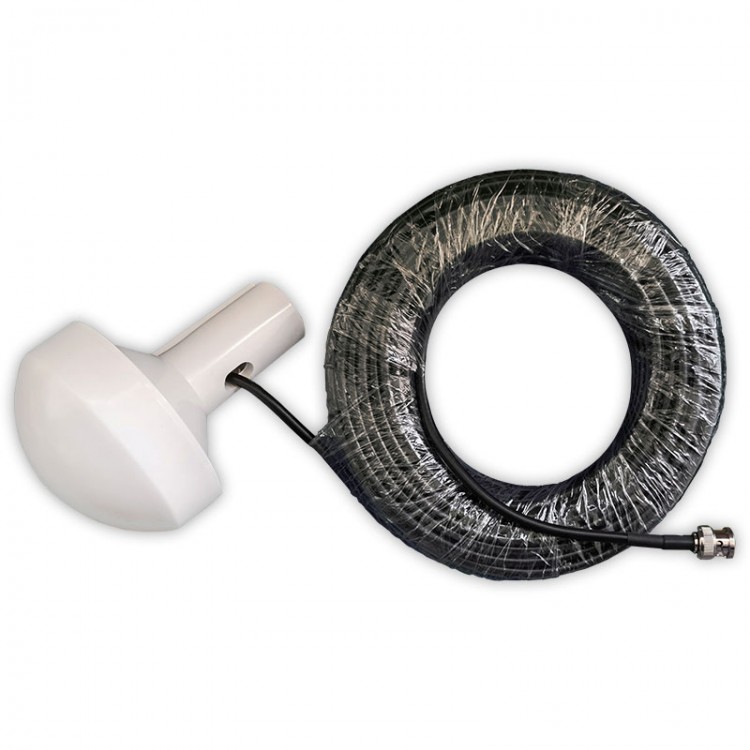

30M/98.4FT Mushroom Antenna Beidou GPS Timing Antenna (BNC Connector)
Features:
- Can be installed on roofs, side walls, and shed tops
- GPS/Beidou timing antenna
- Industrial product with high accuracy and reliability
Specifications:
- Frequency range: 1575±5MHz (GPS); 1561±4MHz (Beidou II); 1609±8MHz (GLONASS)
- Polarization mode: right-handed circular polarization
- Antenna gain: ≥3.5dB
- Amplifier gain: single GPS; Dual-band ≥ 37dB; Tri-band ≥ 30dB
- Noise figure: ≤1.5dB
- Reflection loss: 14dB (i.e. VSWR≤1.5)
- Interference rejection: ≥25dB (f 0±100MHz)
- p-1: ≥10dBm
- Dimensions: diameter 96 x 126mm/3.8 x 5"
- Optional connector: SMA; BNC
- Installation: threaded (M24x1.5) connection
- Operating temperature: -45°C to 85°C
- Storage temperature: -50°C to 90°C
- Humidity: 100%
Package Included:
- 1 x Antenna
