30MHz 2-Channel Function Arbitrary Waveform Generator Pulse Signal Frequency Counter FY6900-30M

30MHz 2-Channel Function Arbitrary Waveform Generator Pulse Signal Frequency Counter FY6900-30M

Description:

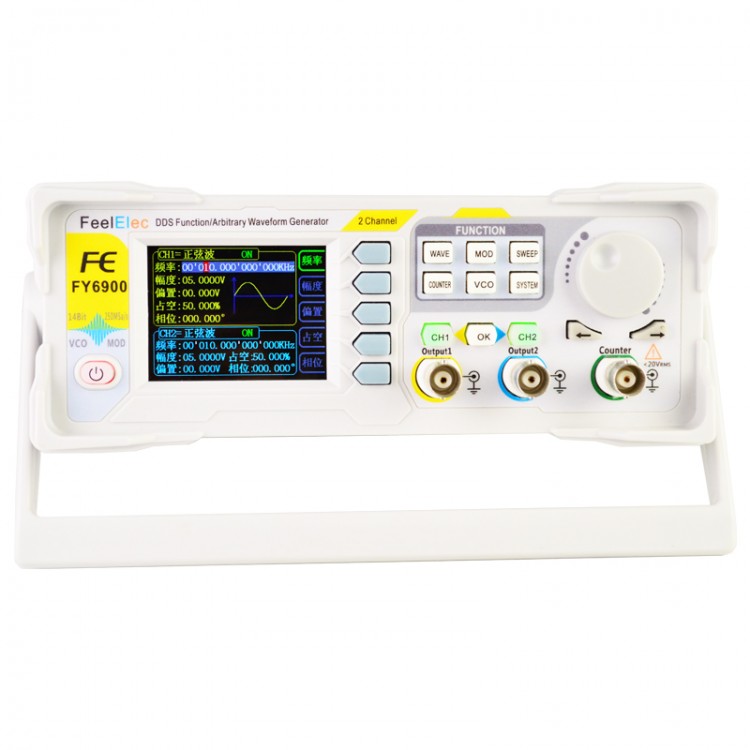

FY6900 series dual-channel function / arbitrary waveform generator is a high-performance and cost-effective signal generator. It can be used as a function signal generator, arbitrary waveform generator, pulse signal generator, VCO, frequency sweeper, counter and frequency meter. Rich shortcut keys simplify complicated operations. It is especially suitable for electronic enthusiasts, scientific research institutions and high-tech enterprises, automotive repair and other fields.

Using DDS technology, the instrument produces accurate, stable, low distortion output signals, and all parameters are calibrated by internal procedures. All functions of the instrument can be controlled by the host software. You can use the host software to edit the arbitrary waveform and save it to the signal generator to output the waveform. Communications protocol is open to makes secondary development easier. It features large-scale integrated circuits, SMT, high reliability and long service life. With output short-circuit protection, all signal output terminals can work under load short circuit conditions for 60s.

FY6900 Series Features:
◆ DDS technology produces accurate, stable and low distortion output signals.
◆ Desktop design with ABS plastic casing, AC 100 ~ 240V (AC) wide voltage power supply.
◆ 2.4-inch (320 * 240) color display screen simultaneously displays dual-channel waveform parameters.
◆ The highest output frequency is 60MHz (sine wave), 250MSa / s sampling rate, 14bits vertical resolution.
◆ Press and hold OK key during use to quickly save the parameter information currently output by the instrument, and the saved parameters can be automatically loaded when it turns on again.
◆ Completely independent dual-channel output (equivalent to two independent signal sources), capable of working synchronously, with precise adjustable phase difference.
◆ Channel Tracking Function: When it is tracking, all parameters of both channels can be updated at the same time according to the user's configuration.
◆ Two or more machines can achieve multi-machine synchronization through the SYNC port.
◆ Output up to 98 groups of functions / arbitrary waveforms, including 34 preset waveforms and 64 user-defined waveforms (arbitrary waveform editing software supporting the instrument can be used to edit arbitrary waveforms and download to the instrument output) The preset waveforms include: sine wave, square wave, rectangular wave (adjustable duty cycle), trapezoidal wave (both rising and falling edge time can be set accurately), triangle wave, and pulse wave (pulse width and frequency can be set precisely Fixed), rising sawtooth wave, descending sawtooth wave, step wave, trapezoidal pulse wave, sinker pulse, narrow pulse wave, noise wave, exponential rise, exponential decline, electrocardiogram, Lorentz pulse wave, multi-tone wave, CMOS (0 ~ 12V), four-channel TTL level and DC voltage, etc.
◆ 64 sets of arbitrary wave storage bits. The storage depth of each group is 8192 * 14bits (the longer the waveform storage depth, the more waveform details are saved, and the signal details can be restored with high accuracy).
◆ High Frequency Accuracy: The frequency accuracy can reach the order of 10-6.
◆ High Frequency Resolution: Full range frequency resolution 1uHz (0.000001Hz).
◆ Output amplitude can be up to 24Vpp and amplitude resolution can be up to 1mV (0.001V).
◆ With DC bias function of -12V ~ + 12V (<20MHz), the resolution can reach 1mV.
◆ The duty cycle of both channels can be adjusted independently, and the adjustment accuracy can reach 0.01%.
◆ The pulse width and pulse frequency are continuously adjustable, and the adjustment range is 20ns-1S. The pulse amplitude can be continuously adjusted between 0-12V, and the adjustment accuracy is 0.001V.
◆ The phase adjustment range of two channels is 0 ~ 359.99 °, and the adjustment accuracy is 0.01 °.
◆ No Range Limitation: Direct digital settings are available for full range frequency.
◆ Digital signal output function can realize any CMOS level with amplitude of 0 ~ 12V.
◆ Scanning Function: Four attributes of the signal: frequency, amplitude, offset, and duty cycle can be scanned separately. It has two scanning modes, linear scanning and logarithmic scanning.
◆ Pulse Train Bursted Output Function: Optional three trigger modes: Manual trigger, internal CH2 trigger and external trigger, which can make the machine output any pulse train of 1 ~ 1048575.
◆ VCO Function: Support VCO voltage control signal parameter output function (such as voltage controlled oscillator).
◆ Rich Modulation Types: AM, FM, PM, ASK, FSK and PSK modulation.
◆ Storage Characteristics: It can store 20 sets of instrument state parameters set by users, which can be recalled at any time.
◆ 100M Frequency Meter Function: Four measurement methods: frequency measurement, period measurement, positive and negative pulse width measurement, and duty cycle measurement. The maximum measurement frequency can reach 100MHz, and the minimum measurement frequency is 0.01Hz.
◆ Counter function.
◆ All parameters can be calibrated by internal procedures.
◆ Equipped with powerful arbitrary waveform editing function, it can be downloaded to the instrument to output the waveform after editing the arbitrary waveform on your PC.
◆ Powerful Communications Function: PC can be used to control the instrument. The communications protocol is open, making secondary development easier.
◆ High Reliability: Large-scale integrated circuit, SMT, high reliability and long service life.
◆ Output Short-circuit Protection: all signal output terminals can work for more than 60s under load short-circuit conditions.
◆ Optional FYV2000 series or FPA1000 series power amplifiers can be used to make the signal stable output of more than 20W in the DC-10MHz bandwidth. The FPA101A output power can reach up to 100W.

Package Included:
- 1 x Signal Generator
- 1 x Power Cord
- 2 x Q9 Clip Cables
- 1 x BNC-BNC Cable
- 1 x USB Cable
