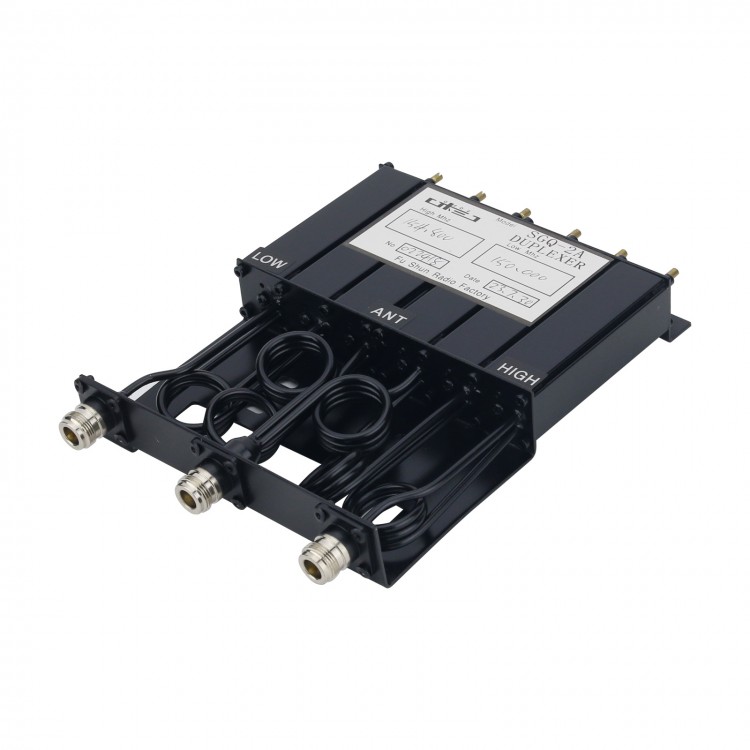

30W VHF 136-180Mhz 6 Cavity Duplexer VHF Repeater Duplexer for Radio Communication Radio Repeater
Advantages:
- Small insertion loss, low standing wave ratio, high isolation, and stable performance
- The workmanship of the product is fine, and its insertion loss and sensitivity are comparable to those of CETC Seventh Research Institute
Specifications:
- Frequency range: 136-180Mhz
- Difference frequency of VHF: 3.8-7MHz
- Relative bandwidth: general 1%~10% and 0.5%~30% for special requirements
- Insertion loss: typically less than 1.5dB (depending on frequency, bandwidth, volume, and number of sections)
- Channel isolation: Determined by the number of filter sections and channel spacing
- Input/output impedance: 50Ω
- Input/output standing wave: VSWR ≤1.6:1 (≤1.4:1 on special request)
- Passing power: 30W
- Shock: 10g/0.02lb
- Vibration: 10g/0.02lb
- Temperature: -55 to +85°C
Package Included:
- 1 x VHF Duplexer
Note:
Please leave a note of what frequency you want ( High / Low). Minimum Tx and Rx difference frequency: VHF 3.8Mhz-7Mhz and standard termination (N, BNC) on Paypal payment, we will turn OK before ship out. Support Frequency: VHF 136-180Mhz; the frequency space must >3.8Mhz, for example: 150Mhz-154.8Mhz, N Connector.
