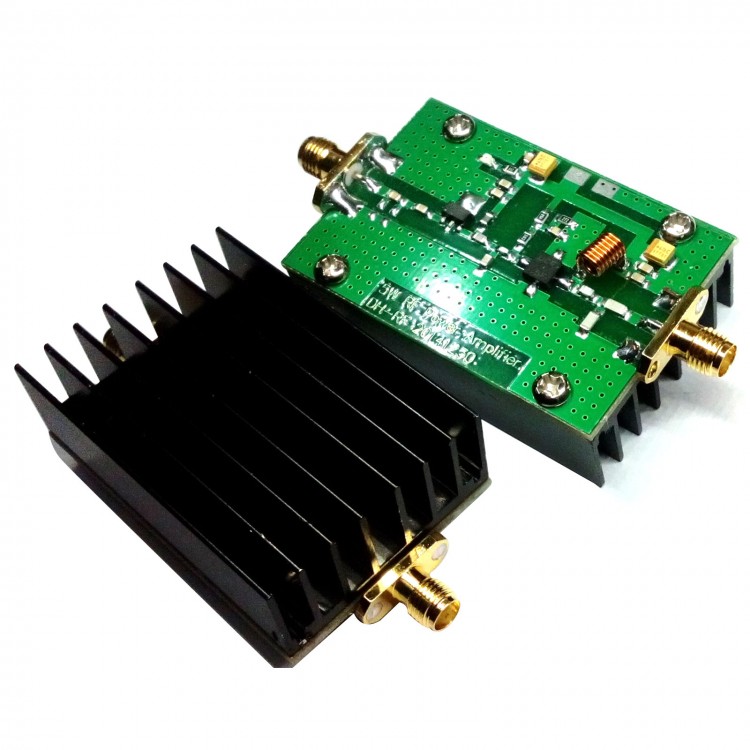

Product Description: It is widely used in a variety of 315MHZ remote control transmitting power to expand, increasing the transmission distance of the remote control,especially for 2262 based on a variety of chip OOK modulation mode remote control,greatly increase the transmission range of the remote control.
Indicators:
- Operating frequency: 305MHz-325MHz,315MHz contains a variety of remote control
- Input power: 20 mW,which is 13DBM,maximum input 50 mW
- Output Power: 5W
- Operating voltage: 9V,can work less than 9V,the output power will slightly decrease
- Current: 1.2A maximum emission current, quiescent current of 0.2A
- Size: 38x56 mm,does not include the joint
- Inputs and outputs are SMA female,universal radio interface Threaded holes with fins,stable good job.
Package List:
- 1 x Power Amplifier
