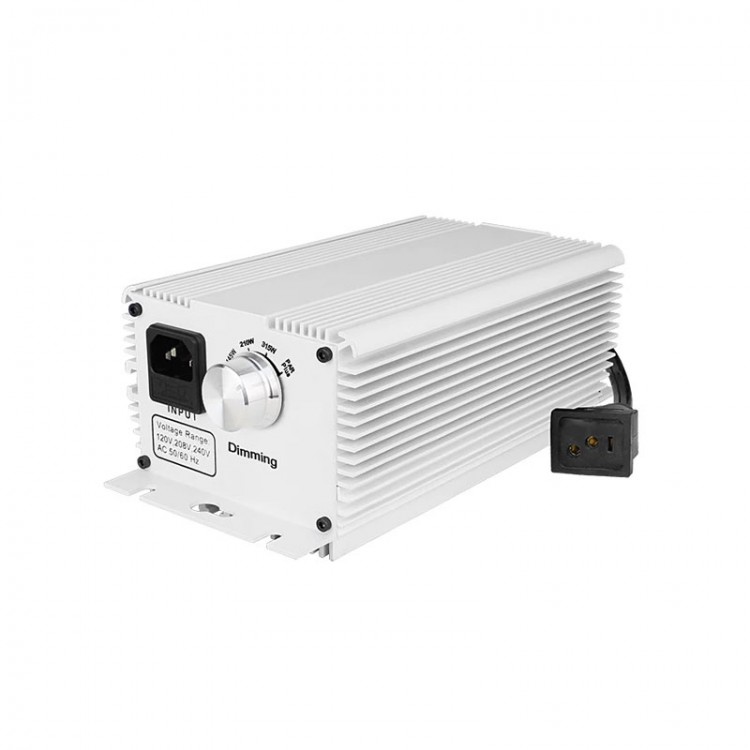

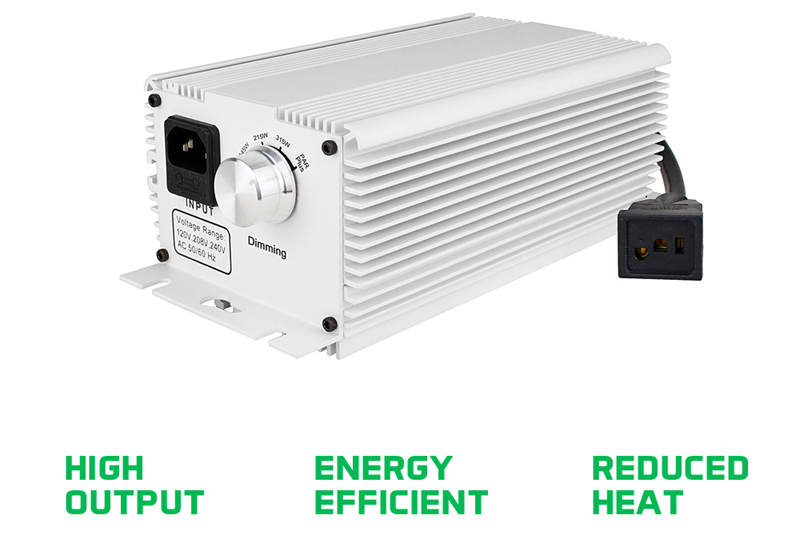

315W CMH/HPS HID Ballast Electronic Ballast Low Frequency For Agriculture Indoor Hydroponic System

315W CMH/HPS HID Ballast Electronic Ballast Low Frequency For Agriculture Indoor Hydroponic System

Description:
Designed for Ceramic Metal Halide technology the CMH 315W Lighting System reflector provides maximum lumen intensity, uniform distribution, and deep canopy penetration. The horizontally installed CMH bulb provides an efficient and complete spectrum, with higher efficiency and less heat output when compared to HPS or MH lamps. Designed for use with the 315W CMH bulb, it works with nearly any 315W PGZX18 base single-ended CMH bulb.

Manufactured with a German textured aluminum reflector and featuring a low frequency, square wave technology ballast with integrated soft start the CMH 315W Lighting System is a smart and economical way to take advantage of the latest technology in hydroponic growing and indoor gardening.

Features:
* Low Frequency Square Wave Digital Ballast
* Intelligent Control Auto-adaptive Light Wane Technology
* Dimmable Ballast With Knob Control
* Patented Output Control To Maintain Maximum PAR
* Value Over Lamp Life
* Internal RF Shielding
* Grow Lamp Compatibility: CMH, MH, HPS

Specifications:
- Power: 315W
- Input voltage (AC): 120V/208V/240V, 50/60Hz
- Line Current: 2.83A at 120V, 1.63A at 208V, 1.42A at 240V
- AC inrush current (Max.): Cold start 50A/230V
- Rated Power: 340W
- Output voltage (AC): 100V
- Light Decay Control attenuation: <5%/20000h
- Power factor (PF): >0.99
- THD (input): <6%
- Efficiency: >91% at 240V
- Operating Frequency: 140~160Hz
- Trigger voltage: 6KV (MAX.)
- Ballast Power dissipation: 25W
- Dimmable Mode: Knob control
- Out power/Light output: 0W (Off), 145W, 215W, 315W, 355W
- Communication interface: ----
- Lamp wire length (Max.): >66 feet/20 meters (16 gauge lamp wire)
- Protection function: Protection of short-circuit, open-circuit, over-voltage, under-voltage, over-current, hot lamp startup, lightning, over heat, and lamp failure with lamp life warning

Package Included:
- 1 x Set of HID Ballast

Note:
1. Please contact us when placing a order:

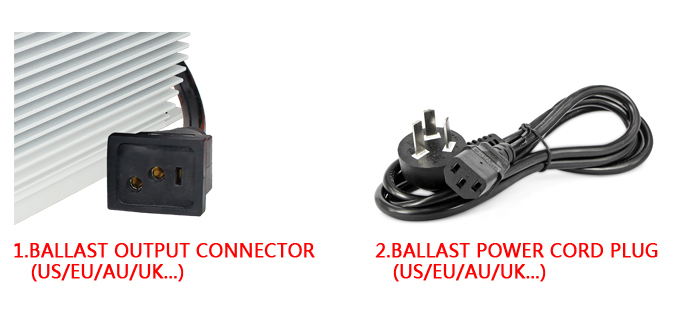

A. Ballast output connector specifications. (US/EU/AU/UK)
B. Ballast power cord plug specifications. (US/EU/AU/UK)
C. Please indicate the lamp color temperature specification of the kit
2. Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
