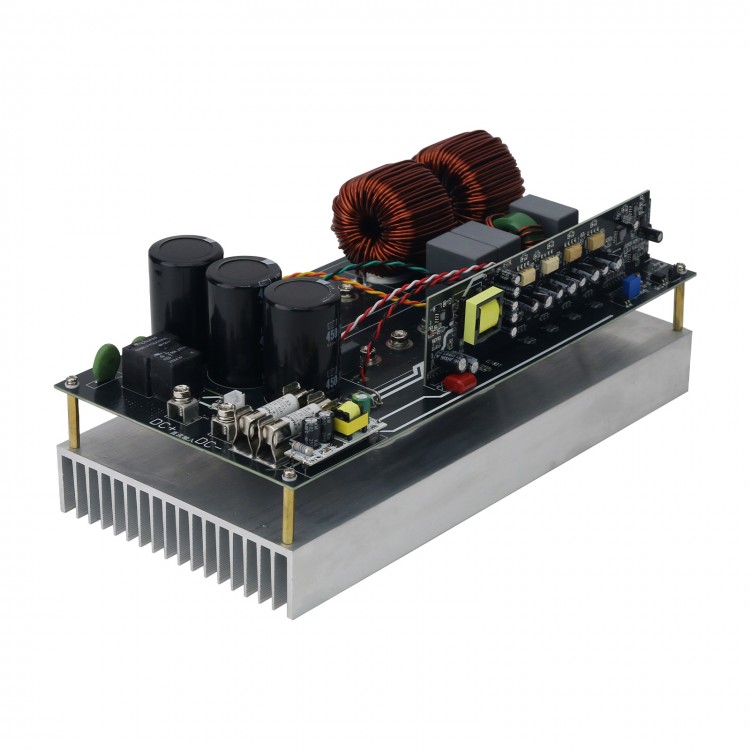

320V-450VDC Input 10KW New Energy Charging IGBT High Power Sine Wave Inverter Board Rear Stage Board
Description:
- It is an ultra-stable pure sine wave back-stage inverter motherboard. This motherboard does not require auxiliary power supply.
- The voltage input DC 320-450V/850V can be used as a direct power supply. The output AC110V 120V 220V 230V (95V to 285V adjustable) 50HZ 60HZ can be selected.
- This motherboard has a full power of 10KW/12KW. This circuit uses IGBT modules as power devices.
- This machine generates low heat during operation, works stably and reliably, has high efficiency, high reliability, comprehensive protection, and comprehensive performance that beats the power frequency in seconds.
- This board is a sine wave inverter backstage board. The main-board driver adopts a fully isolated optocoupler driver and a dedicated driver for the IGBT module. All interference with high power and load is minimized.
- It adopts the large-volume radiator has high power and low heat output under load. The measured load is 5000W without fan cooling. The operating temperature rise at full load is also low, the power margin is large, and the work is stable and reliable.
- Product dimensions: 300mm x 150mm x 120mm.
Package Included:
- 1 x Sine Wave Inverter Board
